Example Views
In the following, three example remote control views are presented to give a glimpse of the possibilities with the DHDOM remote control software.
Console Layout

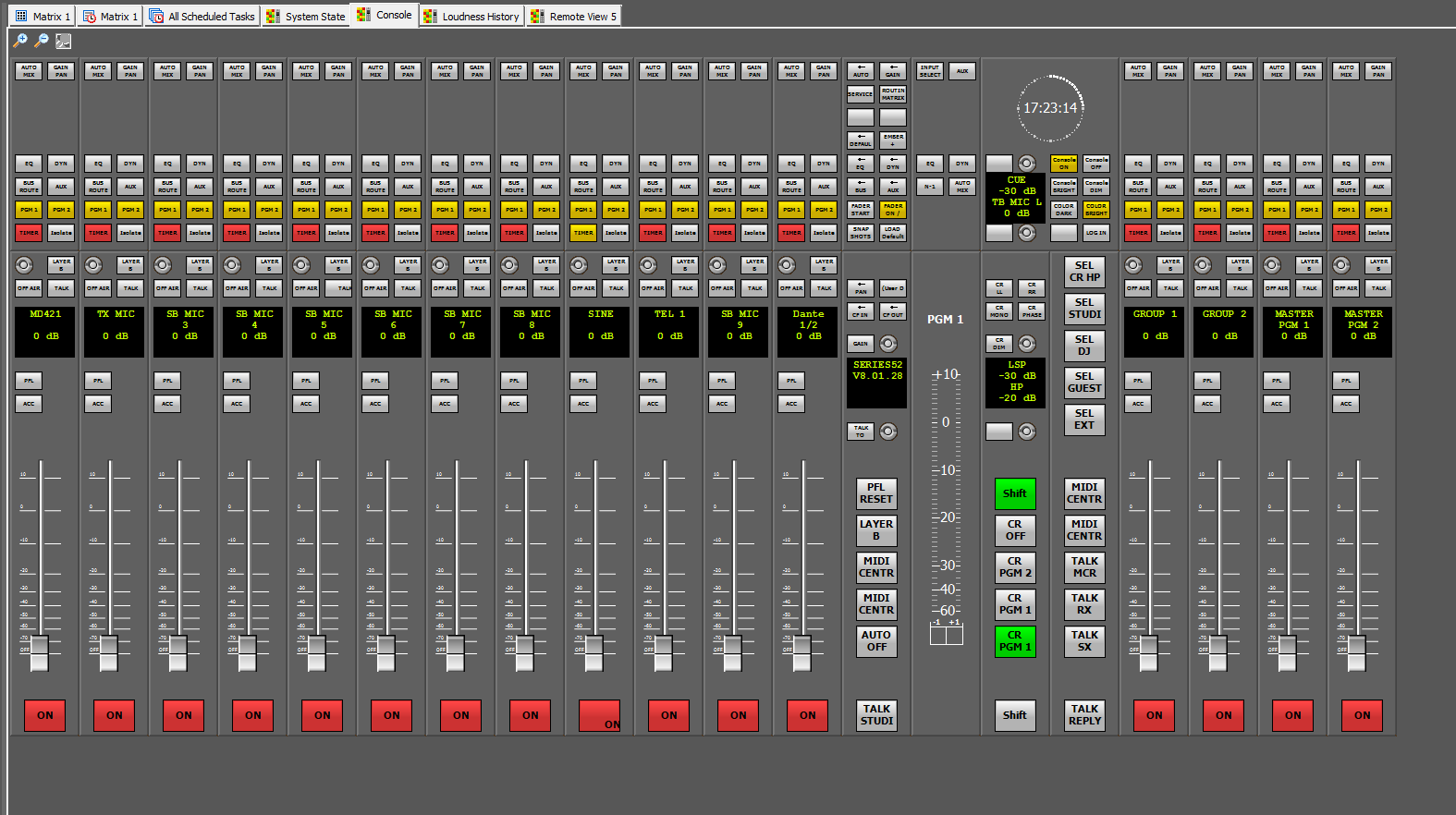

This console layout was created by using all physical elements existing on the console surface. It was supplemented by some logical elements such as ppm and clock element.
Console Layout
Air Chain

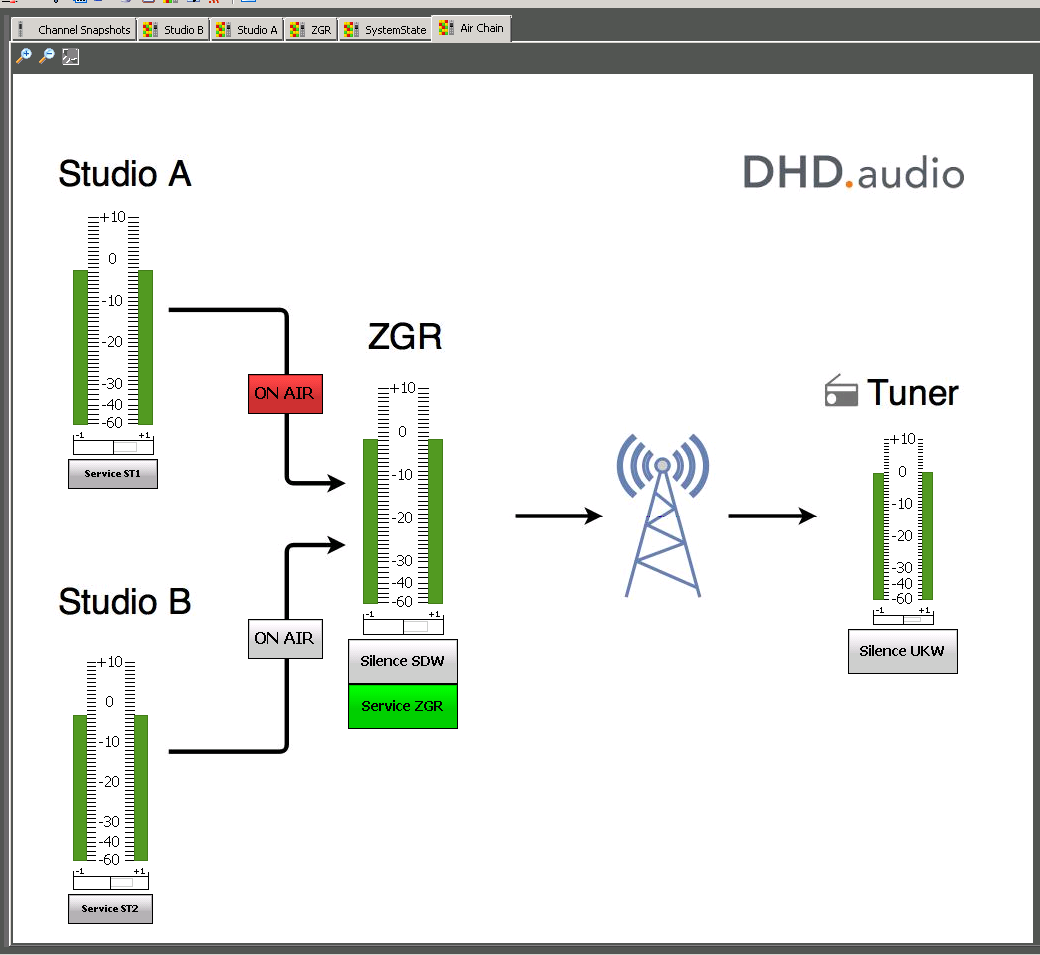

This view was created using logical elements of the console and a background picture to display the air chain of a DHD system consisting of two studios and a routing core device.
Example Broadcast Air Chain
System State

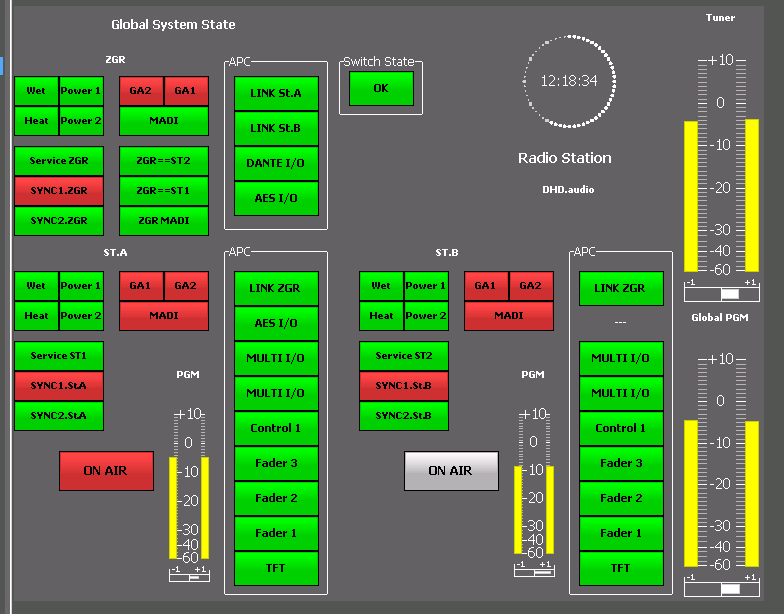

This view was created using logical elements of the console to display the complete state of a DHD system consisting of two studios and a routing core device.
Example System State
