Monitoring Sources
Choose the entry Workstations
in the Administration

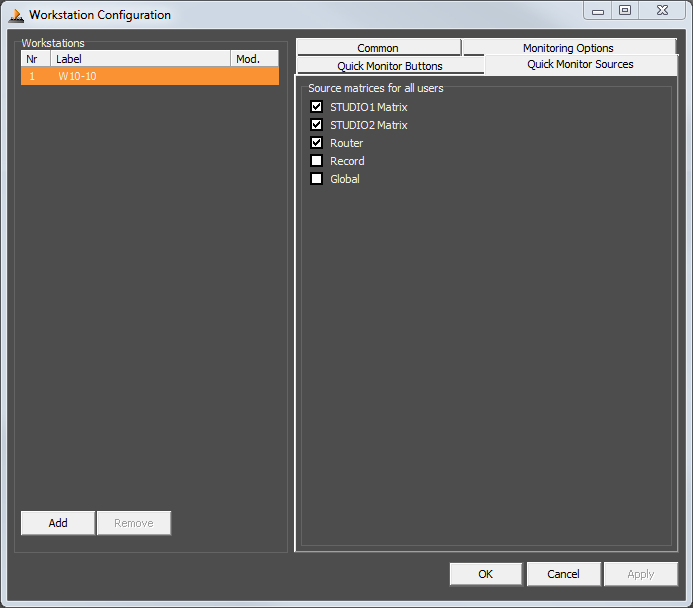

menu. The Workstation Configuration
window appears. On the Quick Monitor Sources
tab, you can define which sources are provided on which workstation for monitoring applications. Thus a user can listen to signals even if he has no access to the matrices that include the signals.
Select the workstation you want to handle in the list on the left-hand side. Enable the sources of the matrices for each workstation by activating the checkboxes.
Press Apply
to save your settings if you want to continue with the workstation configuration or press OK
to save and close the Workstation Configuration
window. It is possible to undo all settings and reload the state you had saved last by pressing Cancel
.

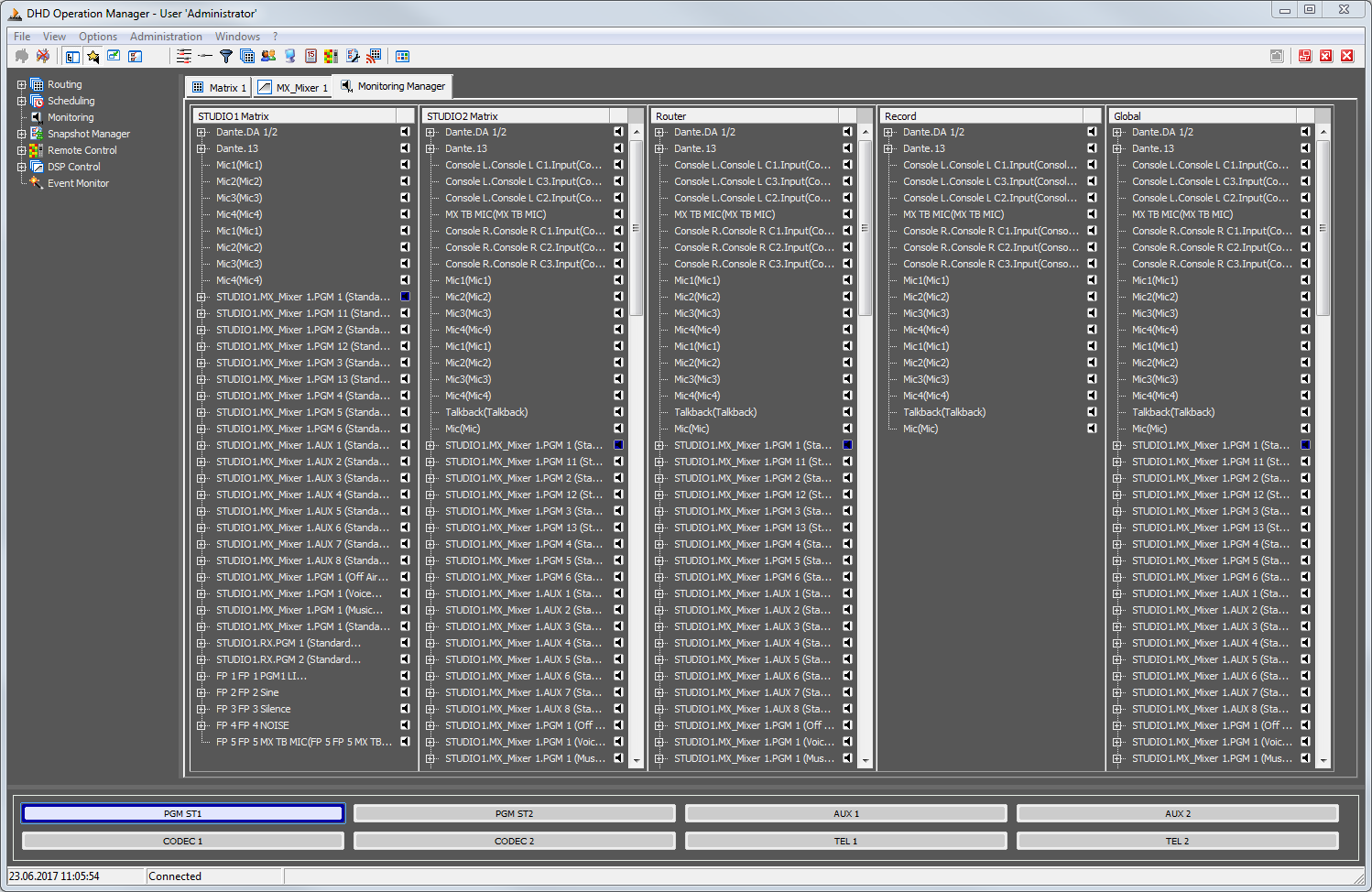

The enabled sources are now available on the Monitoring Sources
tab and can be used directly or to assign them to quick monitor buttons. Double click the entry Monitoring
in the list on the left-hand side of the DHDOM window to open this tab.
Click the loudspeaker symbols next to the sources to listen to the signals or use drag'n'drop to assign the sources to quick monitor buttons.
