Administration Menu

The Administration menu has one entry - Preferences.

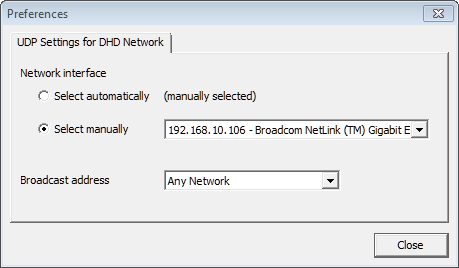

The Preferences window shows network settings for the DHDCS

Note
In general no settings need to be changed here. The default values work for the most of the installations.

With the Network interface option you can change the network interface card which should receive the UDP broadcasts from the DHD network:

Select automatically: Auto detection and selection is active.
Select manually: Choose the designated network adapter.

In the Broadcast address box, you can set the address range for outgoing UDP broadcasts. The possible selections here depend on your chosen network interface. The last bit must always have the value ''255'.
