Main Window

To open the DHDCS application window, follow these steps:

Start any DHD application, for example Toolbox8, to make sure that the DHDCS is active. You can identify an active DHDCS when the small orange DHD icon is shown in the notification area of the Windows Taskbar.
Double click this icon. The DHDCS application window opens. Alternatively, you can also right-click on the icon in the notification area and click Open.

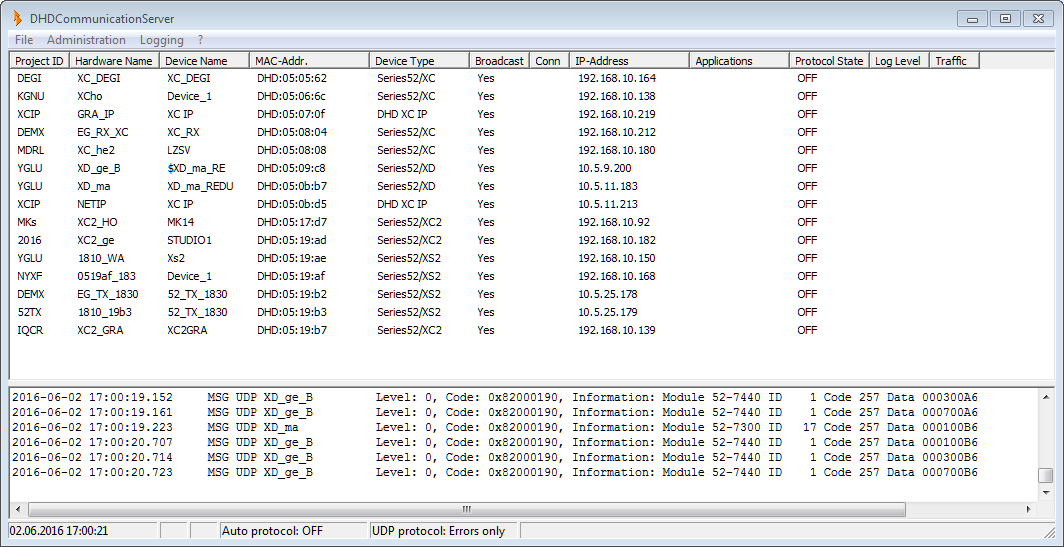

DHDCS Main Window

The application window consists of the following main parts (top to bottom):

Menu bar - there you find menus with commands that can be used to control the functions of the DHDCS.
Device list - shows all devices, that are visible in the network. The devices in the list have registered automatically using UDP broadcast messages. Also manually added devices will be shown. The listed details for each device are explained in the next section. (see also Add Device)
Logging area - shows all messages that are transferred from the devices to the DHD Communication Server. The data can be transferred via the serial port or via Ethernet using the TCP/IP or UDP protocols. You can filter the shown messages by setting the logging options

Tip
You can change the size of the device list and the logging area by moving the split bar between them. When the pointer becomes a double-headed arrow, drag the pointer to move the split bar.

Status bar - shows the current date and time, status of the Auto Protocol and how messages are filtered in the logging area.

Device List

The list is divided in 12 columns showing the following information for each device:

column	description
Project ID	This is a four-digit project ID of the device, which is broadcast by the device.
Hardware Name	Shows the Hardware Name which can be set in the `Network Configuration` settings in the `Maintenance Window` (Toolbox5)
Device Name	These are the first ten characters of the device name as broadcast from the device.
MAC-Addr.	Shows the MAC address of the device. If the device was not automatically registered via the UDP protocol, this information is not available.
Device Type	Shows the type of the device.
Broadcast	The value `Yes` means that the device is broadcasting UDP messages. If this column is empty, there is no UDP connection possible at the time.
Conn	Here, the kind of data connection is indicated. COM means that the device is connected to the PC via a serial port. TCP means that there is a direct connection using the TCP/IP protocol.
IP-Address	Shows the IP address of the device.
Applications	This column shows, which DHD applications are connected to the corresponding device. The abbrevations have the following meaning: • `TB4`: Toolbox4 • `TBX`: Toolbox45 • `SMR`: Setup Manager • `SRV`: DHD Communication Server • `MTN`: Maintenance Window of Toolbox 4 • `MT5:`Maintenance Window of Toolbox 5 or Toolbox8 • `OS`: Operation Server • `RT4`: Route • `RCS`: Remote Control Software
Protocol State	This column indicates whether the logging for the device is active (`ON`) or not active (`OFF`). The additional information ON (by <Client>) indicates that the data connection was started by a DHD application. If the value `ON` is displayed, there is always a direct TCP/IP-connection or a serial connection.
Log Level	Shows the currently set `Log Level` for this device, default value is 0. Log Level 0 logs only the most critical system events like reboots or I/O box reconnections. Log Level 6 provides additional detailed data about events like pressing a button, fader movements or control data sent from automation systems. To change the Log Level, right-click on the selected device. In the contextual menu you can select the Log Level.
Traffic	Shows `high` if the broadcast traffic from the device is high.
