Connecting modules to the XS Core

The control module and I/O boxes have to be connected to the APC ports of the 52/XS Core 52-1804. It is important to connect the peripheral modules to the correct APC port.

Important
Use always shielded CAT5 or CAT6 ethernet cables (at least S/UTP, F/UTP or SF/UTP) to connect these modules to the XS core.

In the following table you can find the assignment of the control module, I/O boxes and DeviceLinks to the APC ports.

Name of the APC port52-1804
APC 152-1114 (52-1104) 52/DX control module
APC 2I/O box 3 / DeviceLink 3
APC 3I/O box 2 / DeviceLink 2
APC 4I/O box 1 / DeviceLink 1

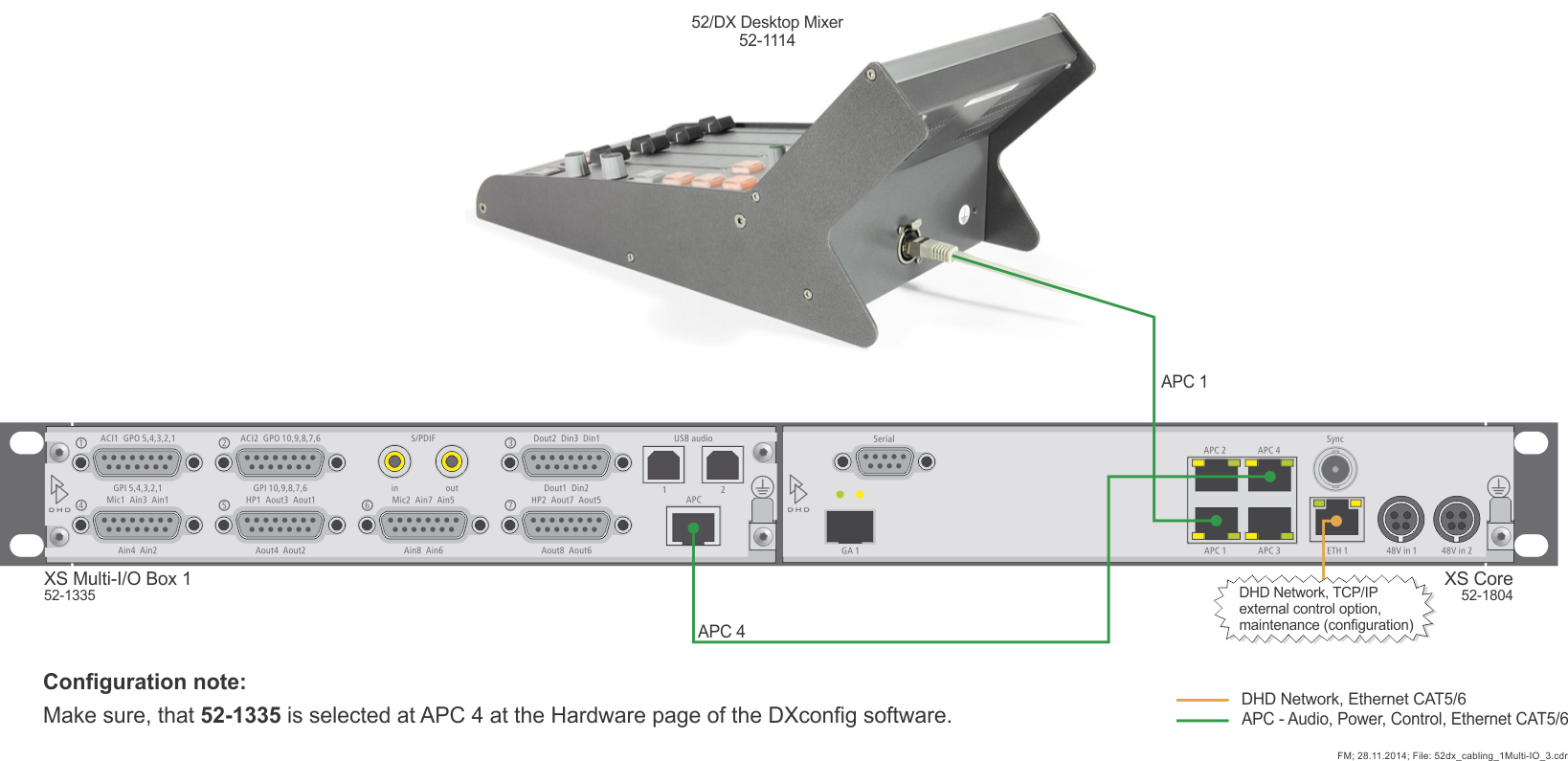

Example 4 Fader 52/DX and 1 Multi I/O box

Important
Use minimum Firmware version 07-04-19 and DXConfig version 7-4-8-0 or the version on the CD supplied with the console, which may be a later version.

Cabling Example: 52/DX Bundle 52-1991D
