52-1256A/B

Conducted emission of APC Port using AAN, 150kHz-30MHz

conducted emission 150kHz-30MHz

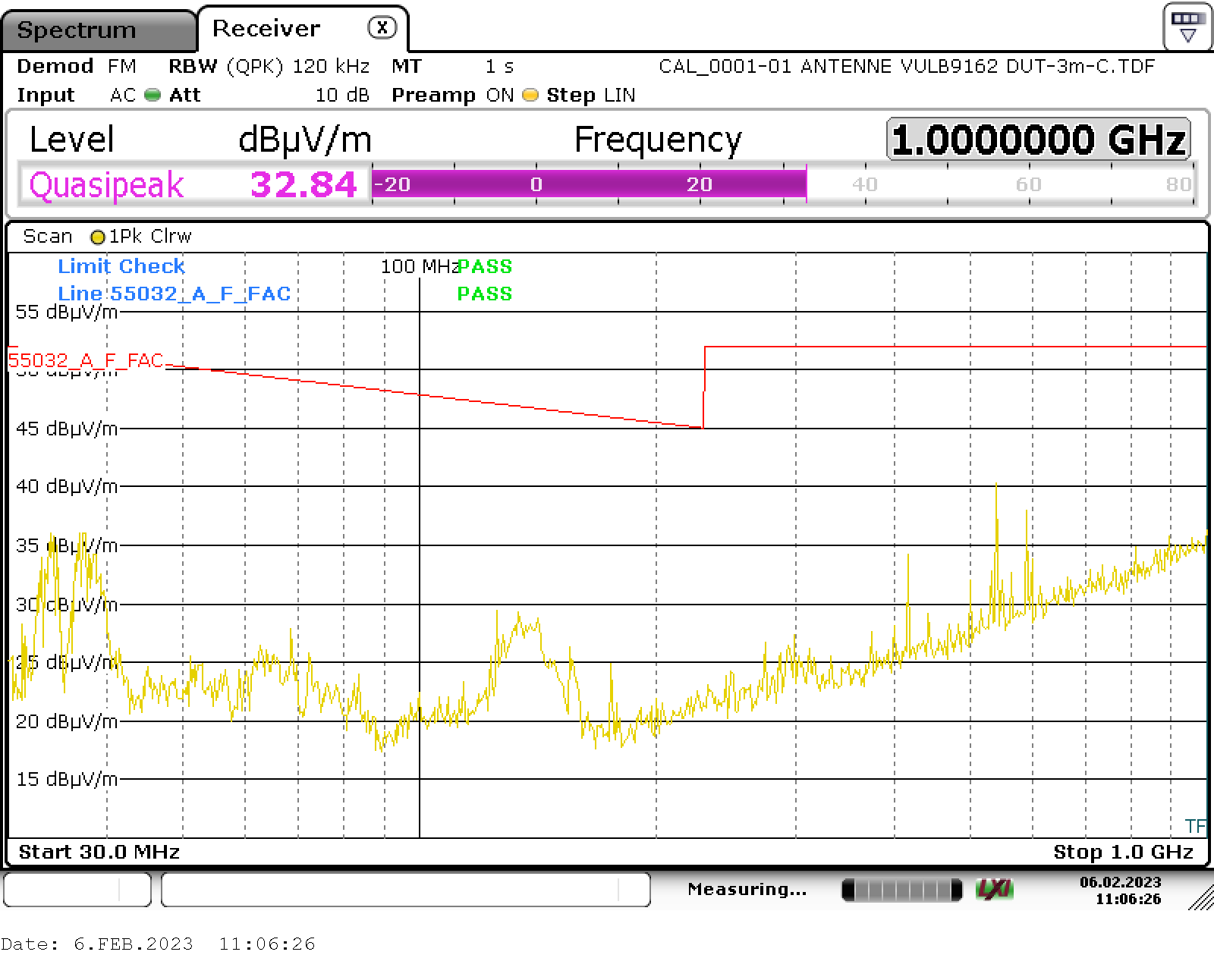

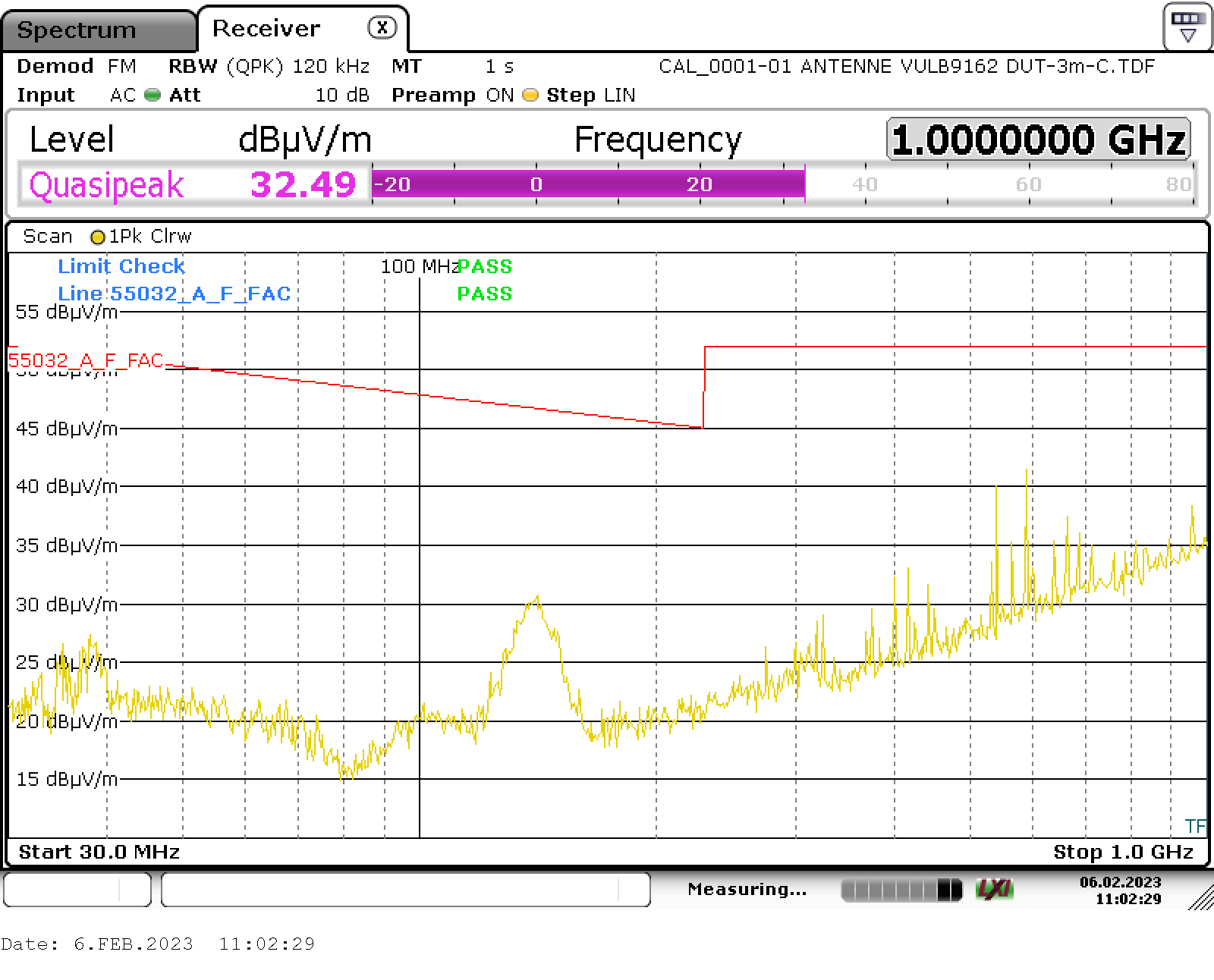

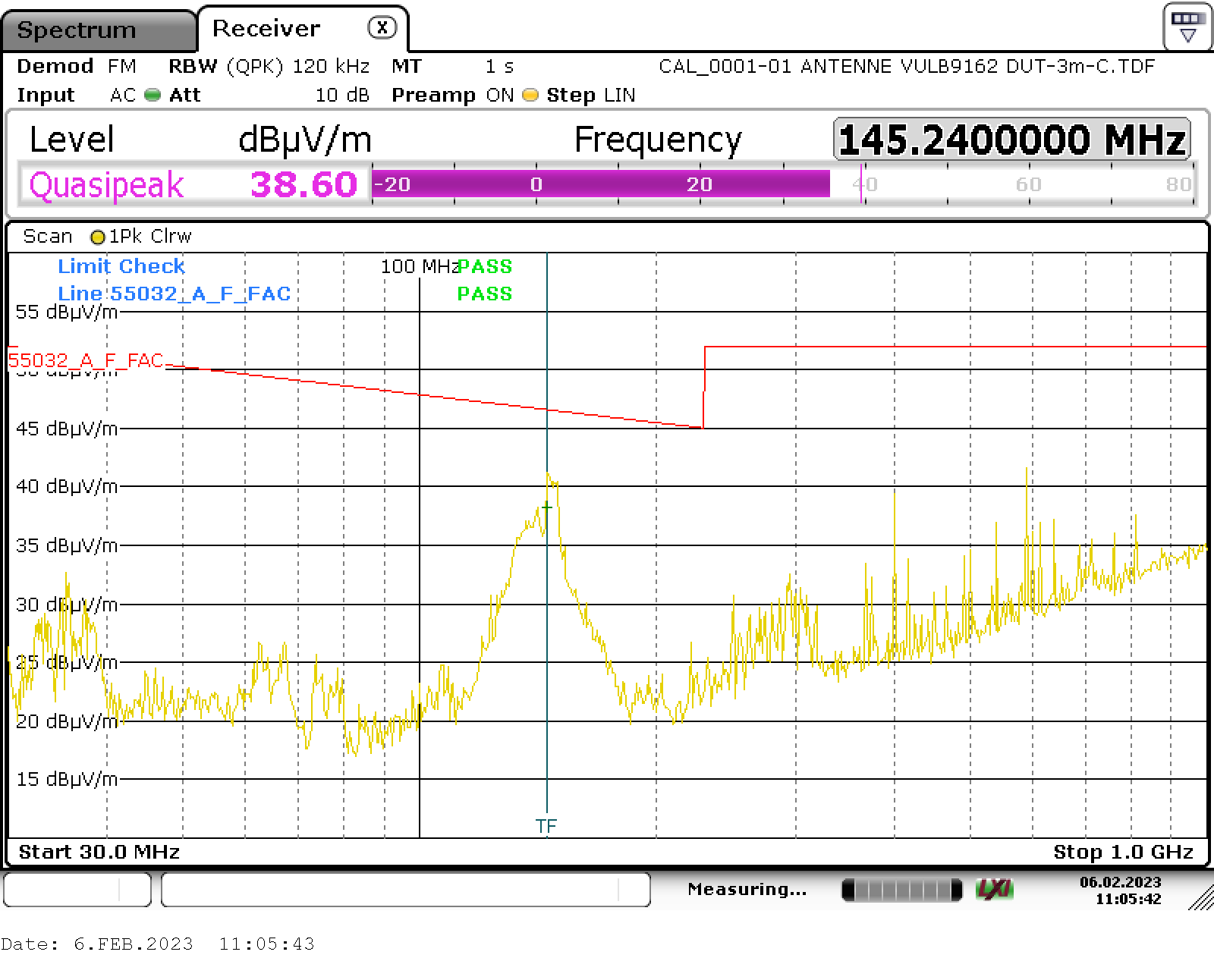

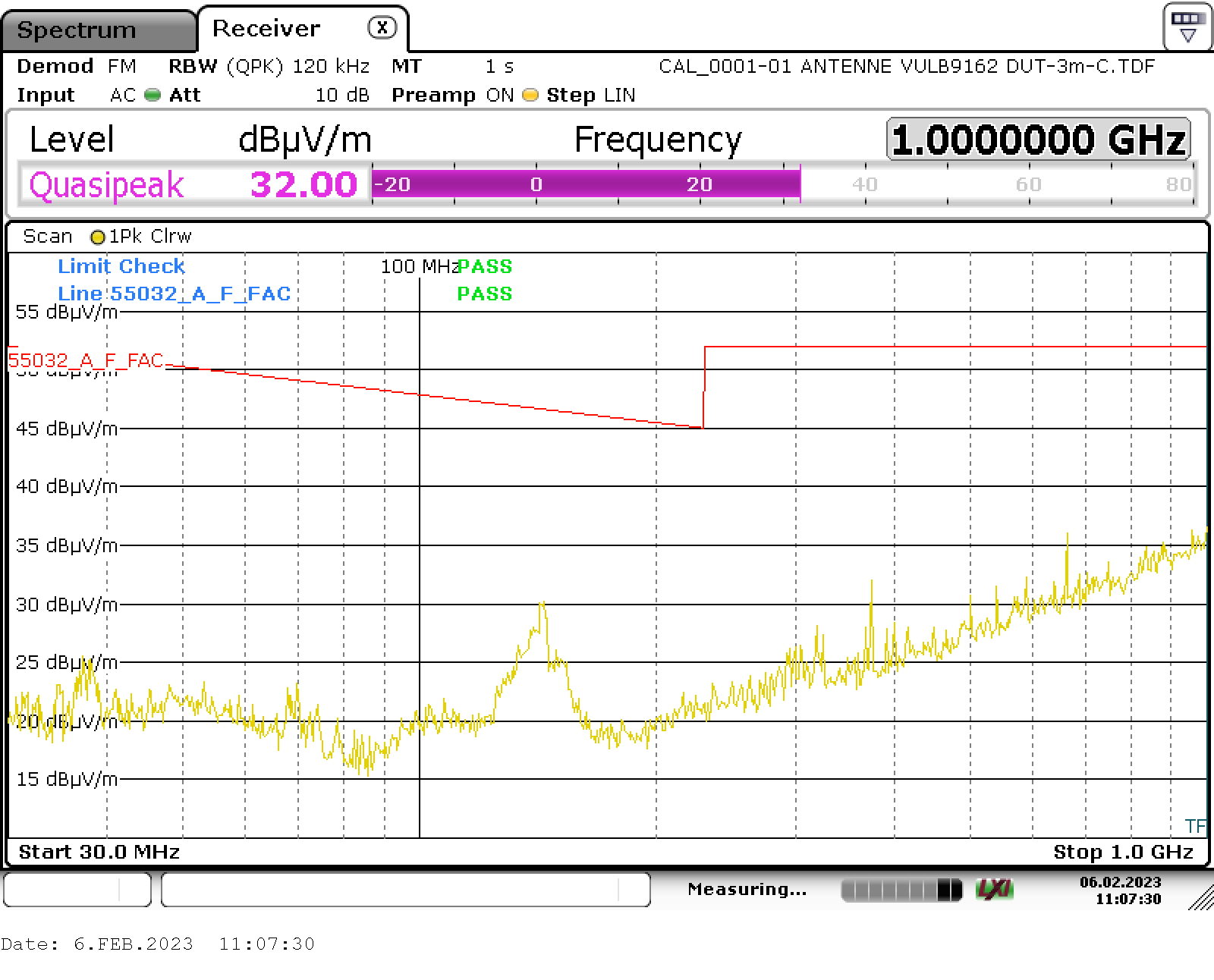

Radiated emission in FAR, 30MHz-1GHz

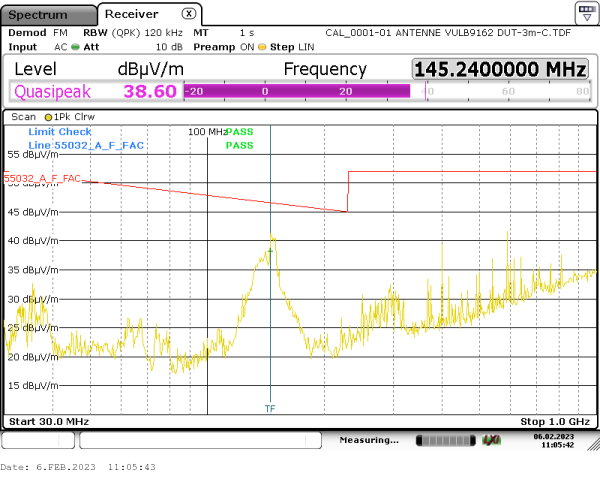

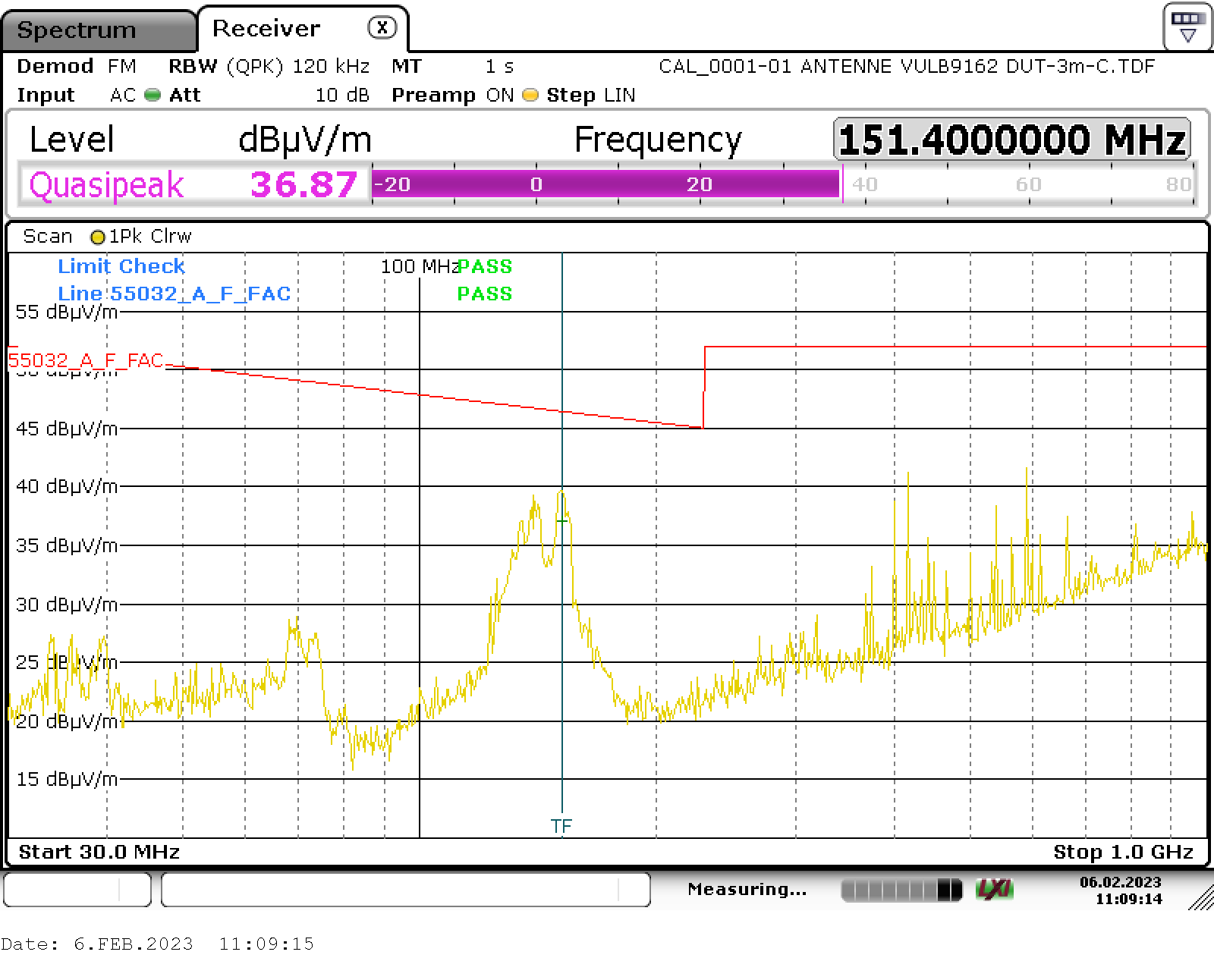

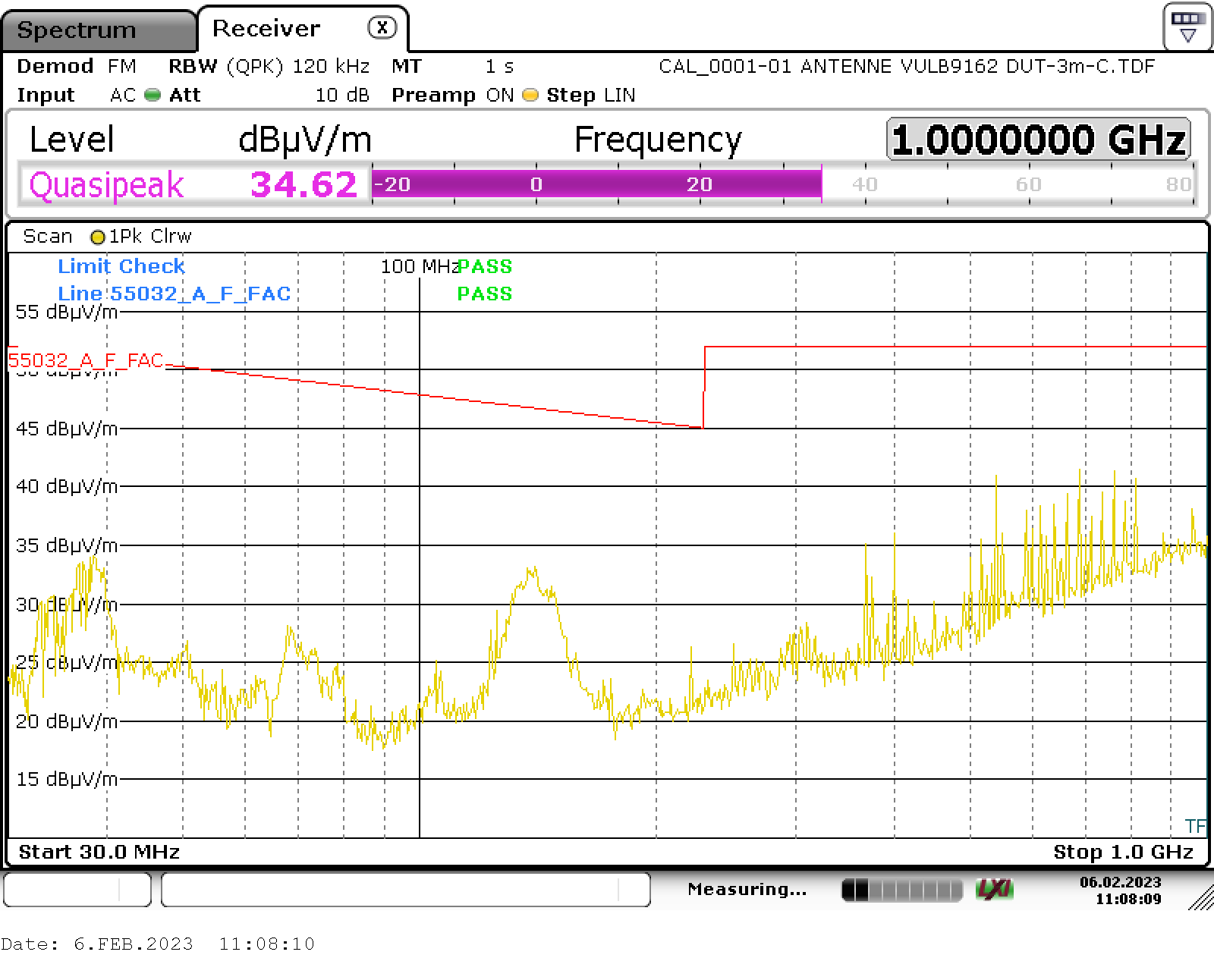

radiated emission 30MHz-1GHz 0° horizontal radiated emission 30MHz-1GHz 0° vertical radiated emission 30MHz-1GHz 90° horizontal radiated emission 30MHz-1GHz 90° vertical
radiated emission 30MHz-1GHz 180° horizontal radiated emission 30MHz-1GHz 180° vertical radiated emission 30MHz-1GHz 270° horizontal radiated emission 30MHz-1GHz 270° vertical

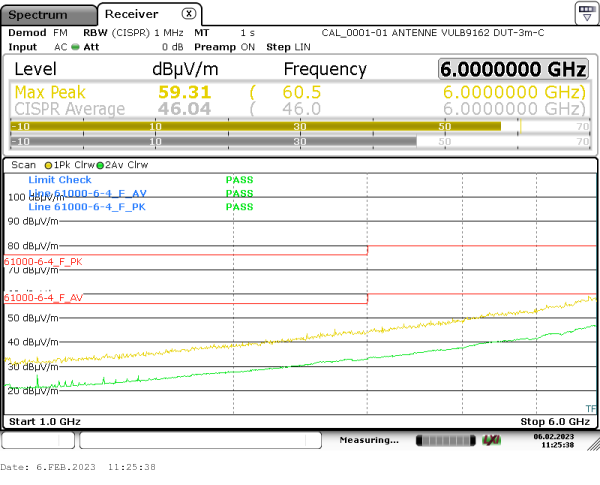

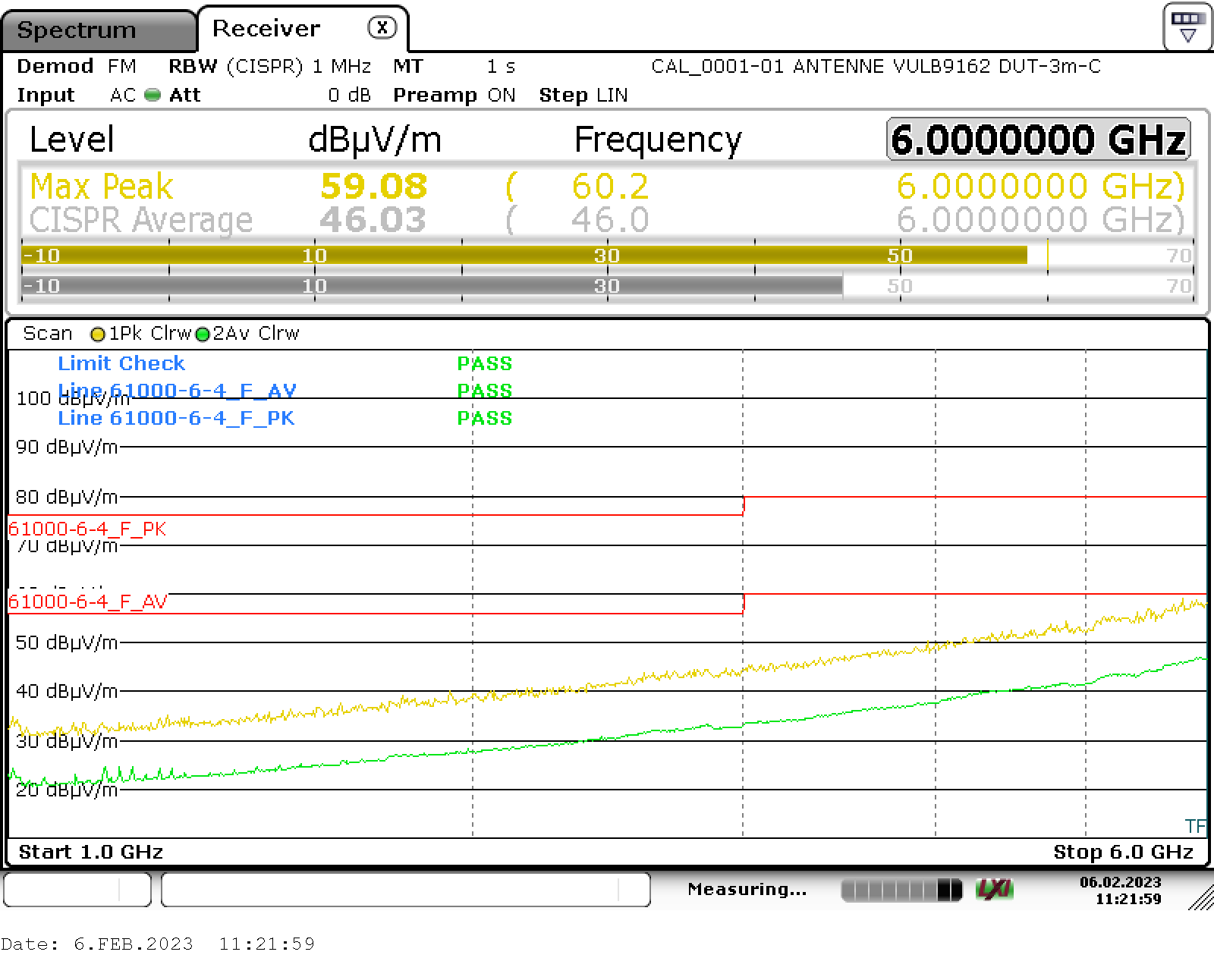

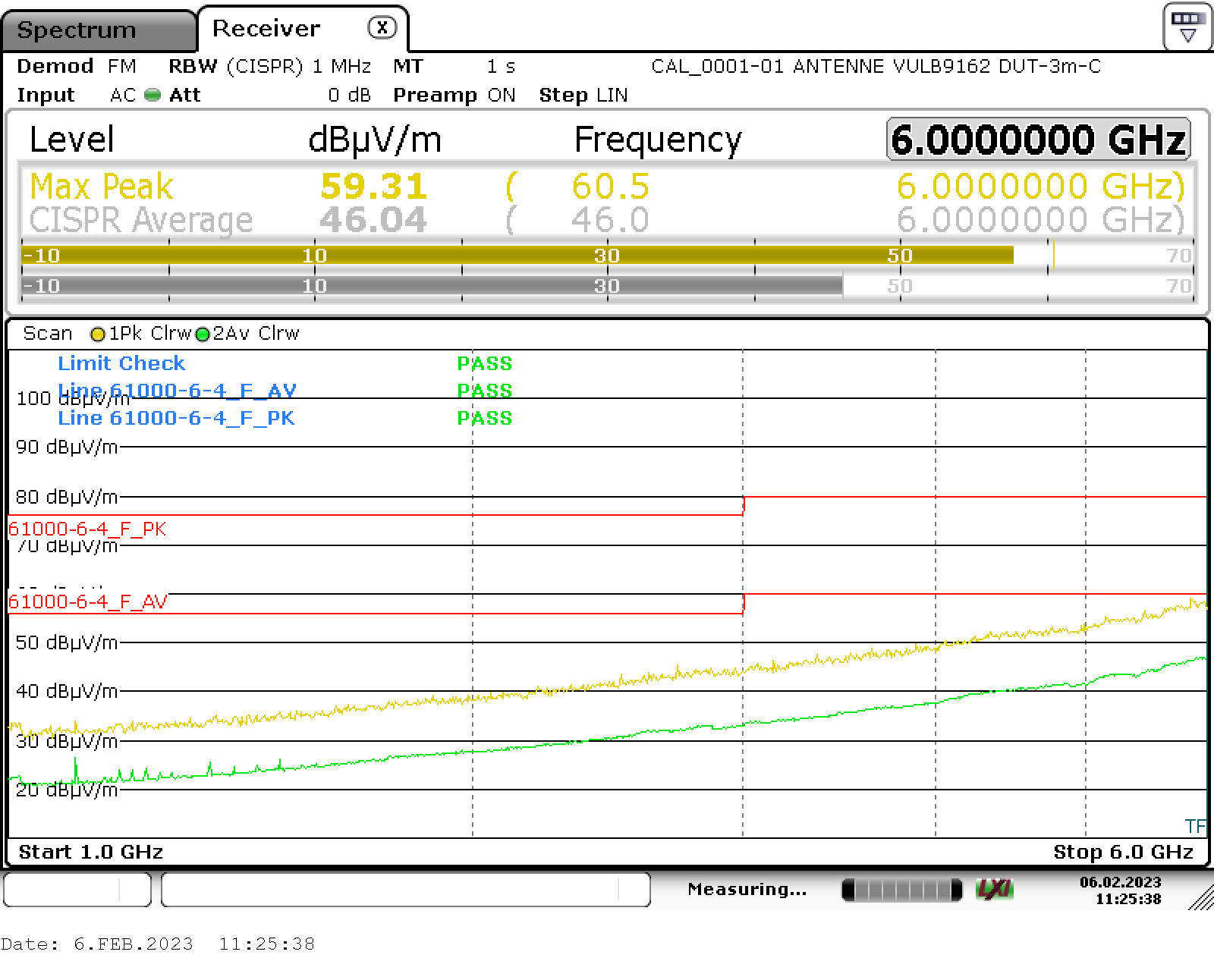

Radiated emission in FAR, 1GHz-6GHz

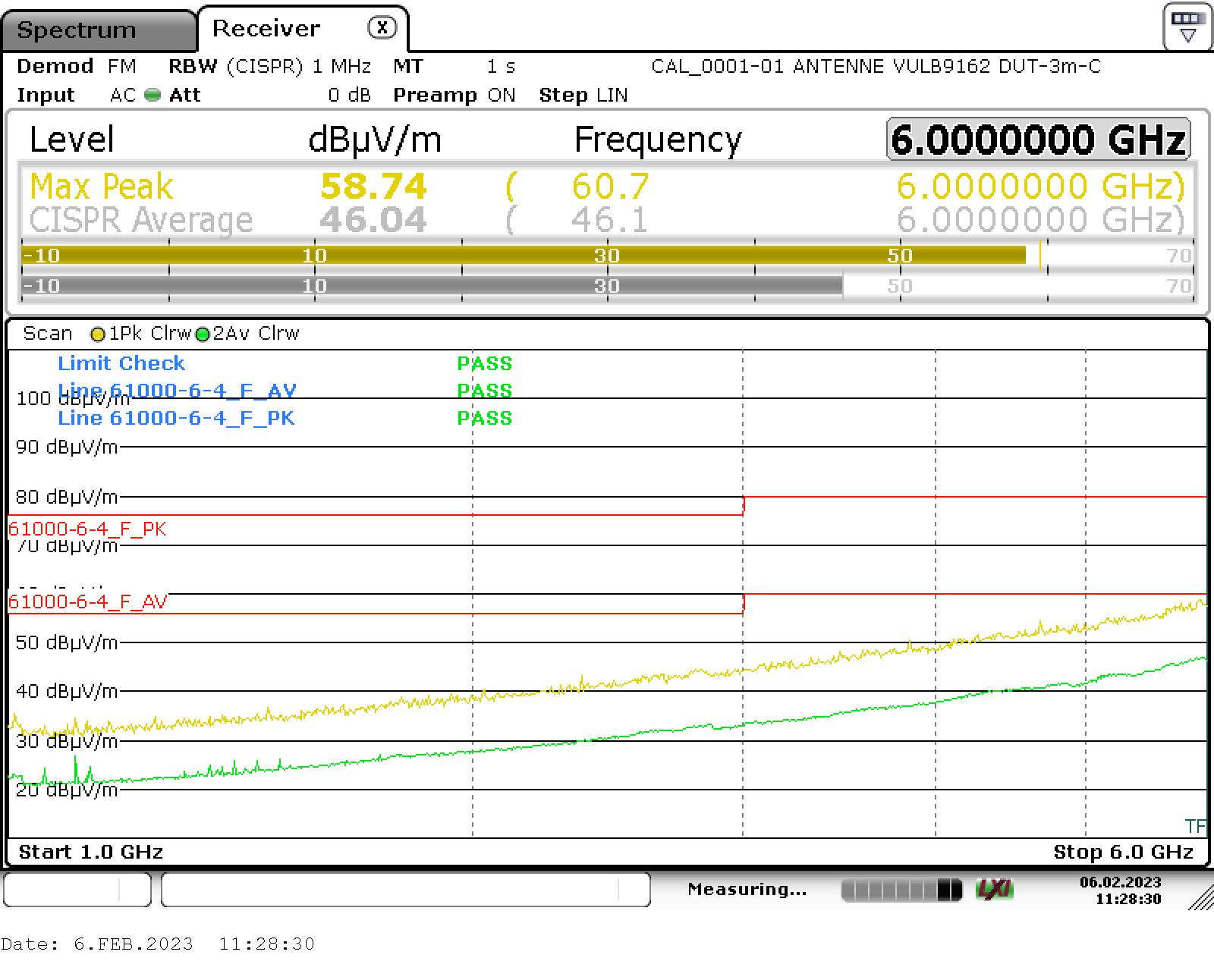

radiated emission 1GHz-6Ghz 0° horizontal radiated emission 1GHz-6GHz 0° vertical radiated emission 1GHz-6Ghz 90° horizontal radiated emission 1GHz-6GHz 90° vertical

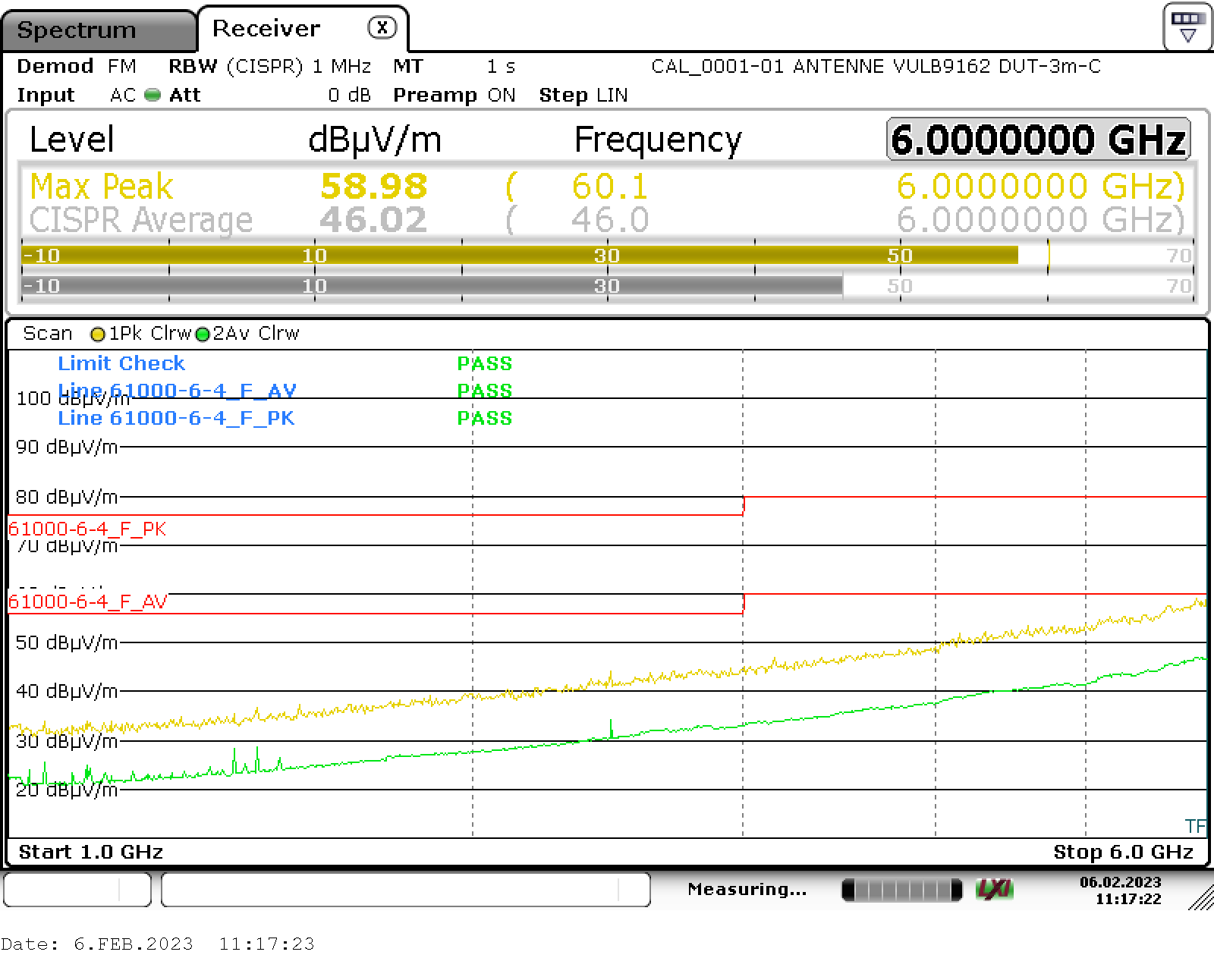

radiated emission 1GHz-6Ghz 180° horizontal radiated emission 1GHz-6GHz 180° vertical radiated emission 1GHz-6Ghz 270° horizontal radiated emission 1GHz-6GHz 270° vertical

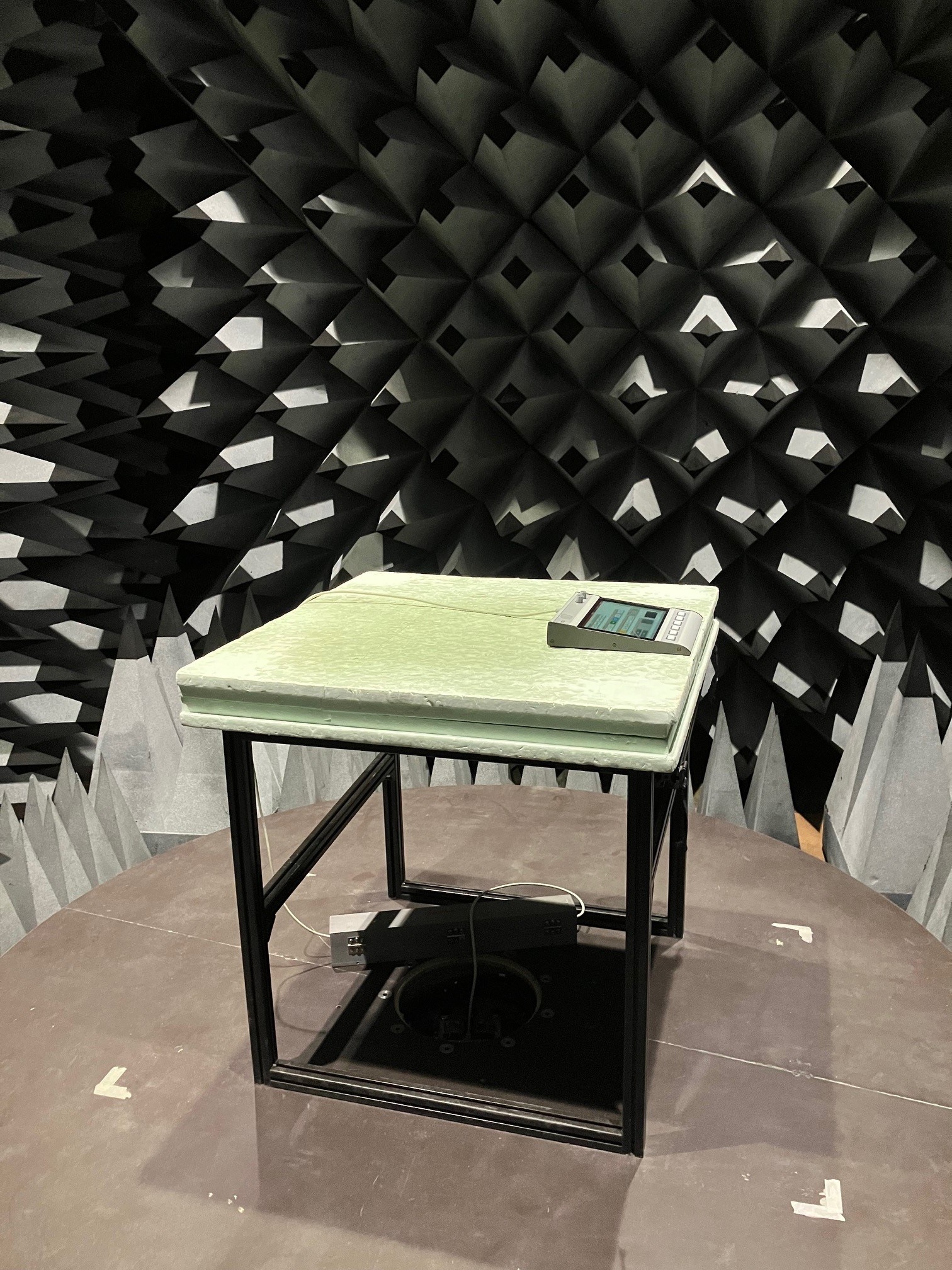

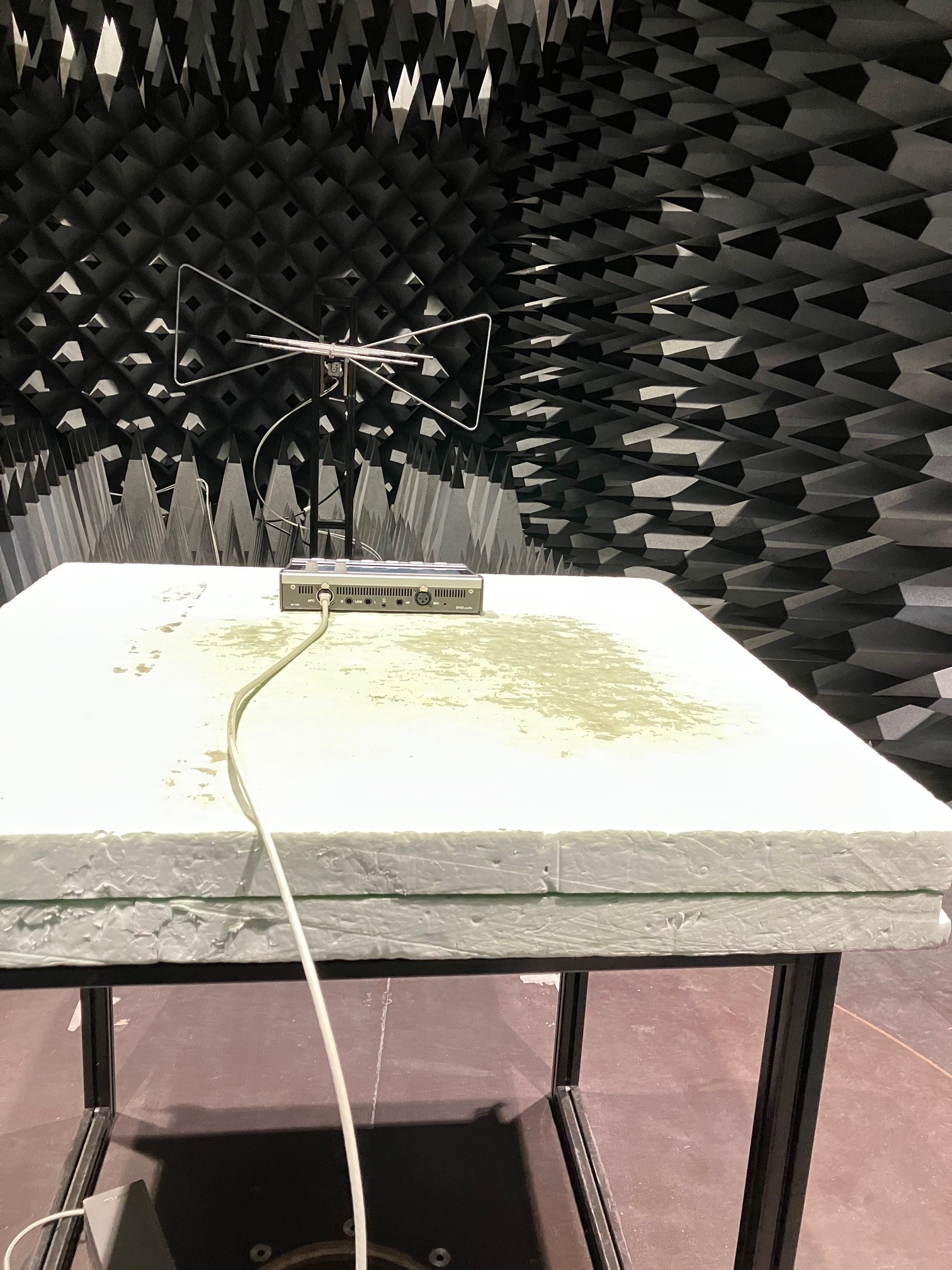

FAR setup for radiated emission measurement

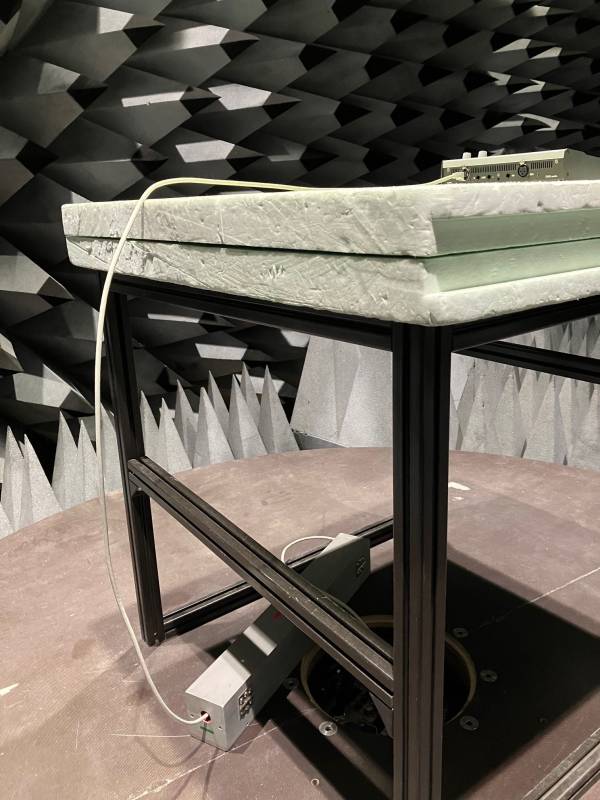

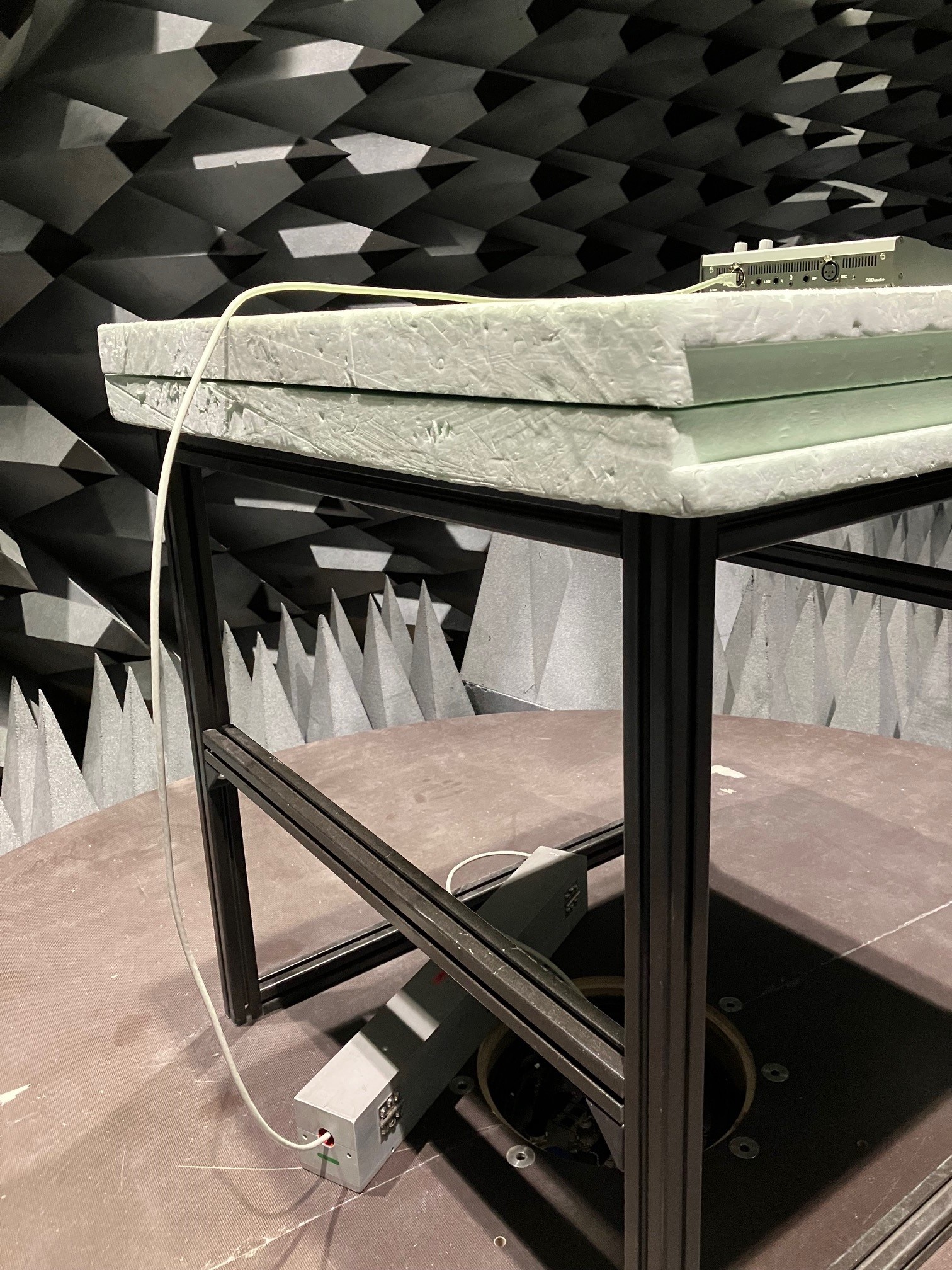

DUT on turntable DUT on turntable antenna

AAN setup for conducted emission measurement

DUT on wooden table, AAN on conductive floor

Measurement data

Full listPeak list
1256_7520_7498_poe.txt1256_7520_7498_poepl.txt
1256_30m-1g_0_h.txt1256_30m-1g_0_hpl.txt
1256_30m-1g_0_v.txt1256_30m-1g_0_vpl.txt
1256_30m-1g_90_h.txt1256_30m-1g_90_hpl.txt
1256_30m-1g_90_v.txt1256_30m-1g_90_vpl.txt
1256_30m-1g_180_h.txt1256_30m-1g_180_hpl.txt
1256_30m-1g_180_v.txt1256_30m-1g_180_vpl.txt
1256_30m-1g_270_h.txt1256_30m-1g_270_hpl.txt
1256_30m-1g_270_v.txt1256_30m-1g_270_vpl.txt
1256_1g-6g_0_h.txt1256_30m-1g_0_hpl.txt
1256_1g-6g_0_v.txt1256_30m-1g_0_vpl.txt
1256_1g-6g_90_h.txt1256_30m-1g_90_hpl.txt
1256_1g-6g_90_v.txt1256_30m-1g_90_vpl.txt
1256_1g-6g_180_h.txt1256_30m-1g_180_hpl.txt
1256_1g-6g_180_v.txt1256_30m-1g_180_vpl.txt
1256_1g-6g_270_h.txt1256_30m-1g_270_hpl.txt
1256_1g-6g_270_v.txt1256_30m-1g_270_vpl.txt
