52-5620A/B/M

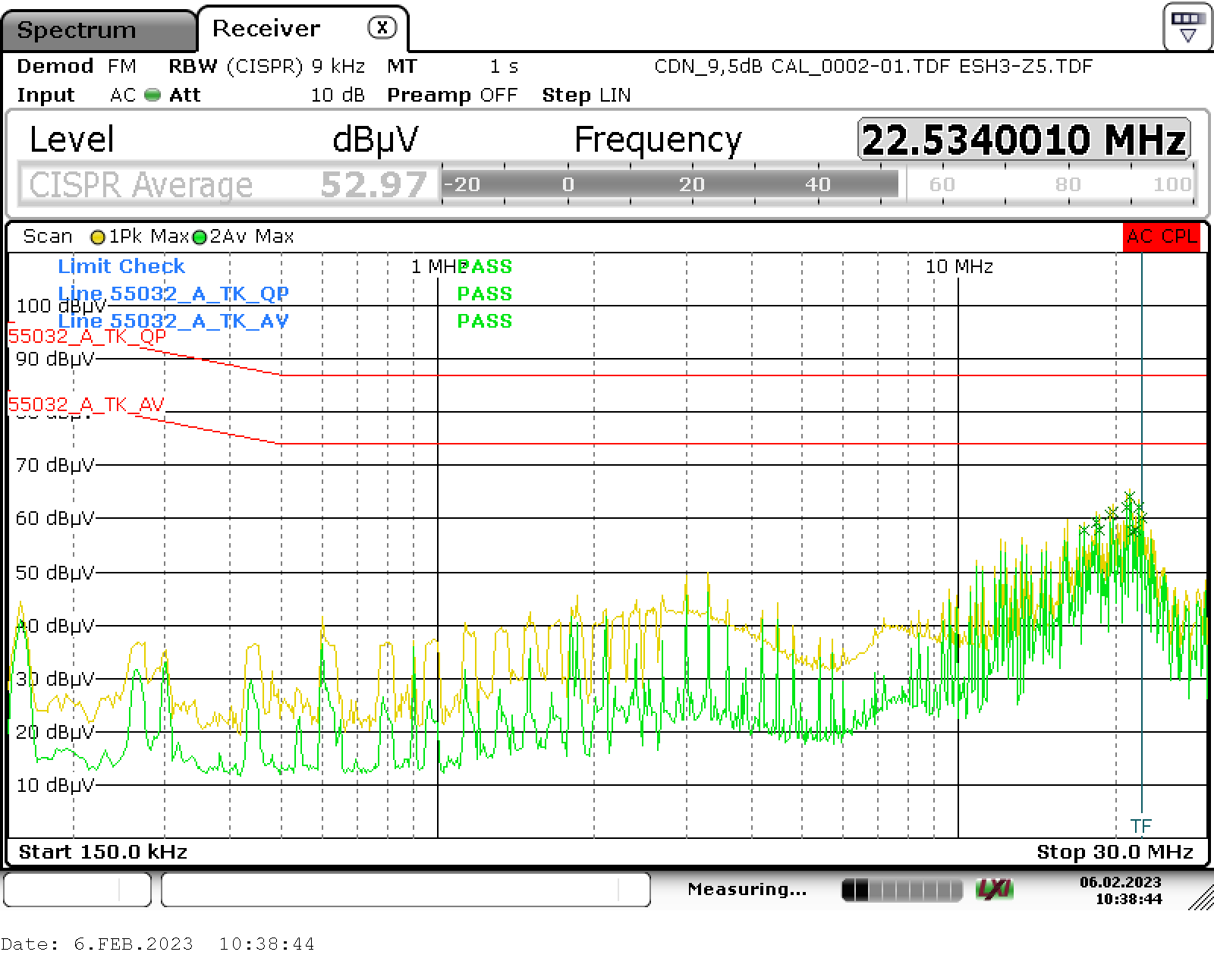

Conducted emission of APC Port using AAN, 150kHz-30MHz

conducted emission 150kHz-30MHz

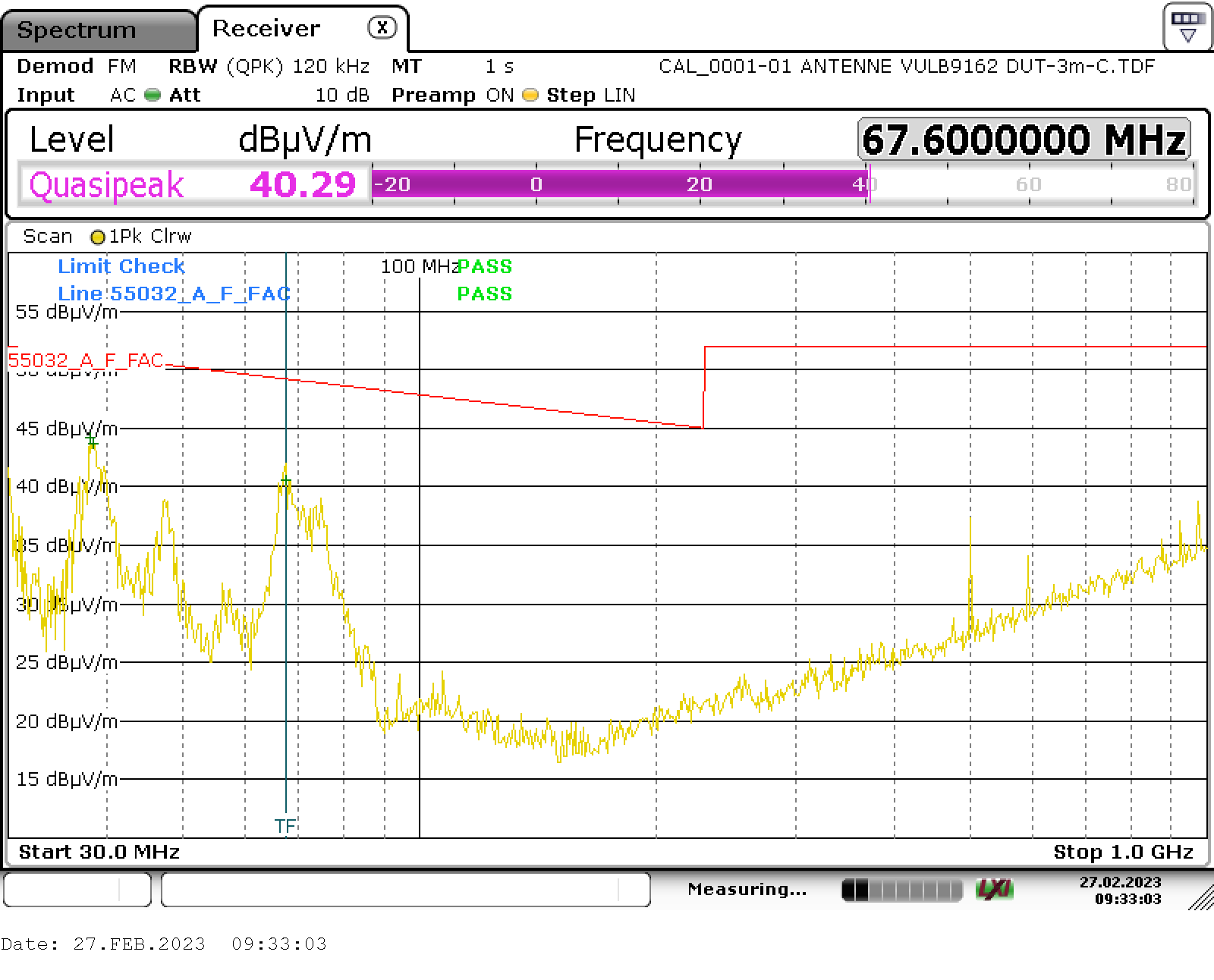

Radiated emission in FAR, 30MHz-1GHz

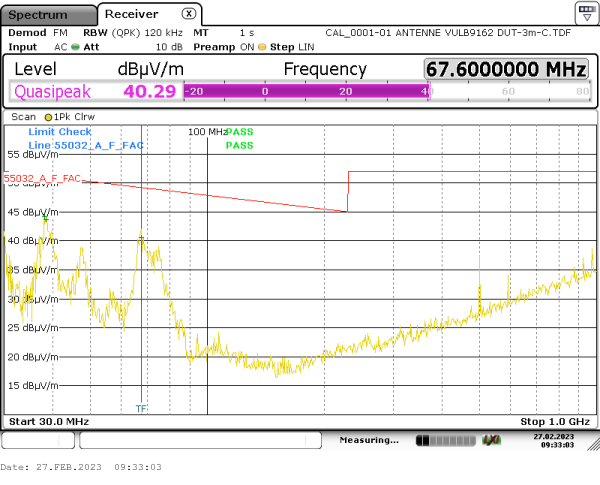

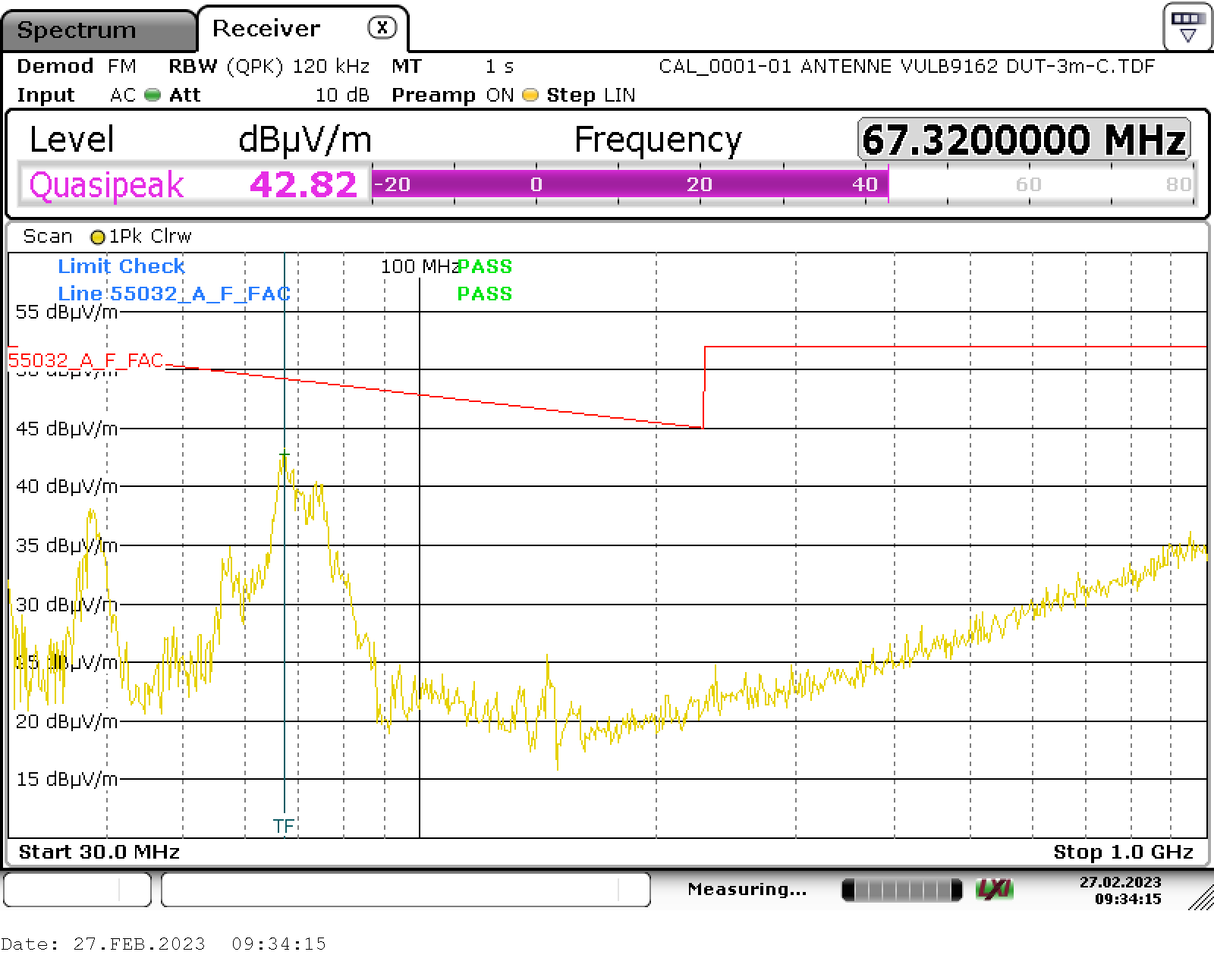

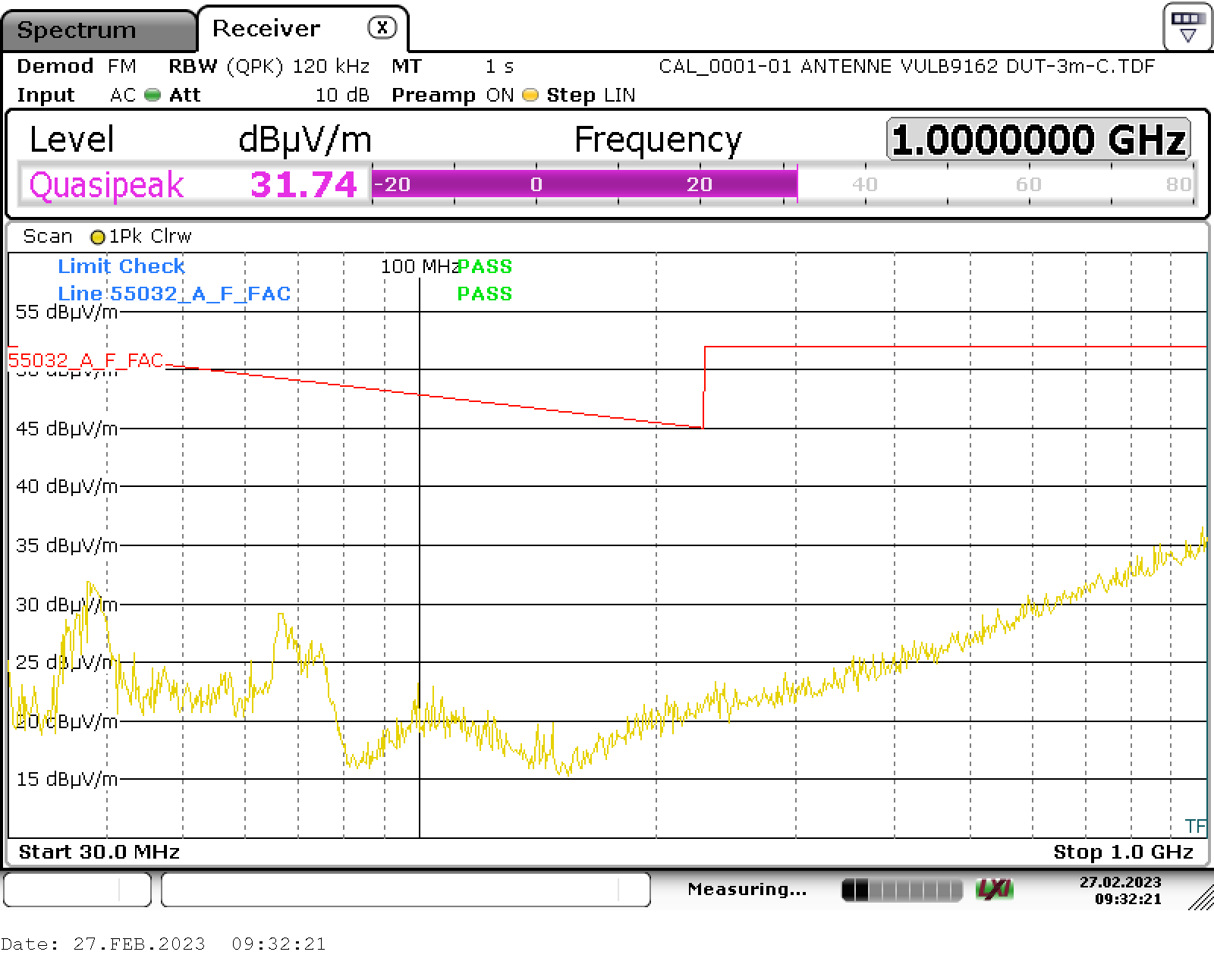

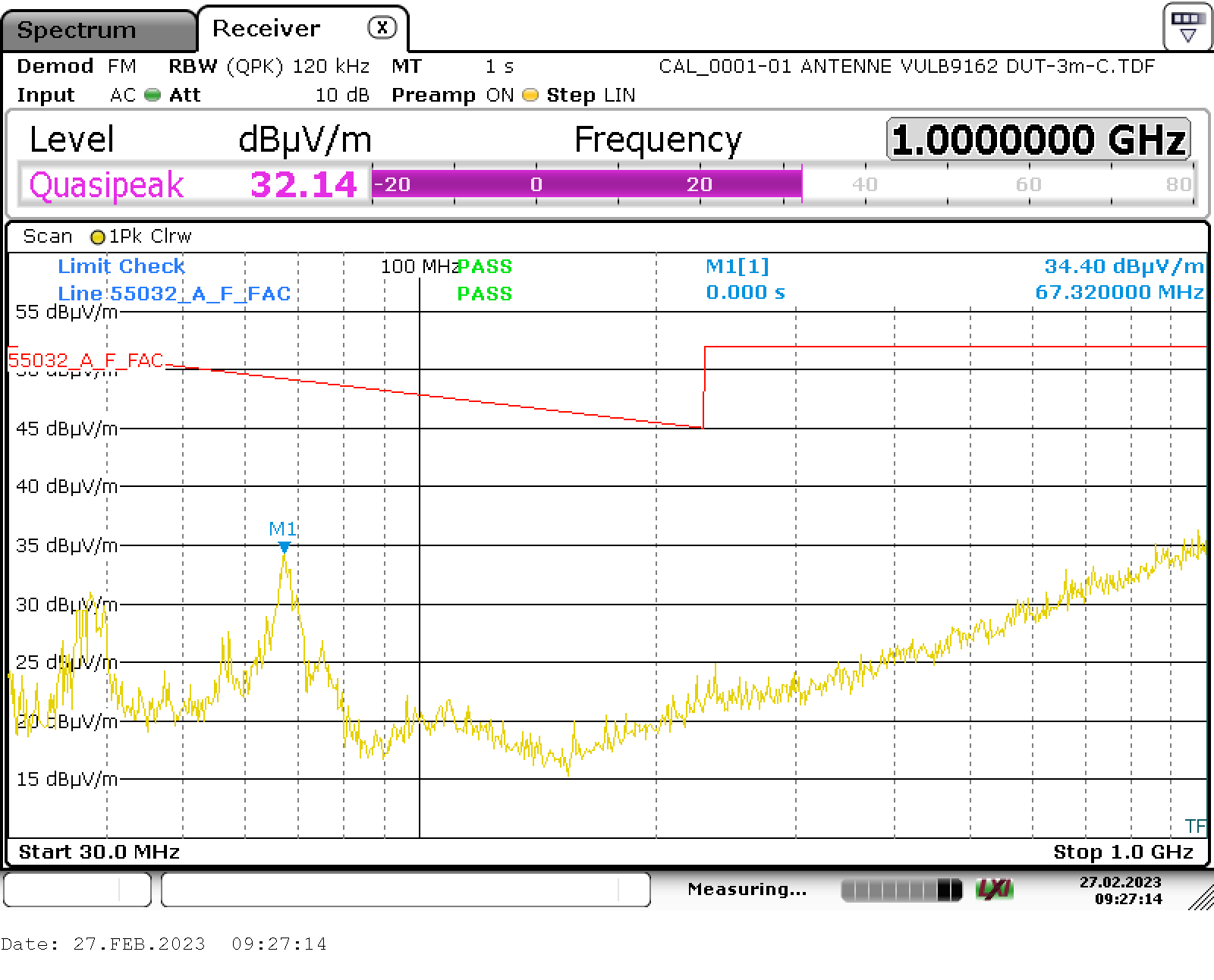

radiated emission 30MHz-1GHz 0° horizontal radiated emission 30MHz-1GHz 0° vertical radiated emission 30MHz-1GHz 90° horizontal radiated emission 30MHz-1GHz 90° vertical
radiated emission 30MHz-1GHz 180° horizontal radiated emission 30MHz-1GHz 180° vertical radiated emission 30MHz-1GHz 270° horizontal radiated emission 30MHz-1GHz 270° vertical

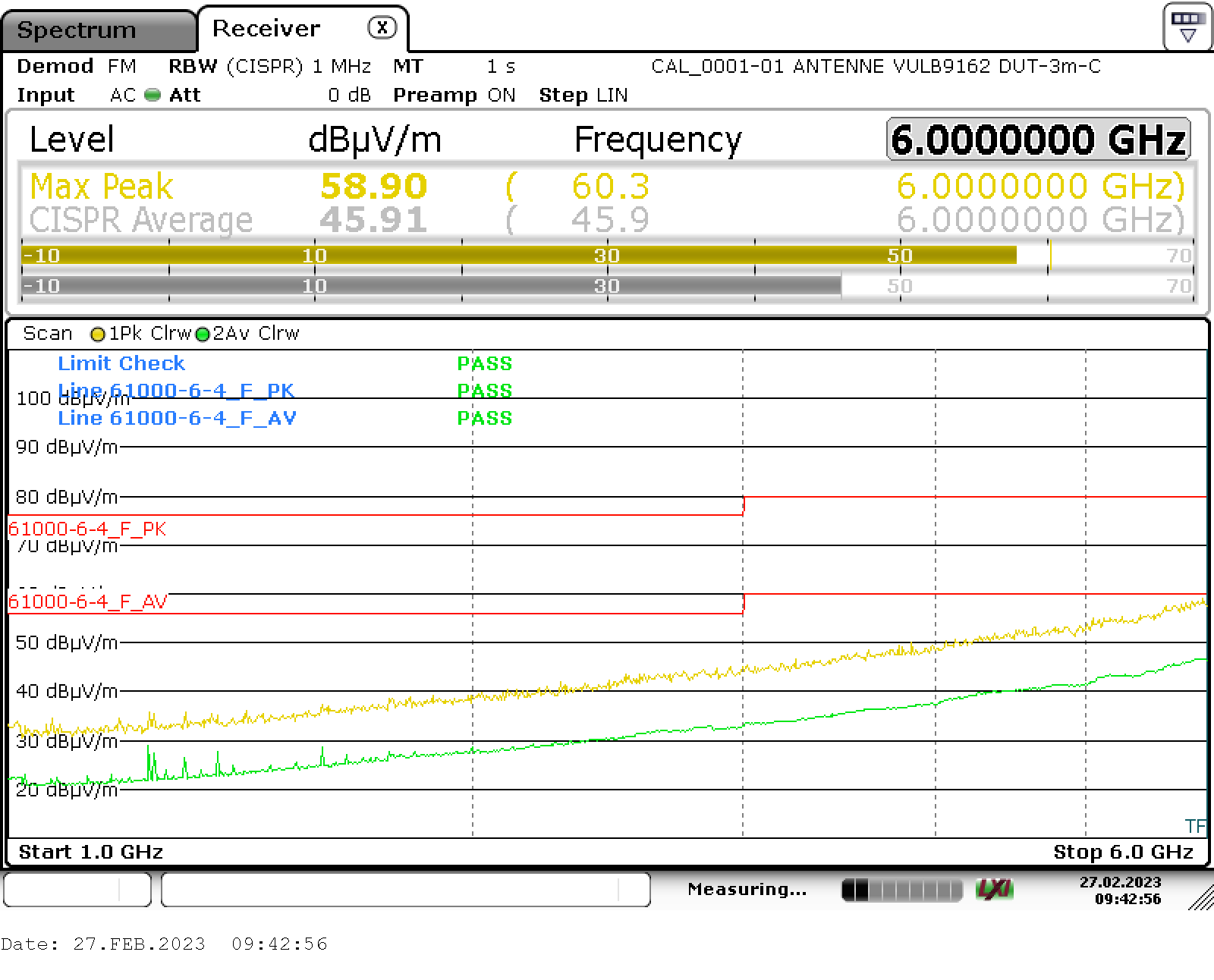

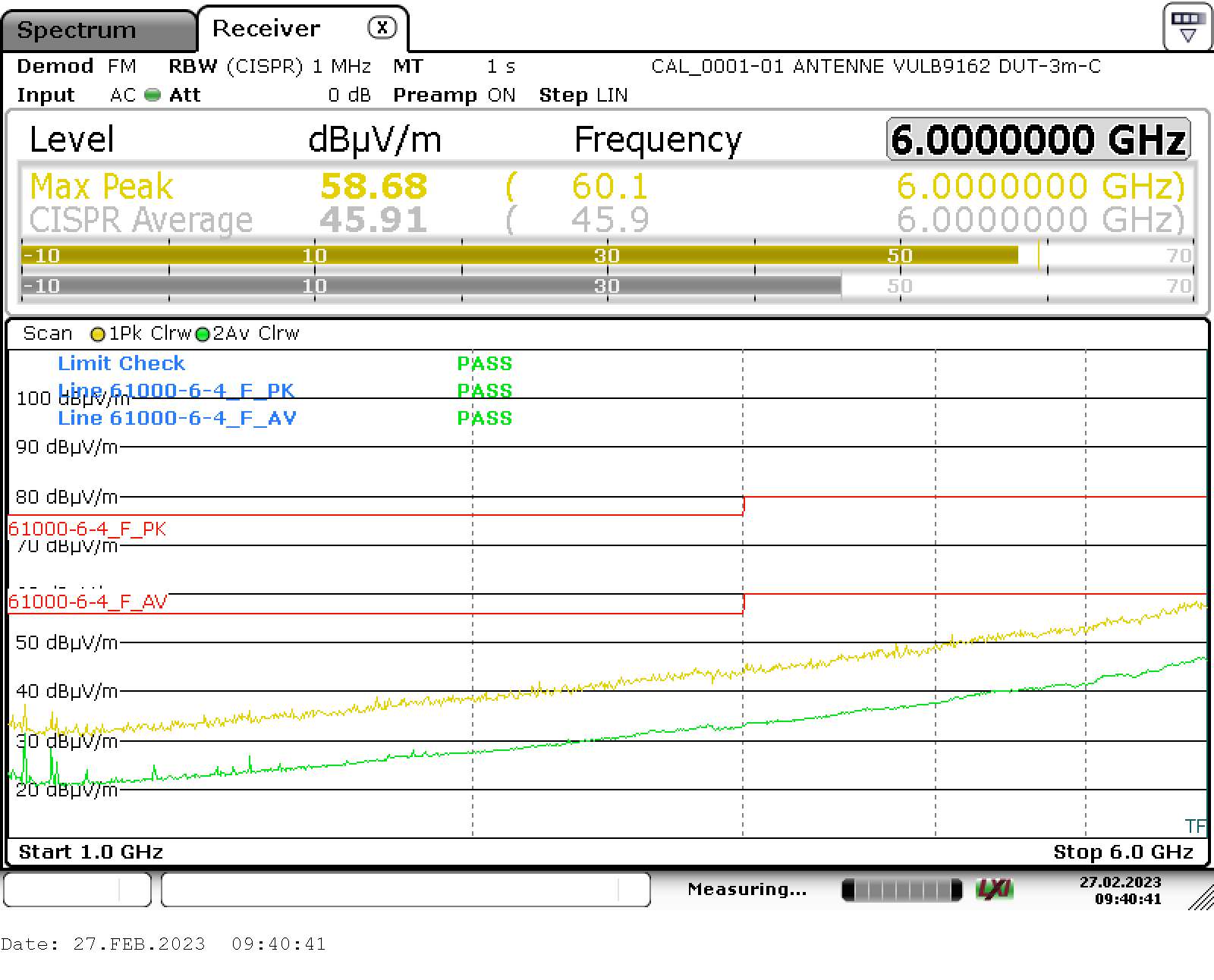

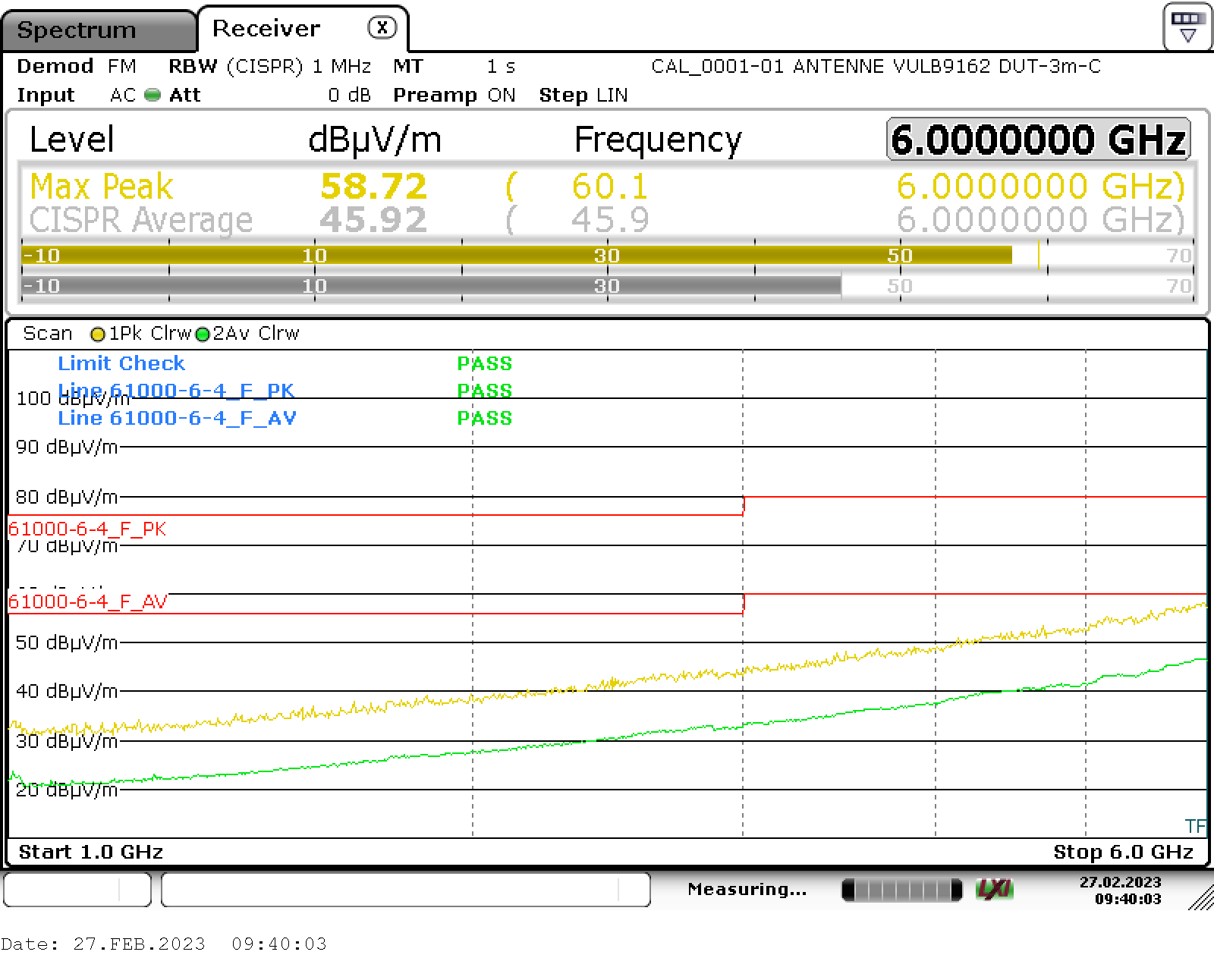

Radiated emission in FAR, 1GHz-6GHz

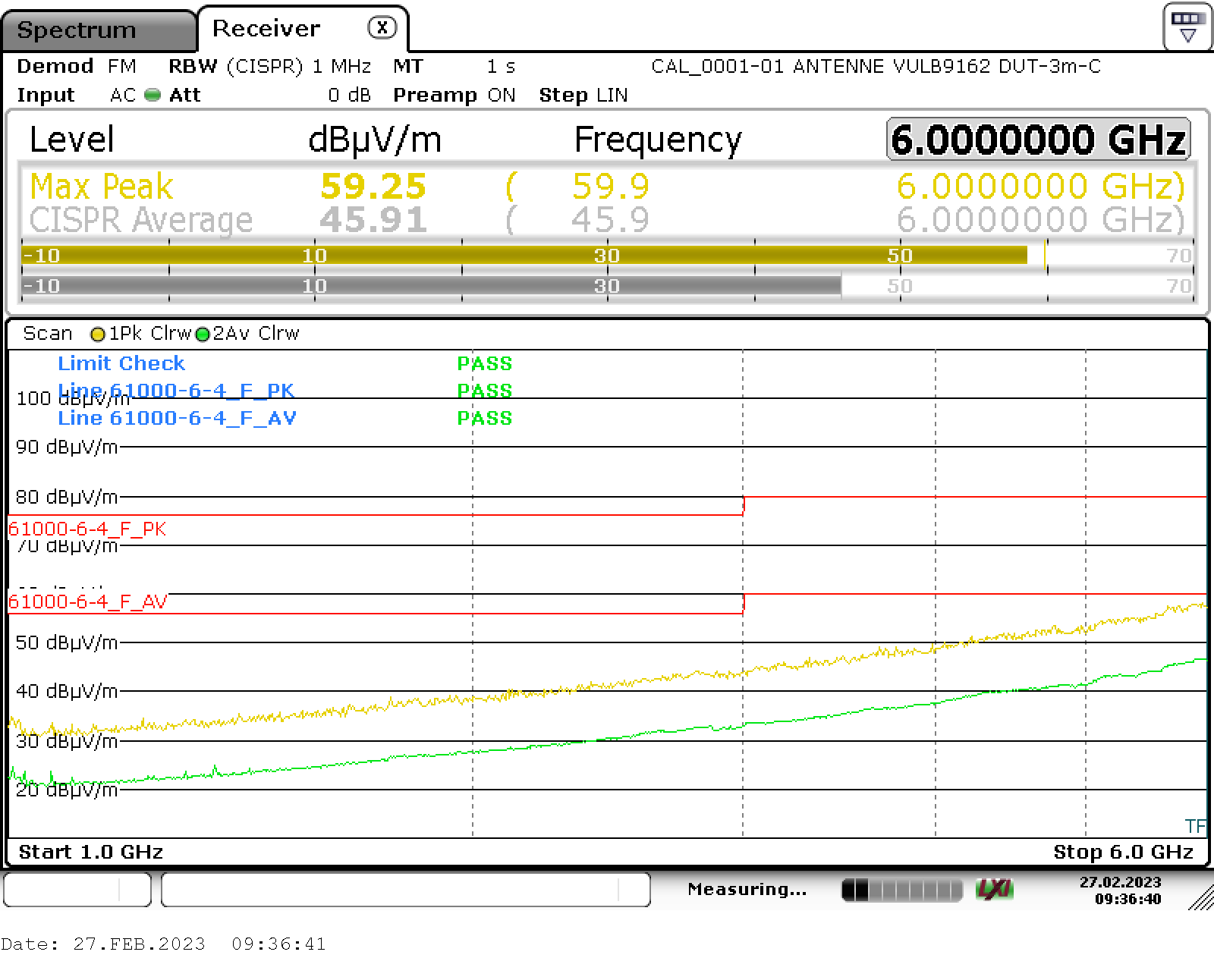

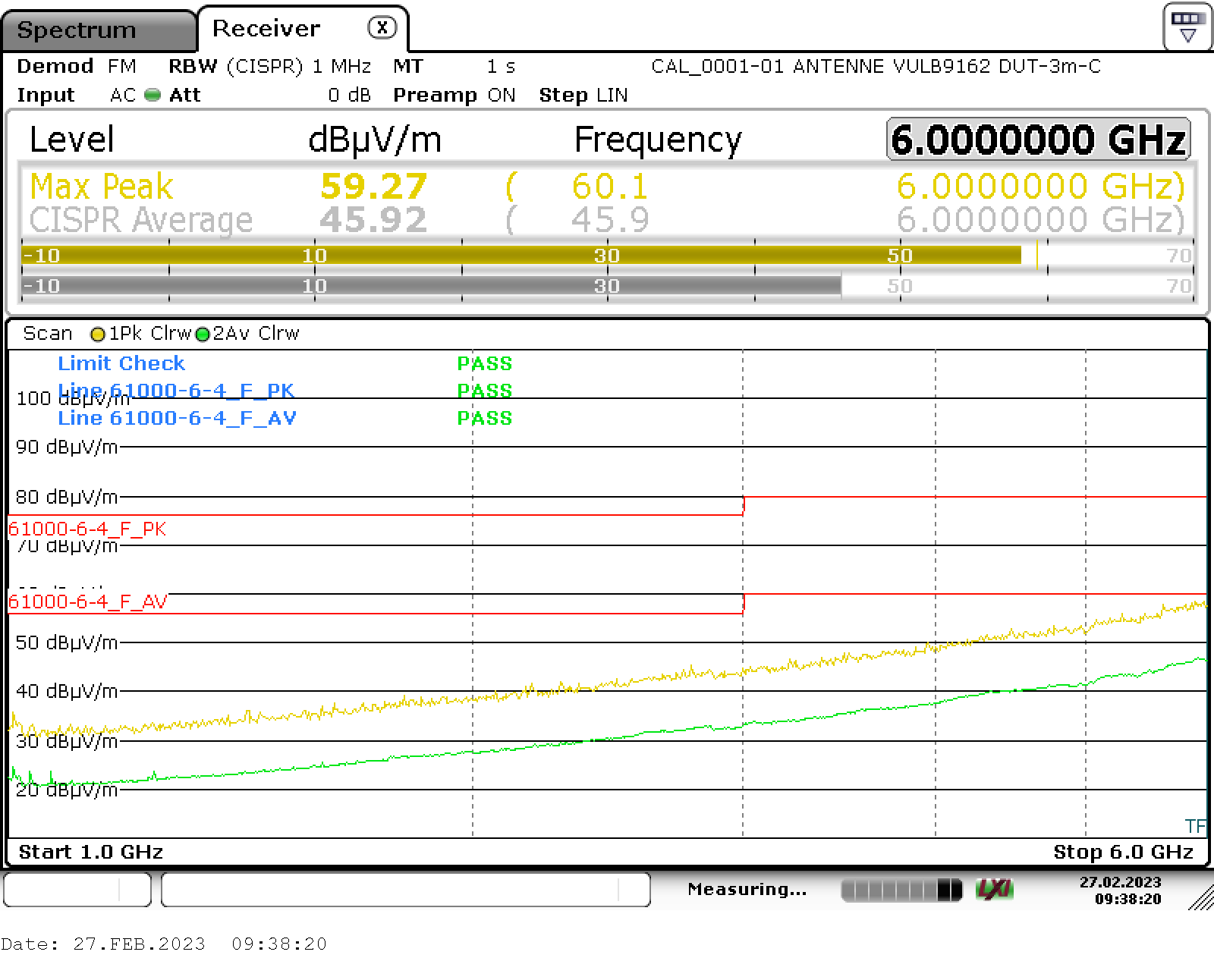

radiated emission 1GHz-6Ghz 0° horizontal radiated emission 1GHz-6GHz 0° vertical radiated emission 1GHz-6Ghz 90° horizontal radiated emission 1GHz-6GHz 90° vertical
radiated emission 1GHz-6Ghz 180° horizontal radiated emission 1GHz-6GHz 180° vertical radiated emission 1GHz-6Ghz 270° horizontal radiated emission 1GHz-6GHz 270° vertical

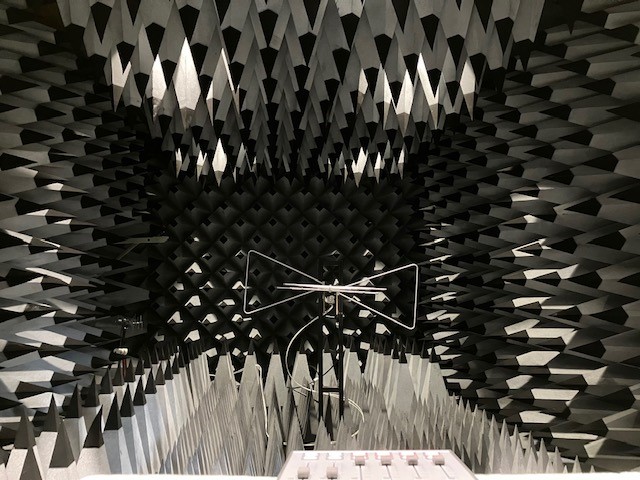

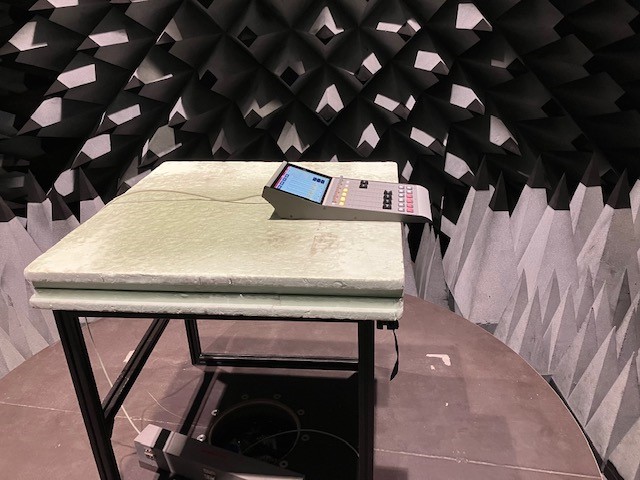

FAR setup for radiated emission measurement

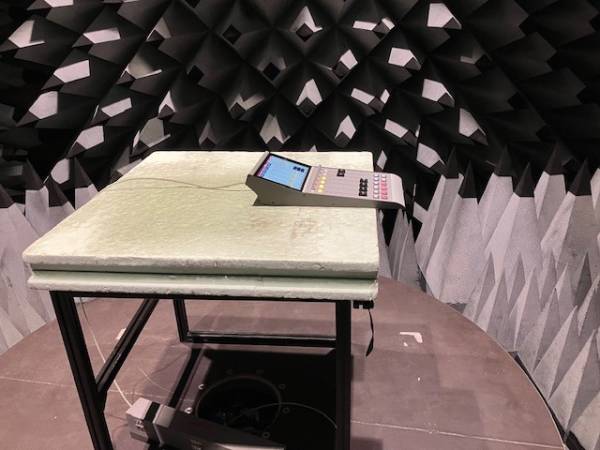

DUT on turntable DUT on turntable

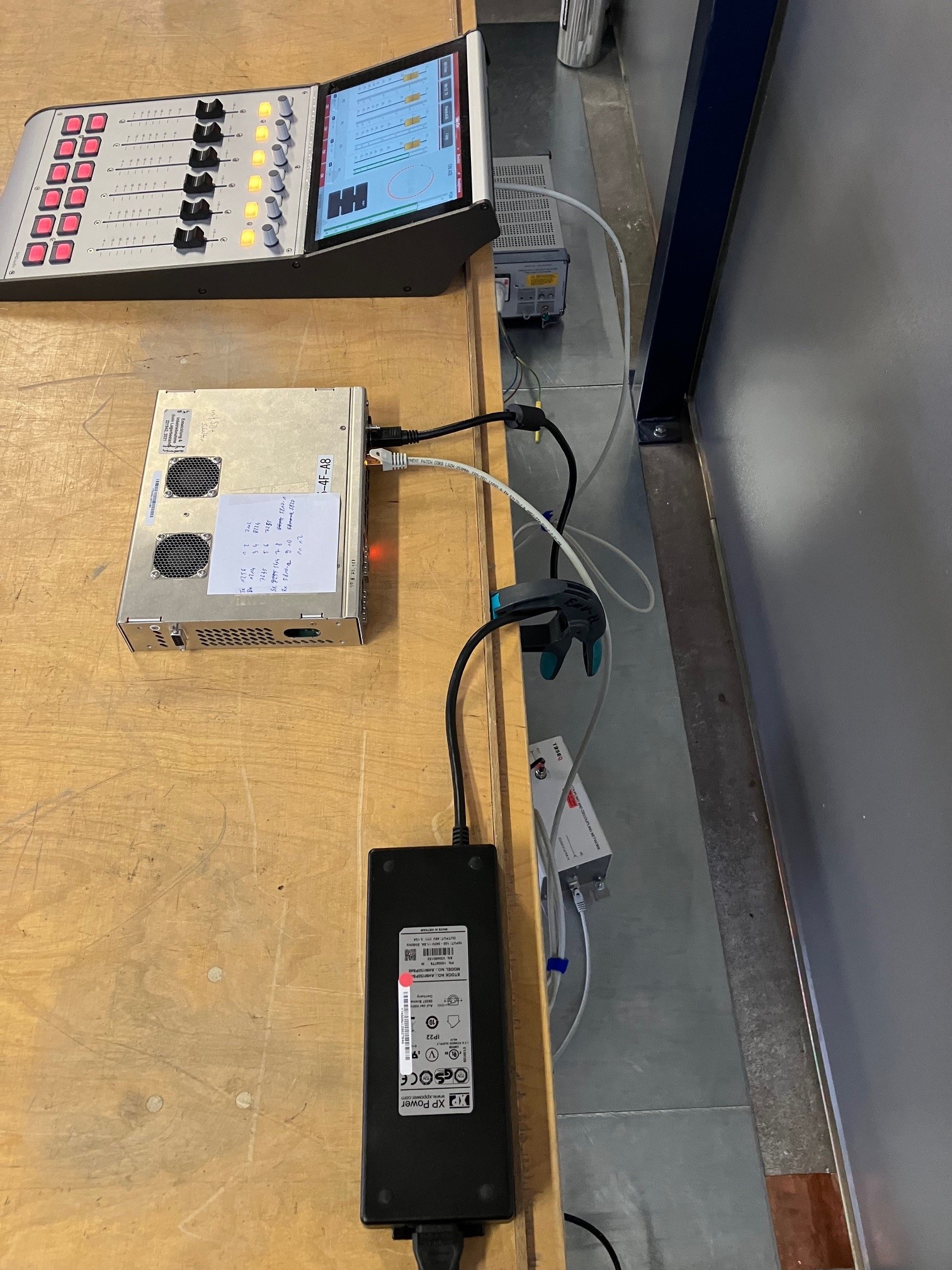

AAN setup for conducted emission measurement

DUT on wooden table, AAN on conductive floor

Measurement data

Full listPeak list
5620_7520_7498_poe.txt5620_7520_7498_poepl.txt
5620_30m-1g_0_h.txt5620_30m-1g_0_hpl.txt
5620_30m-1g_0_v.txt5620_30m-1g_0_vpl.txt
5620_30m-1g_90_h.txt5620_30m-1g_90_hpl.txt
5620_30m-1g_90_v.txt5620_30m-1g_90_vpl.txt
5620_30m-1g_180_h.txt5620_30m-1g_180_hpl.txt
5620_30m-1g_180_v.txt5620_30m-1g_180_vpl.txt
5620_30m-1g_270_h.txt5620_30m-1g_270_hpl.txt
5620_30m-1g_270_v.txt5620_30m-1g_270_vpl.txt
5620_1g-6g_0_h.txt5620_30m-1g_0_hpl.txt
5620_1g-6g_0_v.txt5620_30m-1g_0_vpl.txt
5620_1g-6g_90_h.txt5620_30m-1g_90_hpl.txt
5620_1g-6g_90_v.txt5620_30m-1g_90_vpl.txt
5620_1g-6g_180_h.txt5620_30m-1g_180_hpl.txt
5620_1g-6g_180_v.txt5620_30m-1g_180_vpl.txt
5620_1g-6g_270_h.txt5620_30m-1g_270_hpl.txt
5620_1g-6g_270_v.txt5620_30m-1g_270_vpl.txt
