52-7498A

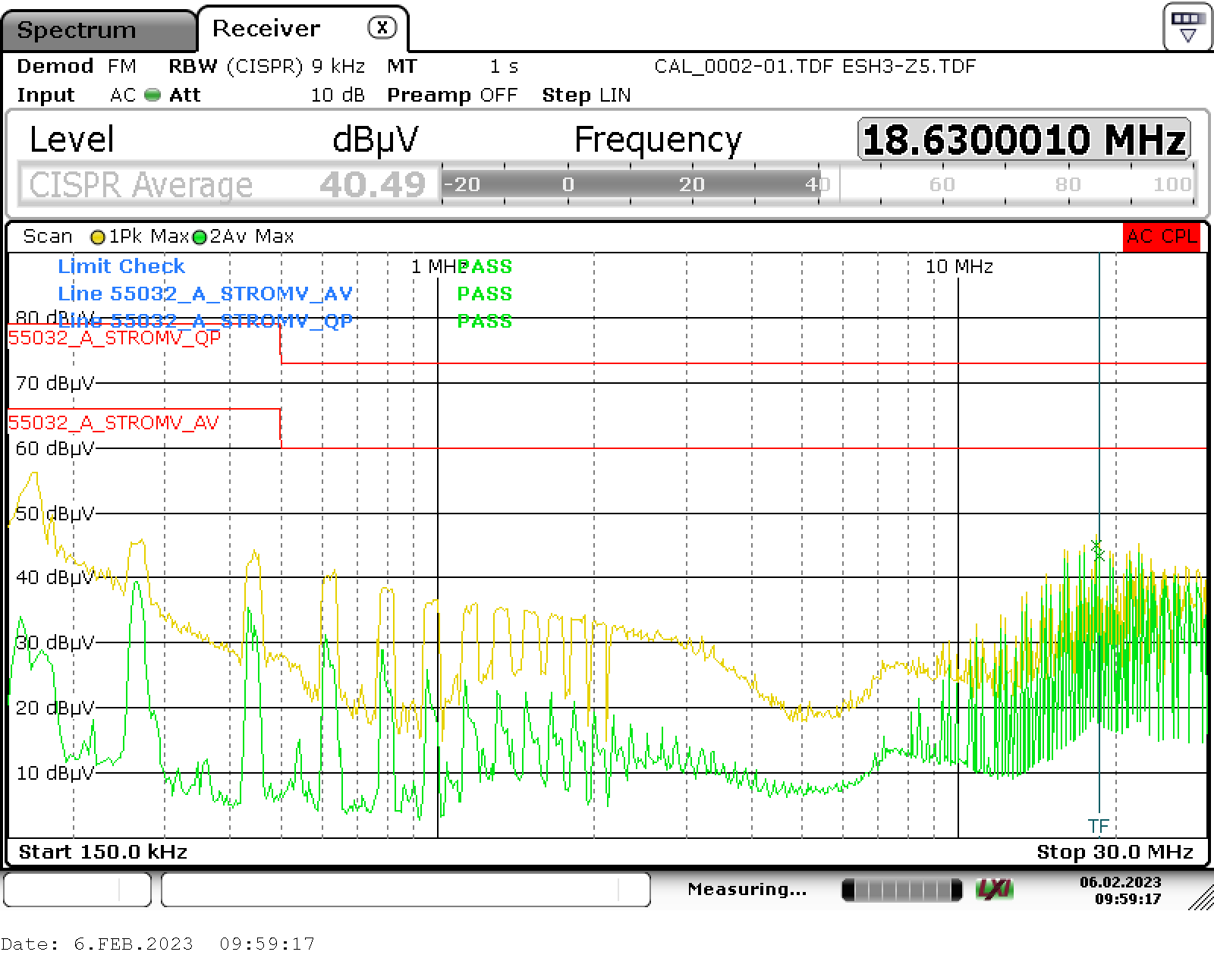

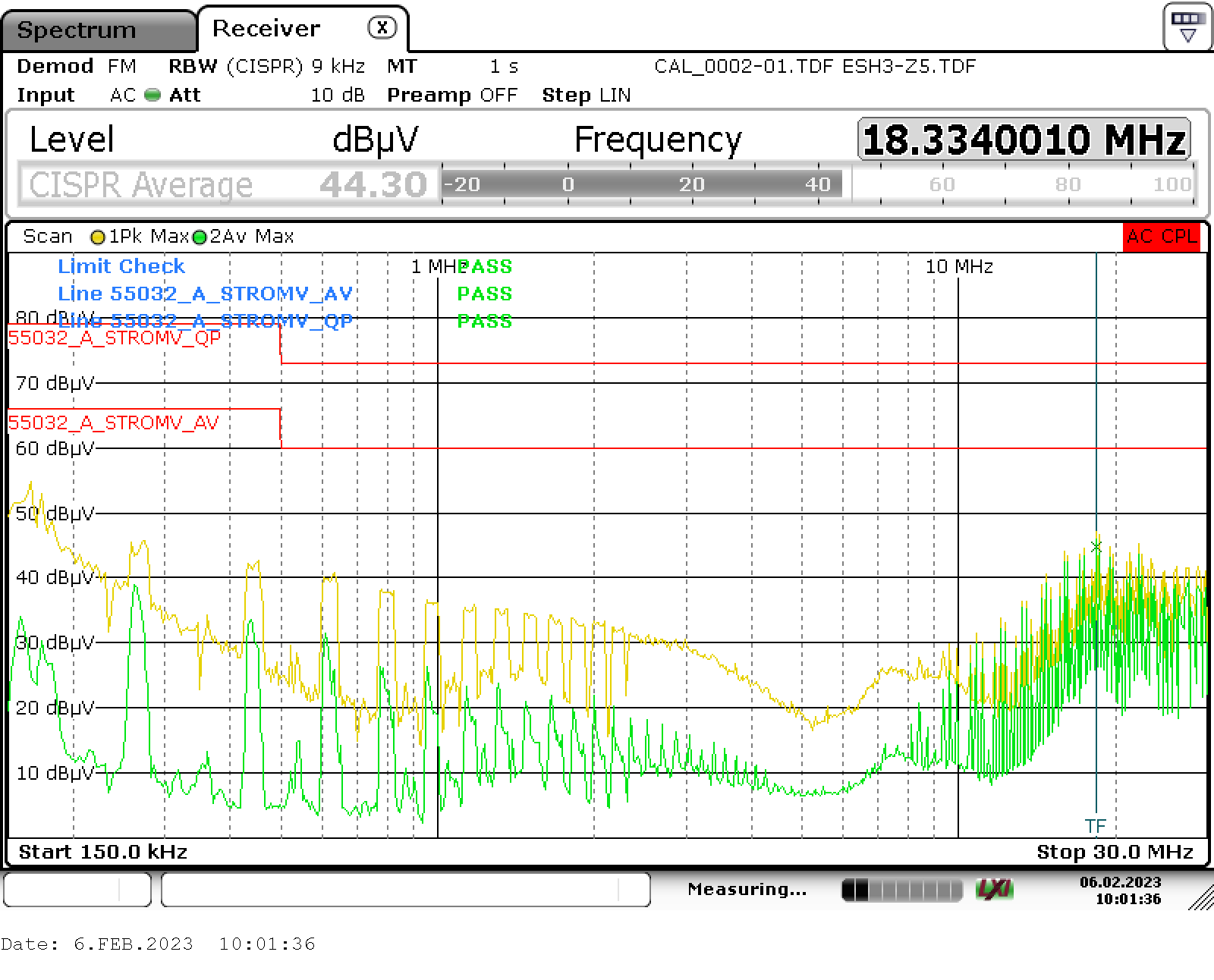

Conducted emission of mains power line using AMN, 150kHz-30MHz

Measurement of N and L1 under typical load condition 52-7420A, 52-7580A, 52-1256A

N, conducted emission 150kHz-30MHz L1, conducted emission 150kHz-30MHz

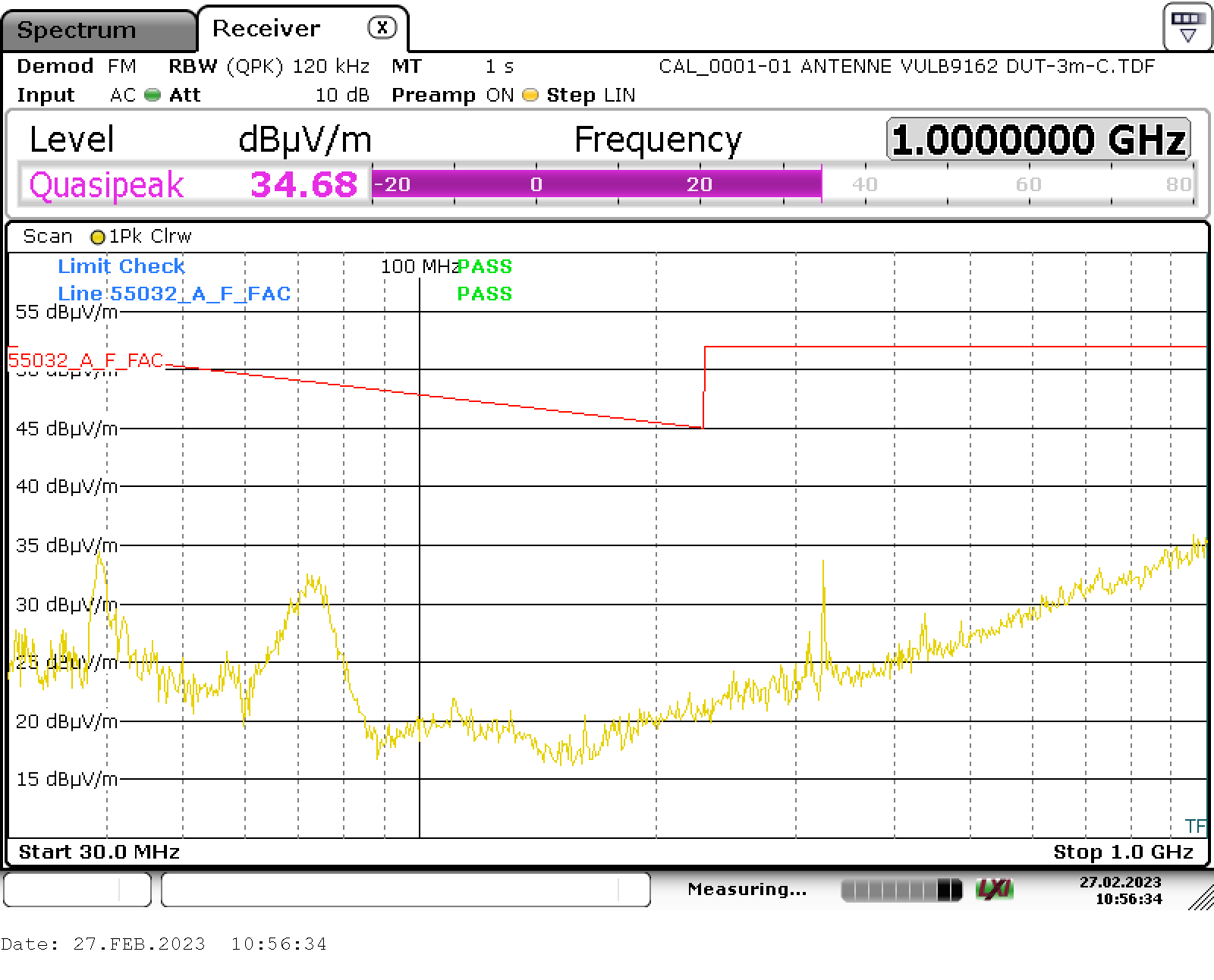

Radiated emission in FAR, 30MHz-1GHz

Measurement under typical load condition 52-7420A, 52-7580A

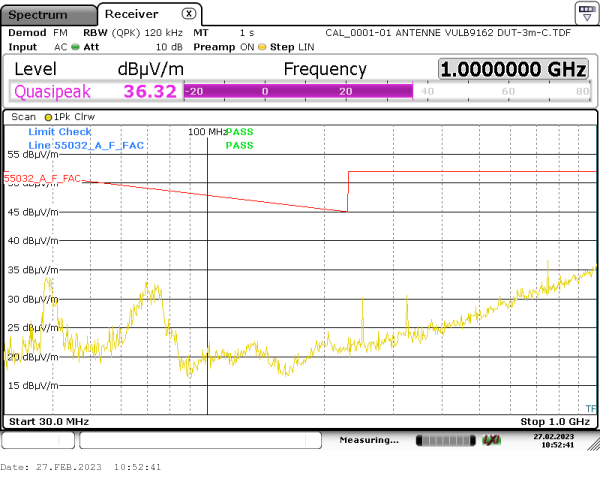

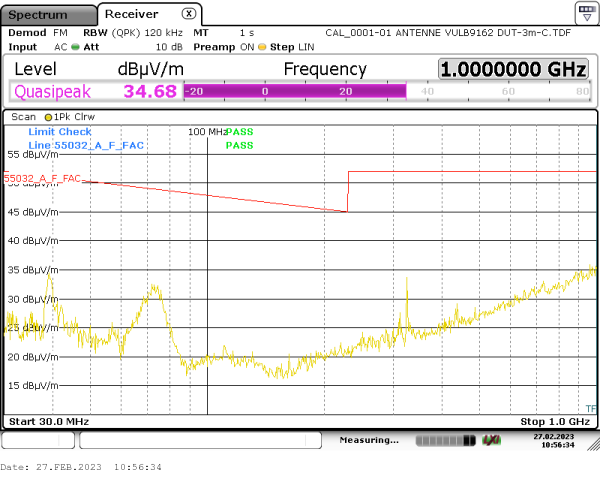

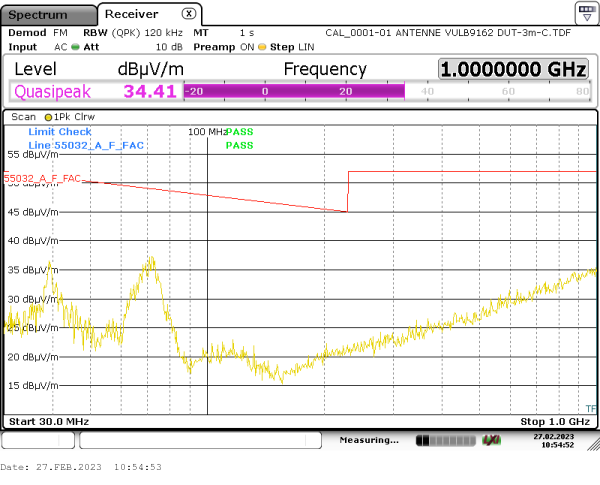

radiated emission 30MHz-1GHz 0° horizontal radiated emission 30MHz-1GHz 0° vertical radiated emission 30MHz-1GHz 90° horizontal radiated emission 30MHz-1GHz 90° vertical
radiated emission 30MHz-1GHz 180° horizontal radiated emission 30MHz-1GHz 180° vertical radiated emission 30MHz-1GHz 270° horizontal radiated emission 30MHz-1GHz 270° vertical

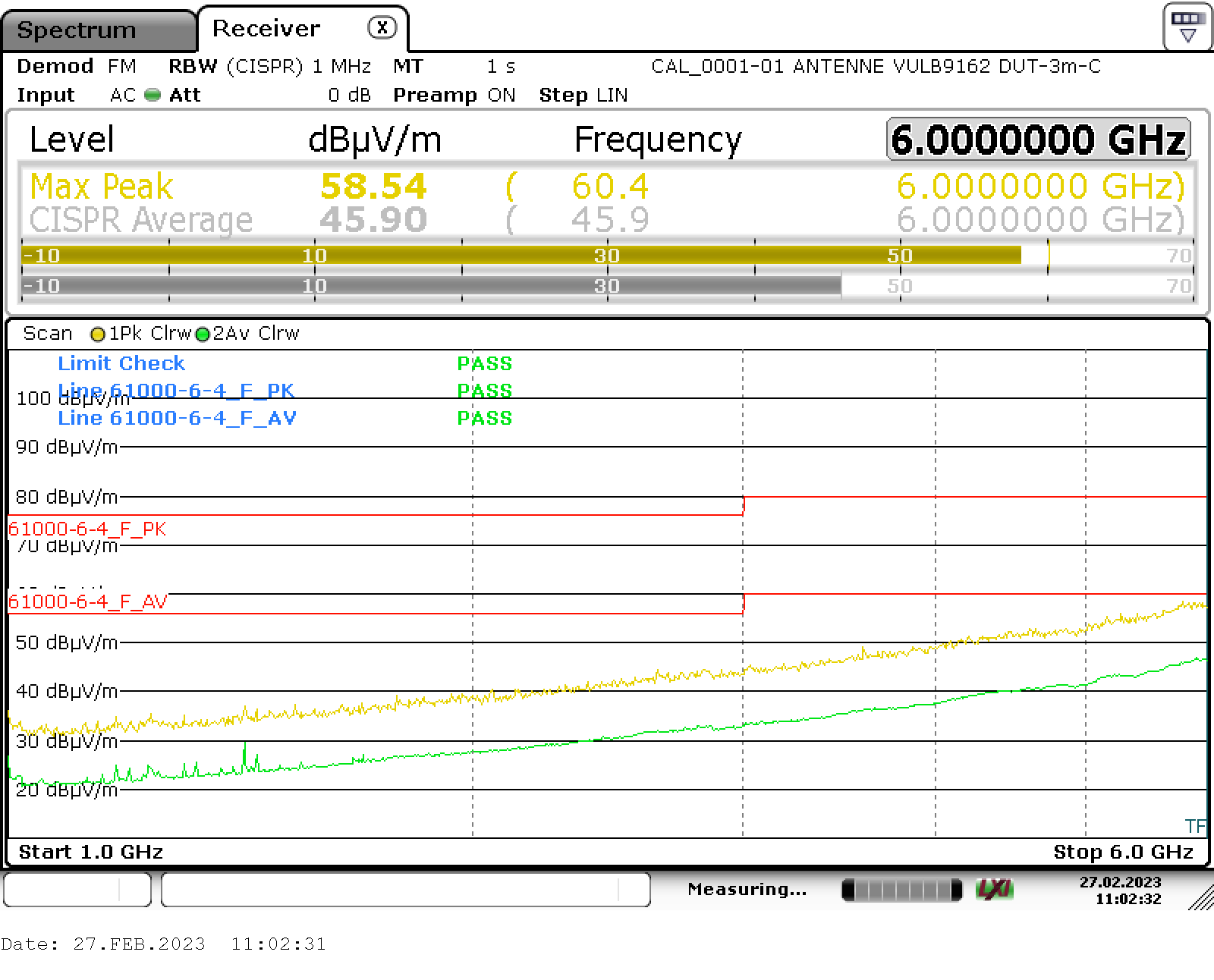

Radiated emission in FAR, 1GHz-6GHz

Measurement under typical load condition 52-7420A, 52-7580A

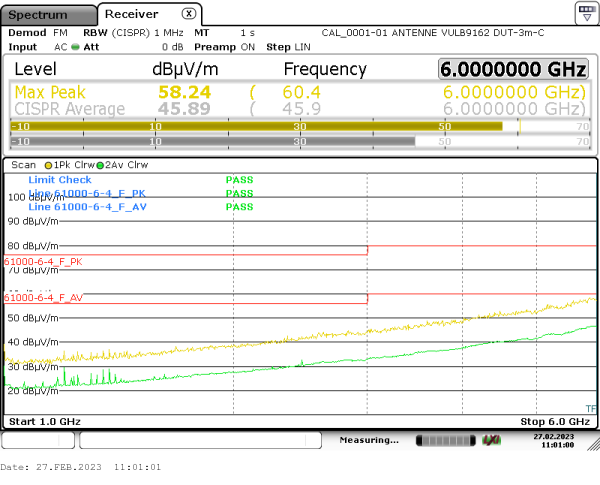

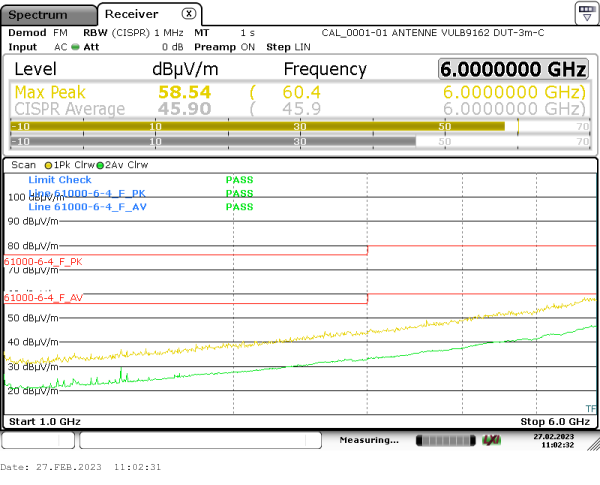

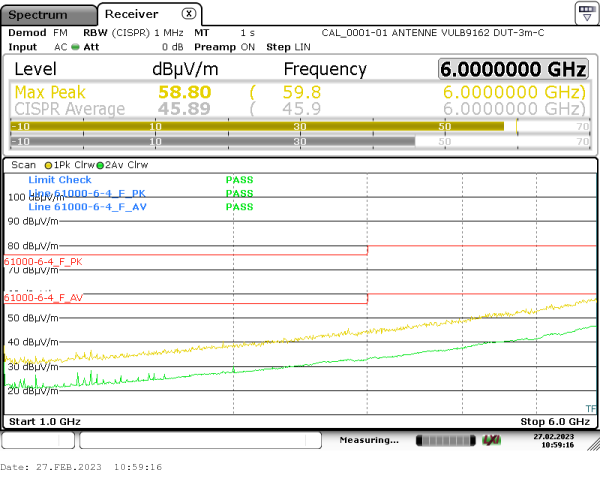

radiated emission 1GHz-6Ghz 0° horizontal radiated emission 1GHz-6GHz 0° vertical radiated emission 1GHz-6Ghz 90° horizontal radiated emission 1GHz-6GHz 90° vertical
radiated emission 1GHz-6Ghz 180° horizontal radiated emission 1GHz-6GHz 180° vertical radiated emission 1GHz-6Ghz 270° horizontal radiated emission 1GHz-6GHz 270° vertical

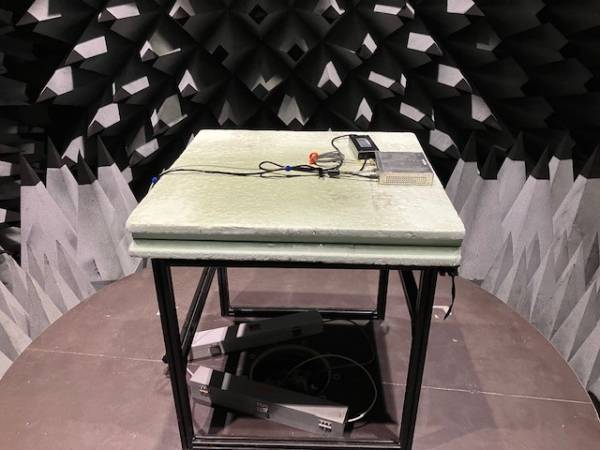

FAR setup for radiated emission measurement

DUT on turntable DUT on turntable

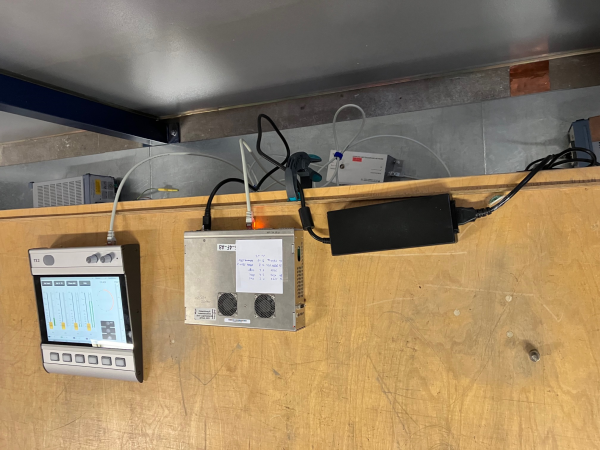

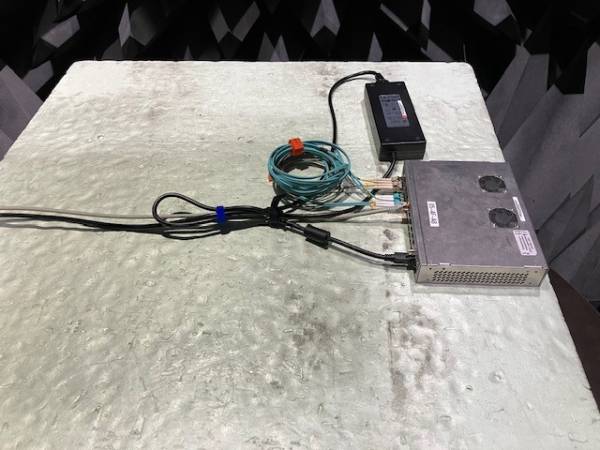

AAN setup for conducted emission measurement

DUT on wooden table, AAN on conductive floor

Measurement data

Full listPeak list
1256_7420_7498_l1.txt1256_7420_7498_l1pl.txt
1256_7420_7498_n.txt1256_7420_7498_npl.txt
7520_30m-1g_0_h.txt7520_30m-1g_0_hpl.txt
7520_30m-1g_0_v.txt7520_30m-1g_0_vpl.txt
7520_30m-1g_90_h.txt7520_30m-1g_90_hpl.txt
7520_30m-1g_90_v.txt7520_30m-1g_90_vpl.txt
7520_30m-1g_180_h.txt7520_30m-1g_180_hpl.txt
7520_30m-1g_180_v.txt7520_30m-1g_180_vpl.txt
7520_30m-1g_270_h.txt7520_30m-1g_270_hpl.txt
7520_30m-1g_270_v.txt7520_30m-1g_270_vpl.txt
7520_1g-6g_0_h.txt7520_30m-1g_0_hpl.txt
7520_1g-6g_0_v.txt7520_30m-1g_0_vpl.txt
7520_1g-6g_90_h.txt7520_30m-1g_90_hpl.txt
7520_1g-6g_90_v.txt7520_30m-1g_90_vpl.txt
7520_1g-6g_180_h.txt7520_30m-1g_180_hpl.txt
7520_1g-6g_180_v.txt7520_30m-1g_180_vpl.txt
7520_1g-6g_270_h.txt7520_30m-1g_270_hpl.txt
7520_1g-6g_270_v.txt7520_30m-1g_270_vpl.txt
