52-7520A/52-7523A

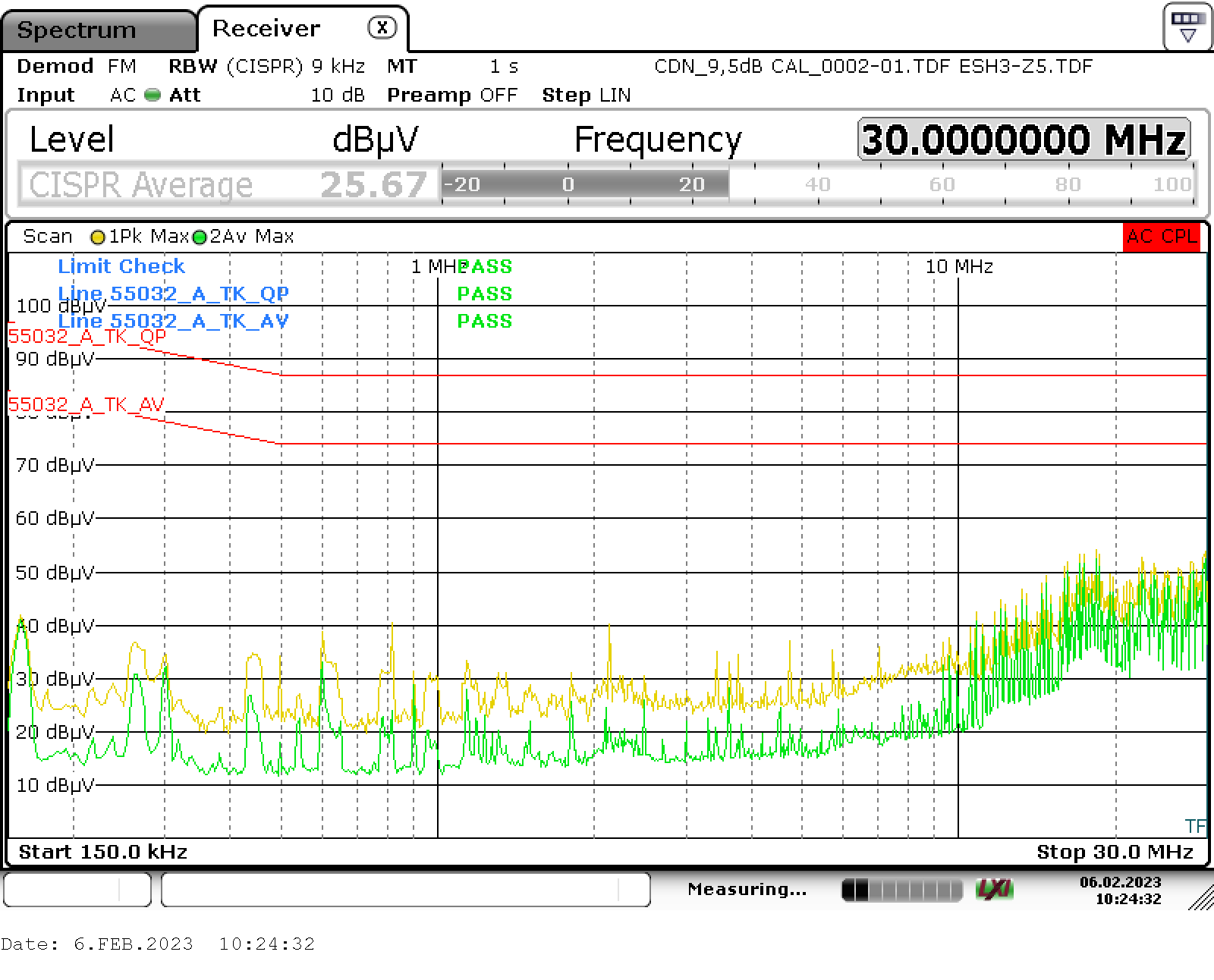

Conducted emission of APC Port using AAN, 150kHz-30MHz

Measurement of 52-7520A APC connected to 52-1256A (typical load condition) and 52-7498A (power source)

conducted emission 150kHz-30MHz

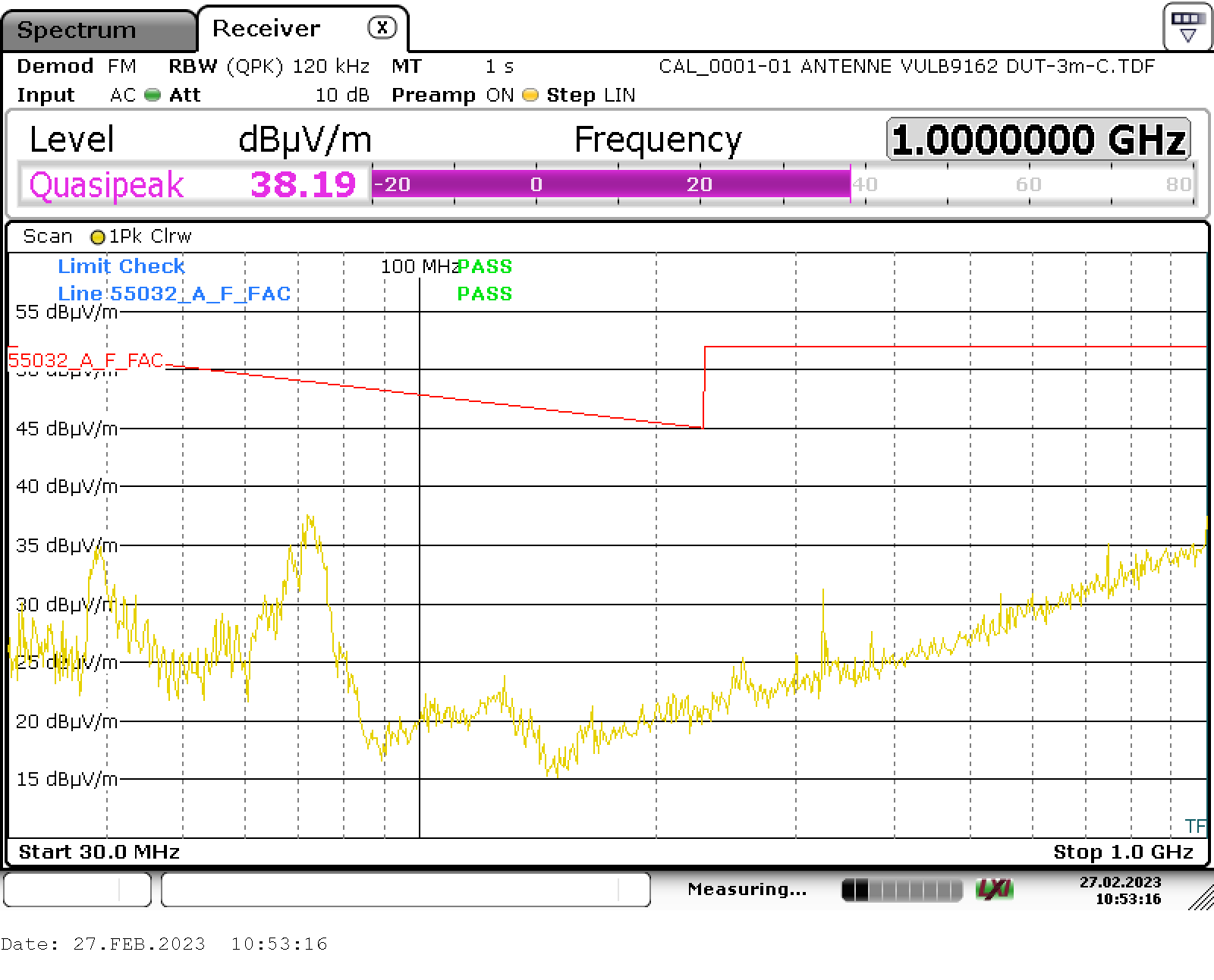

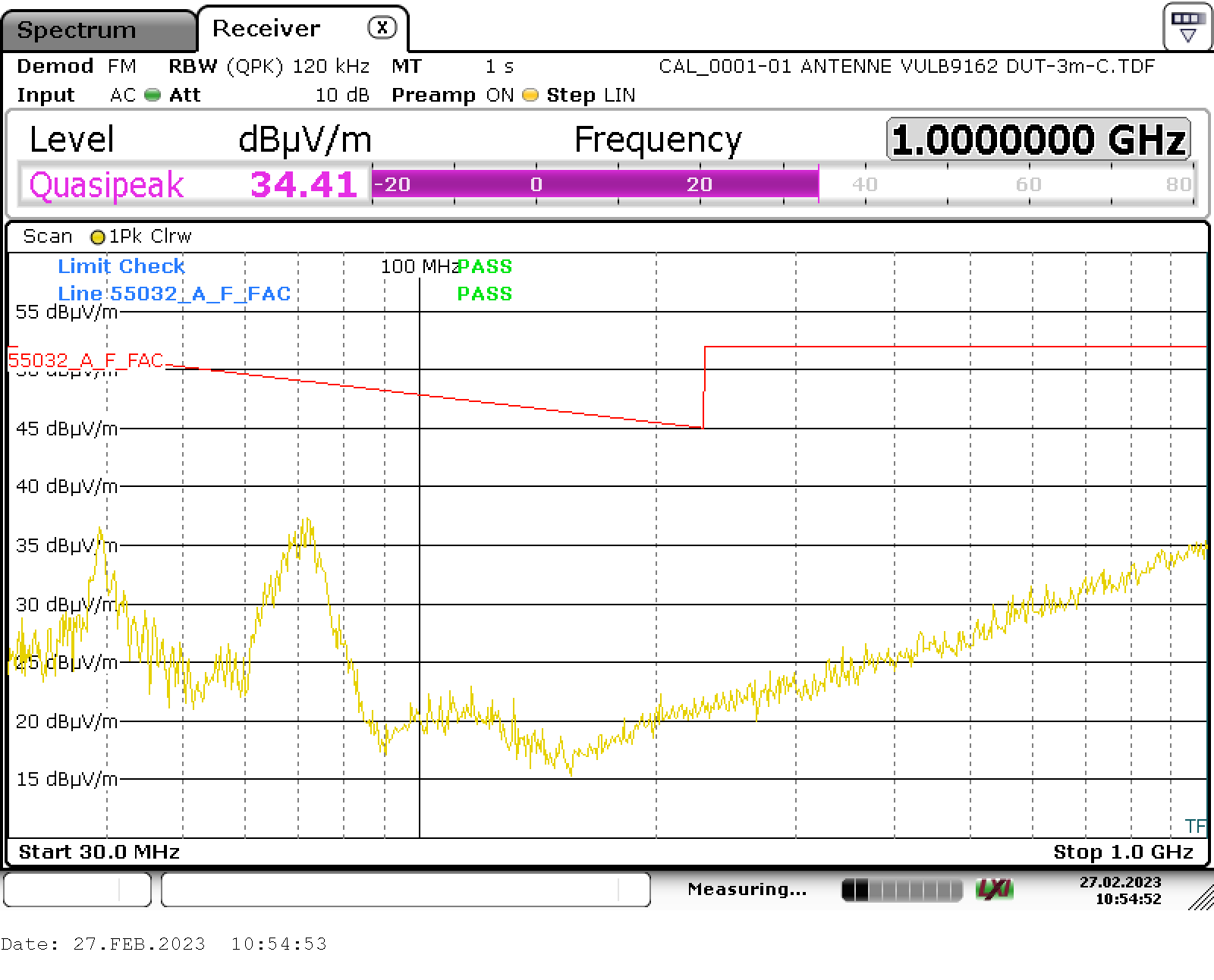

Radiated emission in FAR, 30MHz-1GHz

radiated emission 30MHz-1GHz 0° horizontal radiated emission 30MHz-1GHz 0° vertical radiated emission 30MHz-1GHz 90° horizontal radiated emission 30MHz-1GHz 90° vertical
radiated emission 30MHz-1GHz 180° horizontal radiated emission 30MHz-1GHz 180° vertical radiated emission 30MHz-1GHz 270° horizontal radiated emission 30MHz-1GHz 270° vertical

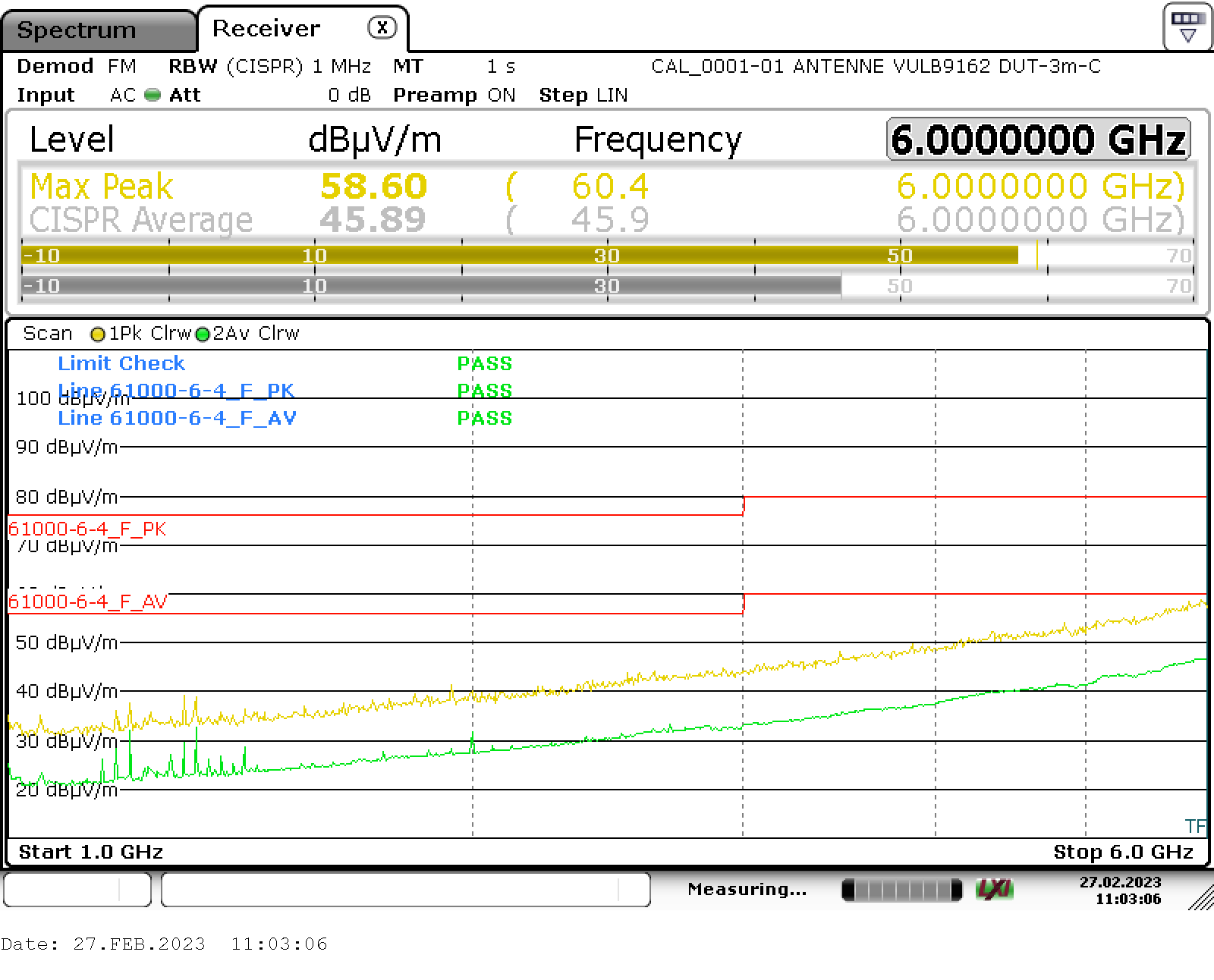

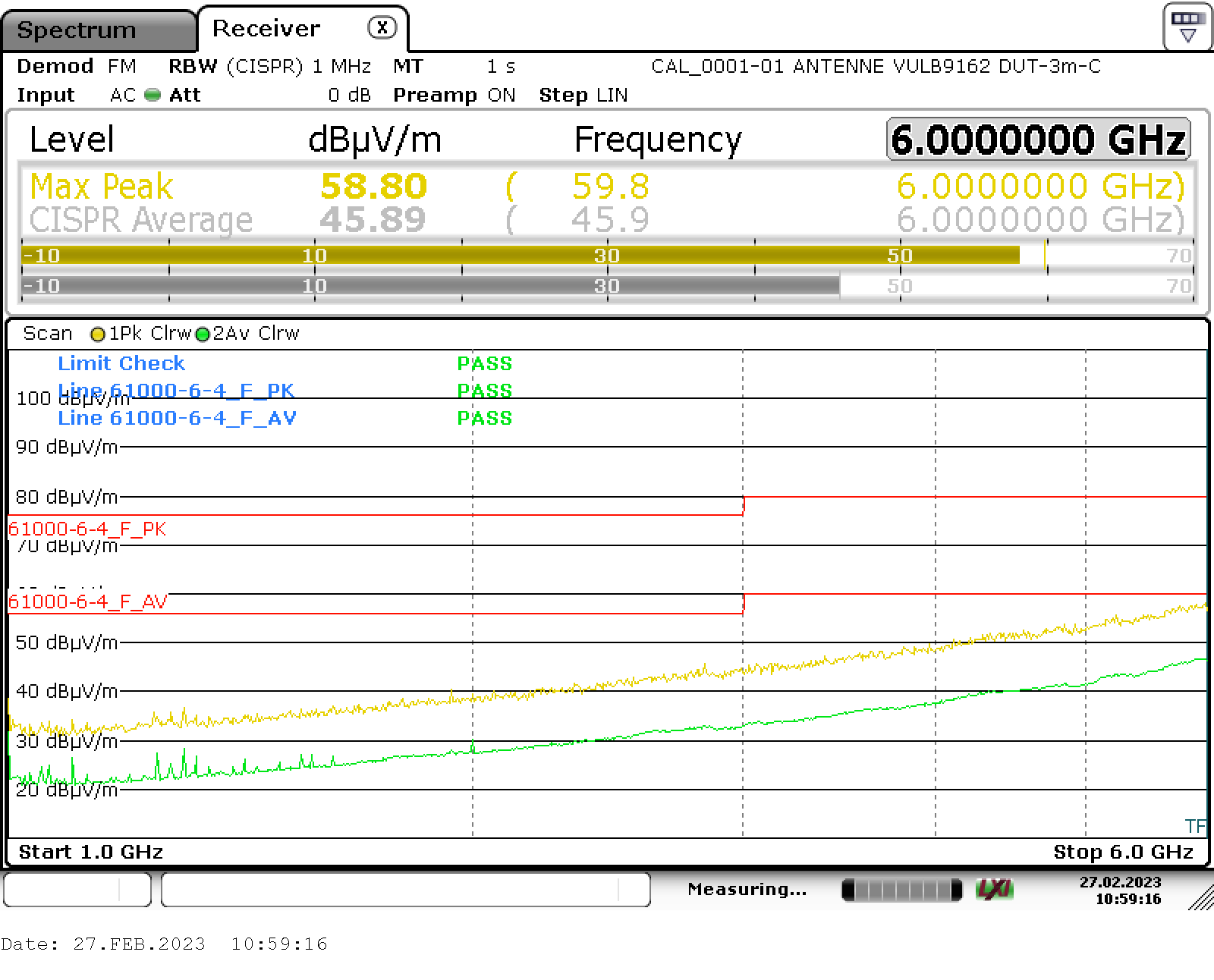

Radiated emission in FAR, 1GHz-6GHz

radiated emission 1GHz-6Ghz 0° horizontal radiated emission 1GHz-6GHz 0° vertical radiated emission 1GHz-6Ghz 90° horizontal radiated emission 1GHz-6GHz 90° vertical
radiated emission 1GHz-6Ghz 180° horizontal radiated emission 1GHz-6GHz 180° vertical radiated emission 1GHz-6Ghz 270° horizontal radiated emission 1GHz-6GHz 270° vertical

FAR setup for radiated emission measurement

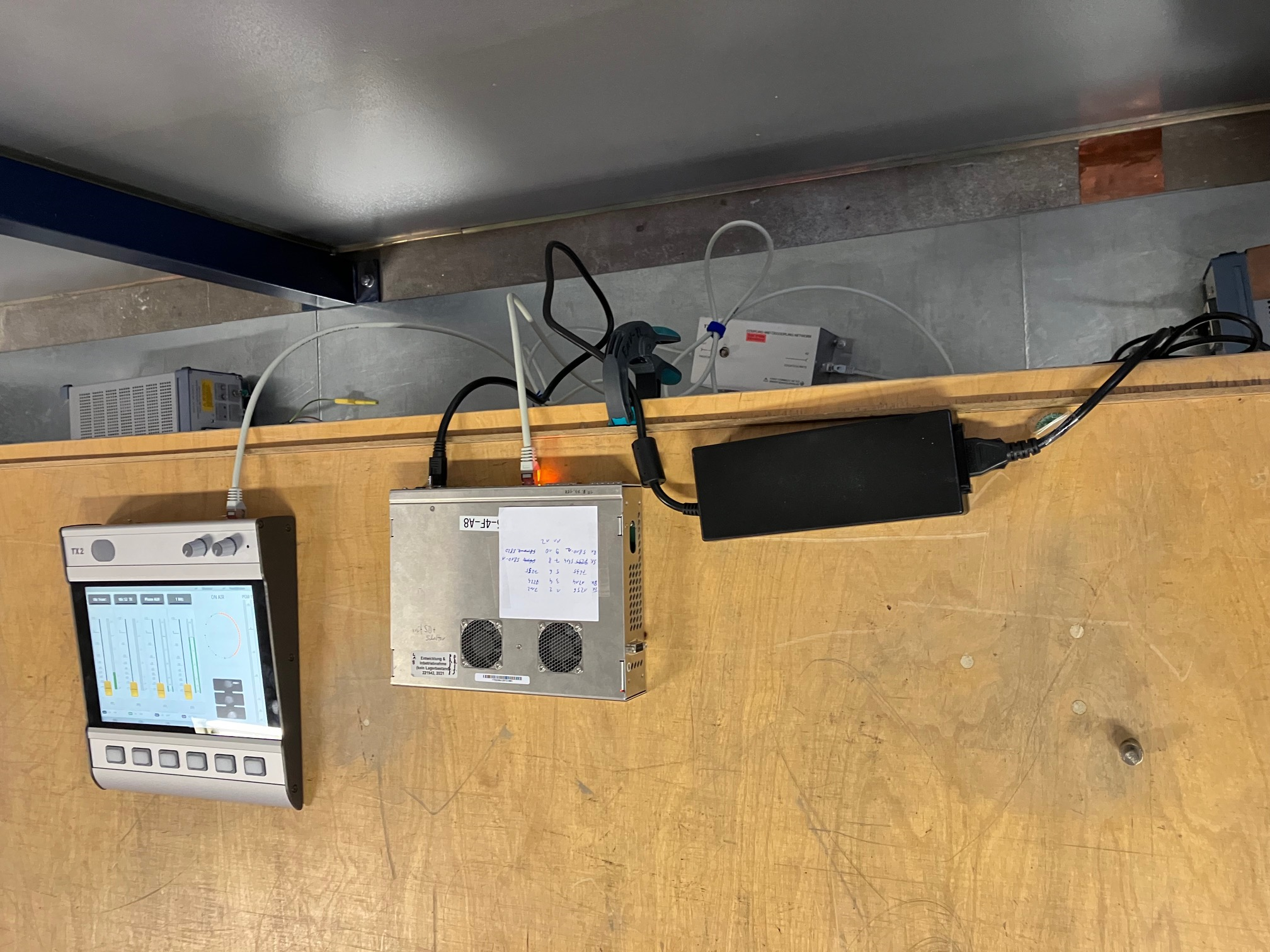

DUT on turntable DUT on turntable

AAN setup for conducted emission measurement

DUT on wooden table, AAN on conductive floor

Measurement data

1256_7520_7498_poe.txt1256_7520_7498_poepl.txt
7520_30m-1g_0_h.txt7520_30m-1g_0_hpl.txt
7520_30m-1g_0_v.txt7520_30m-1g_0_vpl.txt
7520_30m-1g_90_h.txt7520_30m-1g_90_hpl.txt
7520_30m-1g_90_v.txt7520_30m-1g_90_vpl.txt
7520_30m-1g_180_h.txt7520_30m-1g_180_hpl.txt
7520_30m-1g_180_v.txt7520_30m-1g_180_vpl.txt
7520_30m-1g_270_h.txt7520_30m-1g_270_hpl.txt
7520_30m-1g_270_v.txt7520_30m-1g_270_vpl.txt
7520_1g-6g_0_h.txt7520_30m-1g_0_hpl.txt
7520_1g-6g_0_v.txt7520_30m-1g_0_vpl.txt
7520_1g-6g_90_h.txt7520_30m-1g_90_hpl.txt
7520_1g-6g_90_v.txt7520_30m-1g_90_vpl.txt
7520_1g-6g_180_h.txt7520_30m-1g_180_hpl.txt
7520_1g-6g_180_v.txt7520_30m-1g_180_vpl.txt
7520_1g-6g_270_h.txt7520_30m-1g_270_hpl.txt
7520_1g-6g_270_v.txt7520_30m-1g_270_vpl.txt
