52-7540A (fully loaded with 4 x 52-7530A)

Conducted emission

not applicable (fiber ports)

Radiated emission in FAR, 30MHz-1GHz

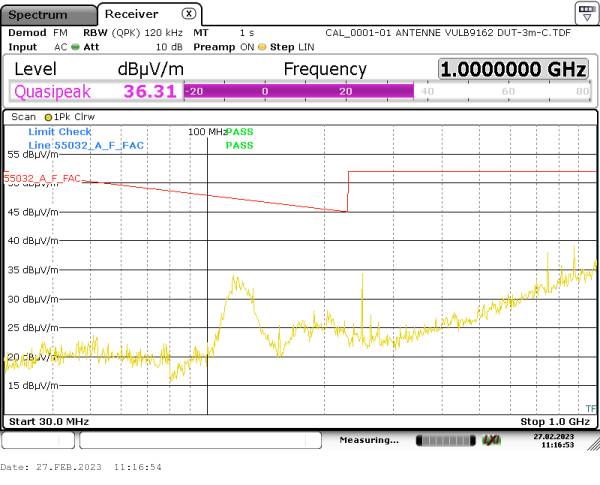

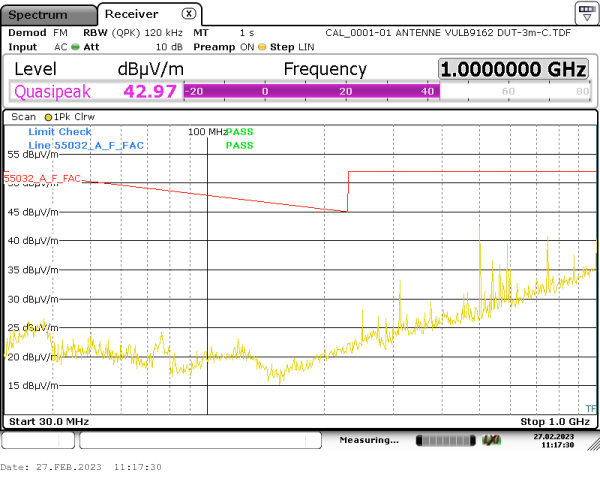

radiated emission 30MHz-1GHz 0° horizontal radiated emission 30MHz-1GHz 0° vertical
radiated emission 30MHz-1GHz 90° horizontal radiated emission 30MHz-1GHz 90° vertical
radiated emission 30MHz-1GHz 180° horizontal radiated emission 30MHz-1GHz 180° vertical
radiated emission 30MHz-1GHz 270° horizontal radiated emission 30MHz-1GHz 270° vertical

Radiated emission in FAR, 1GHz-6GHz

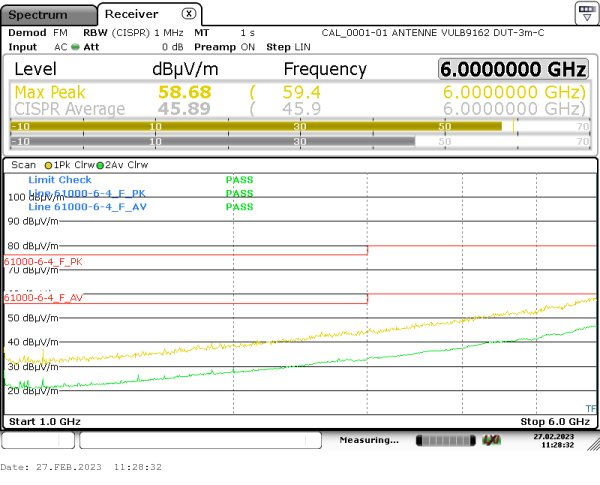

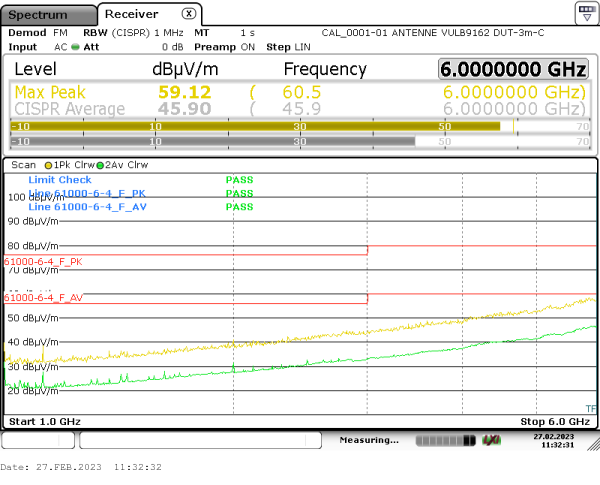

radiated emission 1GHz-6Ghz 0° horizontal radiated emission 1GHz-6GHz 0° vertical

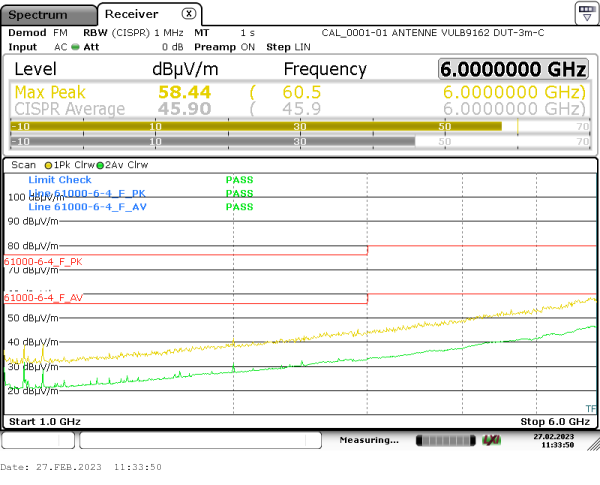

radiated emission 1GHz-6Ghz 90° horizontal radiated emission 1GHz-6GHz 90° vertical

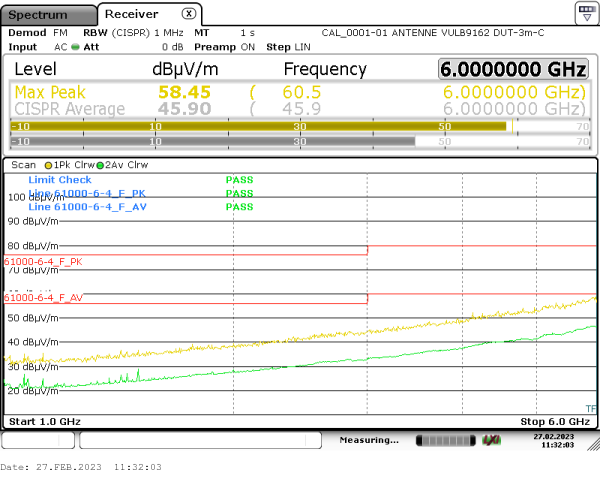

radiated emission 1GHz-6Ghz 180° horizontal radiated emission 1GHz-6GHz 180° vertical

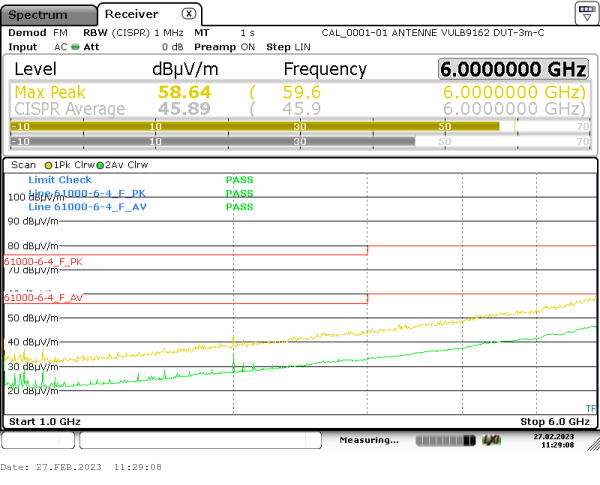

radiated emission 1GHz-6Ghz 270° horizontal radiated emission 1GHz-6GHz 270° vertical

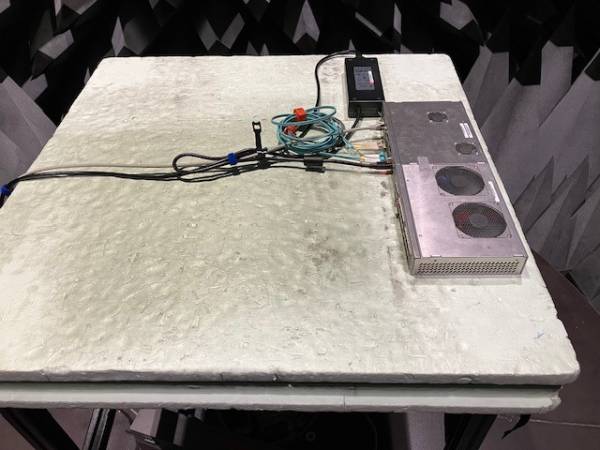

FAR setup for radiated emission measurement

DUT on turntable

Measurement data

Full listPeak list
7540_30m-1g_0_h.txt7540_30m-1g_0_hpl.txt
7540_30m-1g_0_v.txt7540_30m-1g_0_vpl.txt
7540_30m-1g_90_h.txt7540_30m-1g_90_hpl.txt
7540_30m-1g_90_v.txt7540_30m-1g_90_vpl.txt
7540_30m-1g_180_h.txt7540_30m-1g_180_hpl.txt
7540_30m-1g_180_v.txt7540_30m-1g_180_vpl.txt
7540_30m-1g_270_h.txt7540_30m-1g_270_hpl.txt
7540_30m-1g_270_v.txt7540_30m-1g_270_vpl.txt
7540_1g-6g_0_h.txt7540_30m-1g_0_hpl.txt
7540_1g-6g_0_v.txt7540_30m-1g_0_vpl.txt
7540_1g-6g_90_h.txt7540_30m-1g_90_hpl.txt
7540_1g-6g_90_v.txt7540_30m-1g_90_vpl.txt
7540_1g-6g_180_h.txt7540_30m-1g_180_hpl.txt
7540_1g-6g_180_v.txt7540_30m-1g_180_vpl.txt
7540_1g-6g_270_h.txt7540_30m-1g_270_hpl.txt
7540_1g-6g_270_v.txt7540_30m-1g_270_vpl.txt
