Connect a 52-6585A pushbutton module to a 52-6509A GPIO push button module

The 52-6585A is a passive pushbutton module that can be mounted into a furniture without a direct connection to a controller. This module has to be connected using GPIO to a 52-6509A module via a 1:1 ribbon cable. A 1 meter ribbon cable is included with 52-6585A.

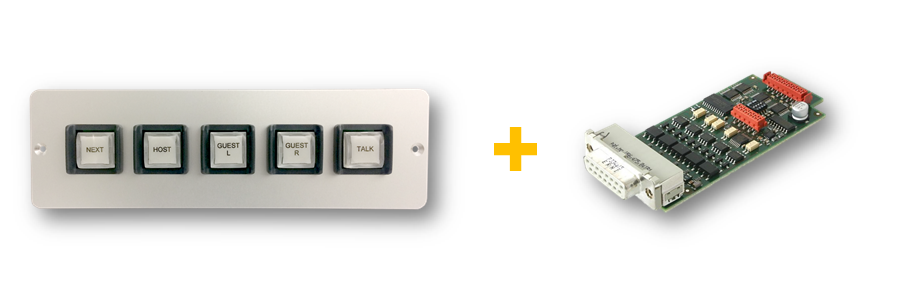

52-6585 Pushbutton Module, 5 buttons (with example button labels) and 52-6509 GPIO push button module

The 52-6509A can be mounted into 52/MX console frames, 52/MX table installation frames or Q-panels.

Power

The 52-6585A is powered by the 52-6509A.

Important
The 52-6585A is designed for use with 52-6509A only. It is not recommended to use other GPIO or power supply to avoid damage by using wrong voltage.
