Administration

If you want to limit access to certain functions, you have to create authorisation groups. You should also create user accounts and assign the users to the authorisation groups.

In the project tree under Global Control, select the sub-section Administration to edit the user rights.

In the Authorisation tab you can see a list, which shows a maximum of 8 possible authorisation groups that are marked by a serial number Nr. Authorisation groups can neither be added nor deleted. You can type a name for each group in the Label box below the list.

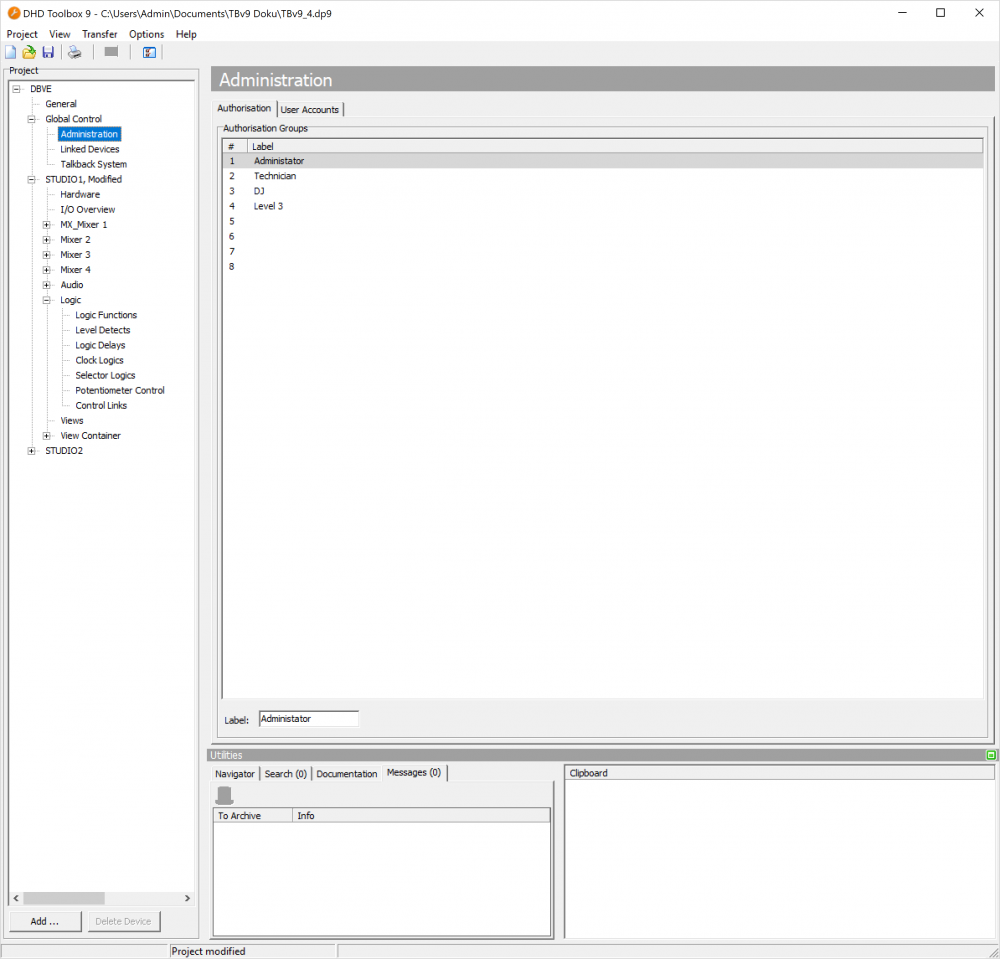

Authorisation; setting up Authorisation Groups.

Click on the User Accounts tab to create user accounts and assign them to authorisation groups. With the Add button in the User List area you can create up to 20 users. Click Remove User to delete a selected user from the list.

In the Edit User area, you can change several user settings. Enter a name for a user in the User Name box. Select the Display User Name check box to show the name of the logged in user in all OLED displays of the control modules.

For each user, you can add a password or a four-digit PIN code in the Password or PIN box. The password can contain uppercase letters, lowercase letters, numbers and additional characters, but only ASCII-letters. By entering the PIN code or username/password, the user has access to functions that are enabled for his user group.

Important
PIN code is deprecated and will be removed within the next versions. Use password instead.

Toolbox also generates a user token which you can use for WebApps. You can copy it to your clipboard by clicking Copy or generate a new user token by clicking Generate.

You can log-out the users automatically after a defined duration. After this duration the user has to log in again. Choose this duration from the Autolock drop-down menu. You can select 2, 5, 10, 15, 20 or 30 minutes or select (Off) to disable this feature.

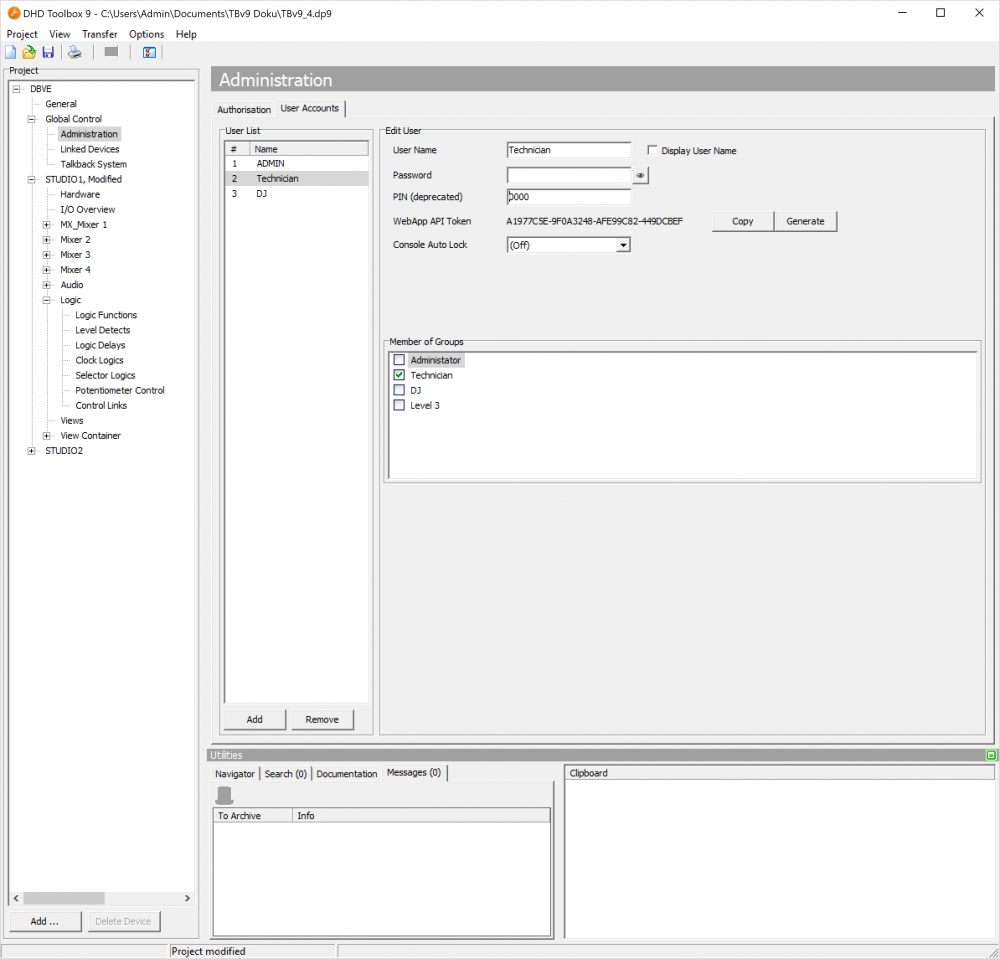

User Accounts, managing users.

In the Member of Groups area, you can see all configured authorisation groups. Select the check boxes in front of the group names to assign the currently selected user to one or more authorisation groups.

For detailed authorisation settings for each user group see Authorisation.
