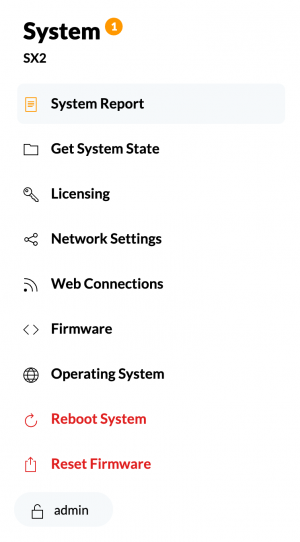

System App Menu
System App navigation is done with the menu bar on the left. In addition, it provides status information and login possibilities.
Menu Functions
System App notifications
Notifications are displayed as a number-badge after System title. The badge can turn orange (warning) and red (error). Clicking the badge will take you to system report page.
System Report
System Report will take you to System Report Page
Get System State
Get System State will download a full system state, including all files on the device and device information. This could be required for debugging and may be requestet by DHD support.
Important
This will cause all open WebApps connections of all clients to reload. Audio and hardware operation are not affected.
Note
Configuration and Maintenance user rights required.
Licensing
Licensing will take you to Licensing Page. This page displays all licenses stored in the device and allows you to enter new licenses.
Note
Without Configuration and Maintenance user rights, you can only view licenses, but not enter new licenses or redeem vouchers.
Network Settings
Network Settings will take you to Network Settings Page.
Note
Without Configuration and Maintenance user rights, you can only view network settings, but not edit them.
Web Connections
Web Connections will take you to Web Connections Page. Here you can see and manage all connected Web Apps clients.
Note
Connection Management user rights required.
Firmware
Firmware will take you to Firmware Page.
Operating System
Operating System will take you to Firmware Page.
Reboot System
This will restart OS, restart firmware and reload DSP. See Troubleshooting.
Warning
Audio will be interrupted!
Reset Firmware
This will reset the firmware, reload DSP and apply snapshot 0. See Troubleshooting.
Warning
Audio will be interrupted!
