User Interface
Main Window
The main window shows the log messages in a list. Under normal circumstances it is only needed during the configuration process. After the configuration is finished, the log messages should be reduced to a minimum to save the resources of the PC.

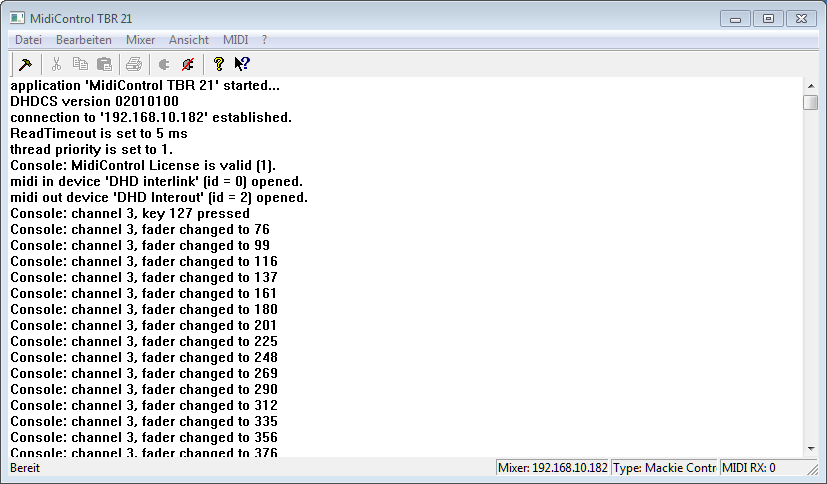

dbc MIDI control software main window
Toolbar
Via the toolbar it is possible to use some of the menu functions directly.
Toolbar of dbc MidiControl Software
Einstellungen - Opens the Einstellungen (settings) window, wherein the configuration of the MidiControl software can be done.
Connect - Establishes the connection to the mixing console.
Disconnect Interrupts the connection to the mixing console.
Info - Shows an about window.
Status Bar
The status bar at the bottom of the window shows information on the communication state.
Status Bar of dbc MidiControl Software
- Mixer - Shows the IP address of the mixing console.
- Type - Displays the type of the MIDI controller.
- MIDI RX - Shows the number of received MIDI commands.
- MIDI TX - Shows the number of transmitted MIDI commands.
- Mixer RX - Displays the number of received TCP/IP packets from the mixing console.
- Mixer TX - Displays the number of transmitted TCP/IP packets to the mixing console.
- Timecode - Shows the current time code.
