Connecting modules to the 52/XS Core
The control modules and I/O boxes have to be connected to the APC ports of the 52/XS Cores 52-18xx. It is important to connect the peripheral modules to the correct APC port.
Important
Use always shielded CAT5 or CAT6 ethernet cables (at least S/UTP, F/UTP or SF/UTP) to connect these modules to the XS core.

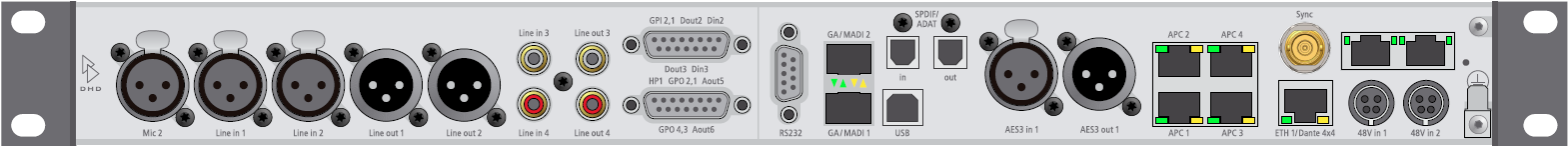

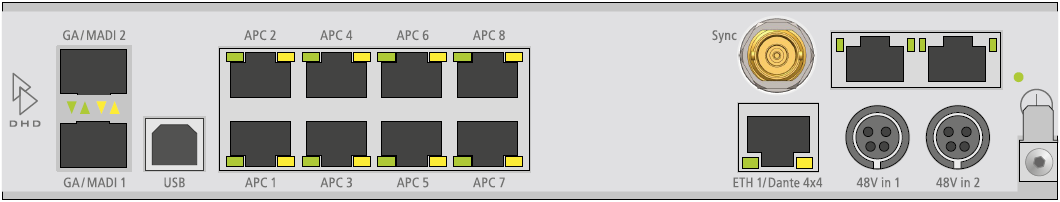

In the following table you can find the assignment of the control modules, I/O boxes, DeviceLinks and TFT/Touch displays to the APC ports.
| Name of the APC port | 52-1810 | 52-1830 |
|---|---|---|
| APC 1 | TFT/touch display (52-4018)1) | TFT/touch display (52-4018)2) |
| APC 2 | central control modul (52-1010, 52-1011) | central control module (52-1010, 52-1011) |
| APC 3 | fader module 1 (52-1020, 52-1021, 52-1024, 52-1025) | fader module 1 (52-1020, 52-1021, 52-1024, 52-1025) |
| APC 4 | fader module 2 (52-1020, 52-1021, 52-1024, 52-1025) | I/O box 1 / DeviceLink 1 |
| APC 5 | fader module 3 (52-1020, 52-1021, 52-1024, 52-1025) | n. a. |
| APC 6 | fader module 4 (52-1020, 52-1021, 52-1024, 52-1025) / I/O box 3 / DeviceLink 3 3) | n. a. |
| APC 7 | I/O box 2 / DeviceLink 2 | n. a. |
| APC 8 | I/O box 1 / DeviceLink 1 | n. a. |
Weblink
You find a PDF file with cabling examples in the 52/SX Download area at https://dhd.audio/product/521995g/.
Note
Make sure, that 52-1335 is selected at APC 8 and APC 7 at the Hardware page of the SXconfig software.

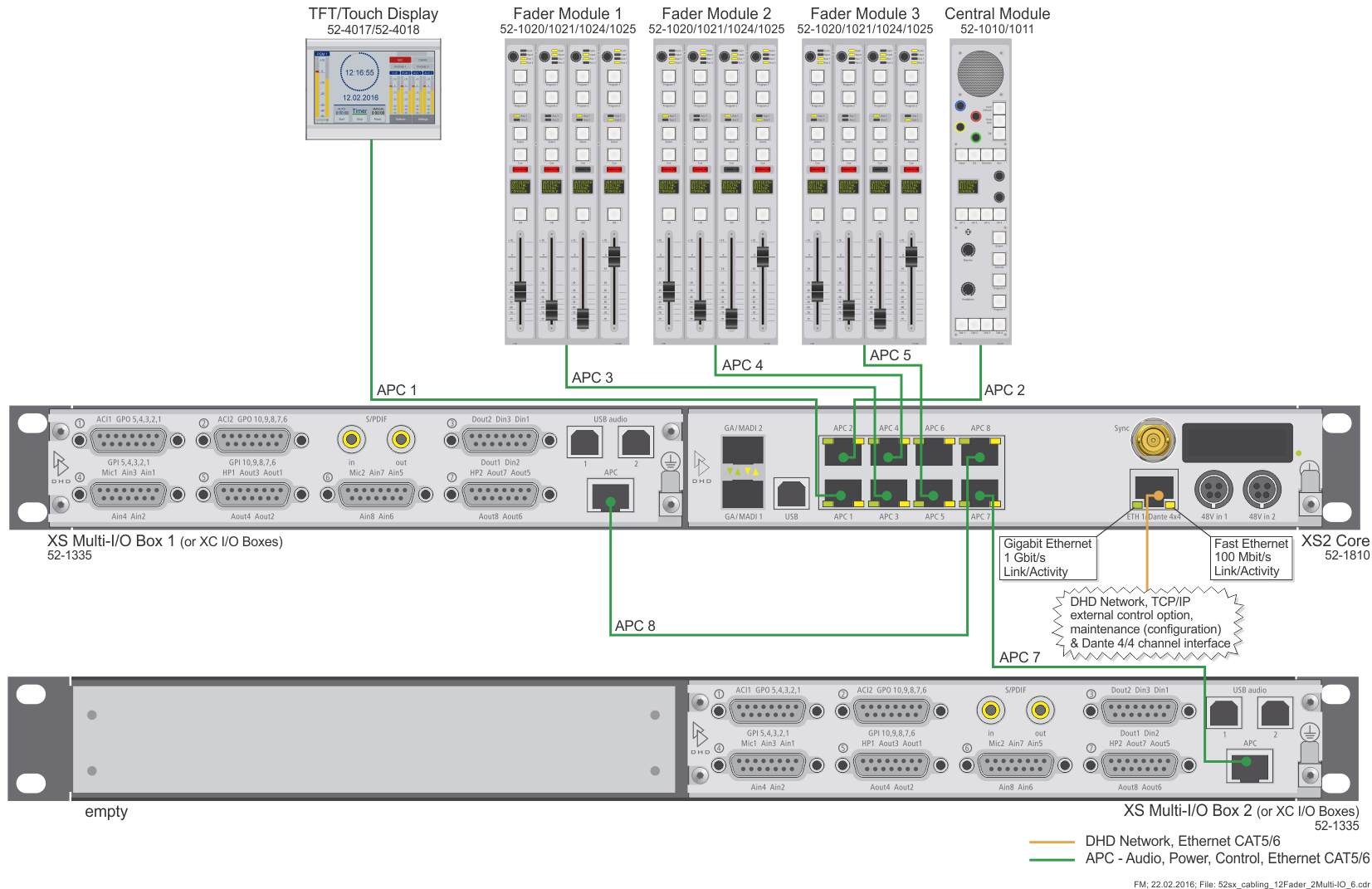

Example 12 Fader and 2 52/XS Multi-I/O Boxes
Important
Use minimum Firmware version 08-01-00 and SXConfig version 8-1-0-0 or the version on the CD supplied with the console, which may be a later version.

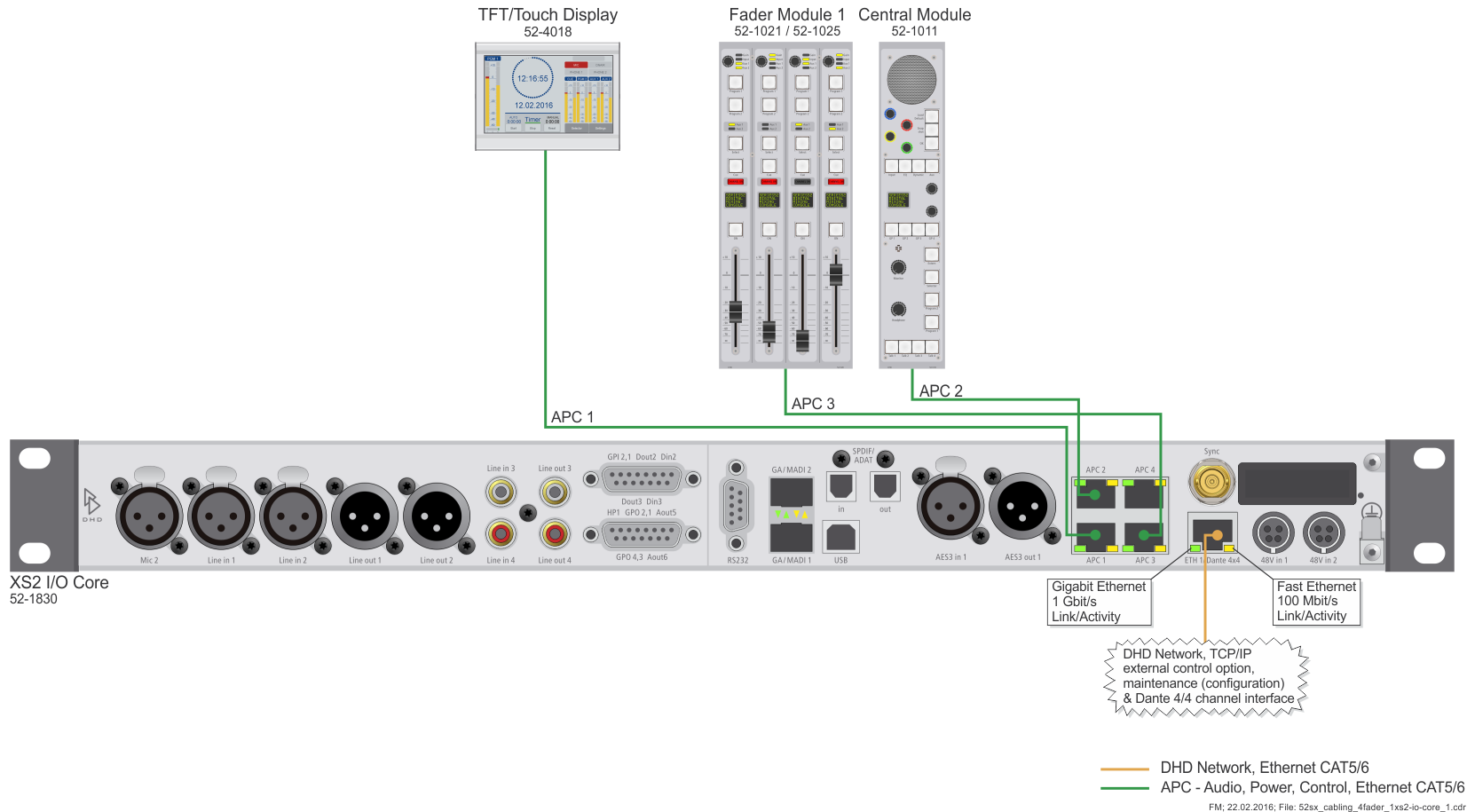

Example 4 Fader and 1 52/XS2 I/O core
Important
Use minimum Firmware version 08-01-00 and SXConfig version 8-1-0-0 or the version on the CD supplied with the console, which may be a later version.
