Buses

On the Buses page you can configure the settings for all buses that are available in the SX2 system.

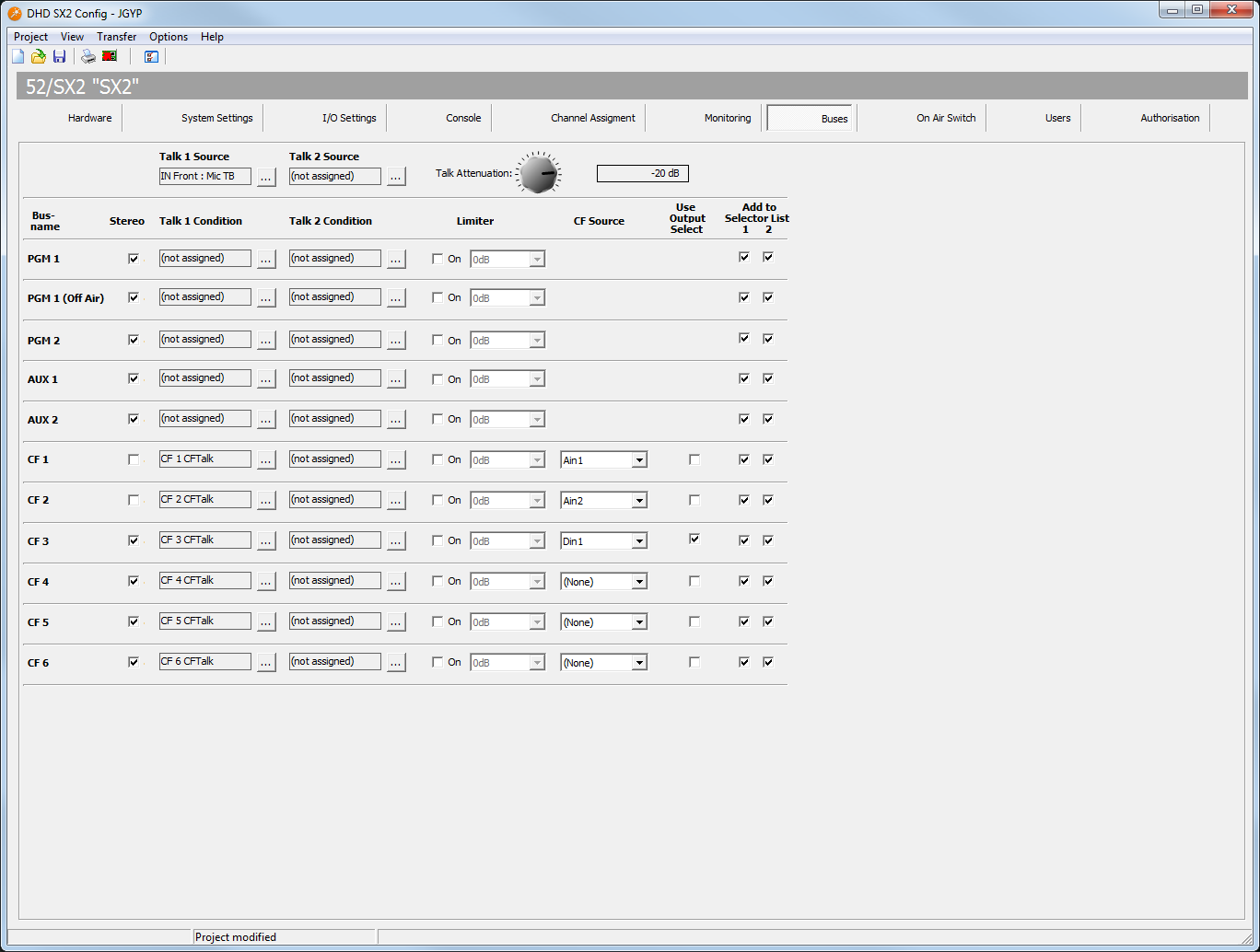

SX2Config Software - Buses

In the following tables, all options on this page are explained.

element	description
Talk 1 Source	Click the button, next to the `Talk 1 Source` box. The `Audio Sources` window opens. Select an audio source from the list and click assign. When the `Talk 1 Condition` logic becomes true, the `Talk 1 Source` is active on the corresponding bus.
Talk 2 Source	Click the button, next to the `Talk 2 Source` box. The `Audio Sources` window opens. Select an audio source from the list and click assign. When the `Talk 2 Condition` logic becomes true, the `Talk 2 Source` is active on the corresponding bus.
Talk Attenuation	When a Talk Source is active, the busses can be attenuated between `0 dB` and `Off` in steps of 1 dB. Use the `Talk Attenuation` selector to change the attenuation value.

column	description
Bus name	Here you can find the name of the bus for which you configure the following settings.
Stereo	Select this check box, if the bus is stereo. Clear the check box to configure the bus as mono.
Talk 1 Condition	Click the button, next to the `Talk 1 Condition` box. The `Logic Sources` window opens. Select a logic source from the list and click assign. When this logic source becomes true, the `Talk 1 Source` is active on the corresponding bus.
Talk 2 Condition	Click the button, next to the `Talk 2 Condition` box. The `Logic Sources` window opens. Select a logic source from the list and click assign. When this logic source becomes true, the `Talk 2 Source` is active on the corresponding bus.
Limiter	Select the `On` check box to activate the limiter for this bus. Select a threshold value from the drop-down menu (-30 dB to 20 dB).
CF Source	Select from the drop-down menu an audio source for your clean feed signal
Use Output select	Select this check box to enable source selection for the alternative clean feed signal.
Add to Selector List 1	Select this check box to add a bus to source list 1. This bus will be available in the monitor source list, which is assigned to the `SEL` key on 52-5614 central module.
Add to Selector List 2	Select this check box to add a bus to source list 2. This bus will be available for monitoring in the `Monitor 2` list, which is available in the `Monitor Selector` view of the TFT/Touch Display.
