Fader modules
The 52-5620 is the fader module of the SX2. It always contains a 10“ TFT display that is separated into variable functional areas. There can be up to 2 fader modules, so a total of 16 faders is possible.

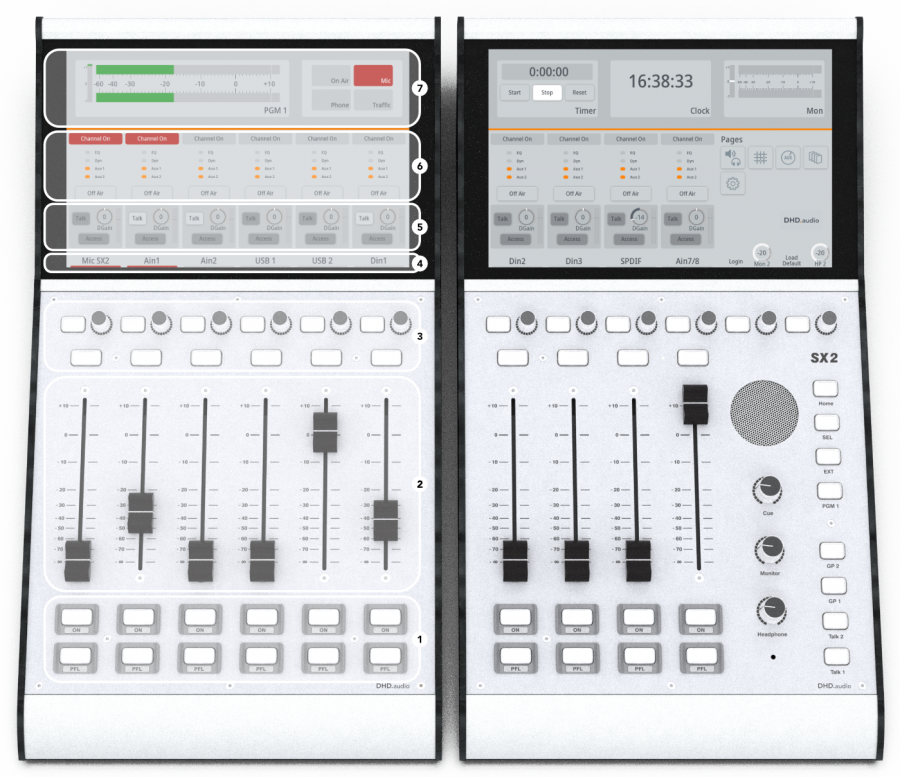

1. Key section
These keys can be freely configured in their funtionality, color and behaviour. See SX2 Configuration - Console. Once you have chosen which functions you assigned to the keys, you can label them using the delivered stickers.
2. Fader section
Use the fader to control the audio level from -∞ to 0 dB with an additional gain of +10 dB.
3. Key and Encoder section
The encoder always serves as gain encoder. If analog gain is available for the selected input, press the encoder once to toggle between DGain and AGain settings.
The keys can be freely configured in their funtionality, color and behaviour. See SX2 Configuration - Console.
Key and Encoder function and status are mirrored and labeled within the TFT display (5).
4. Channel Name and On/Off status.
5. Counterpart to area 3
In this area, key and encoder function are labeled and mirrored. Can also be used to control the assigned functionality via touch input.
6. Fader view area
Depending on the configured Fader view, this section can vary. See SX2 Configuration - Console.
7. Overbridge central area
Can show various views. See SX2 Configuration - Console.
